Overview

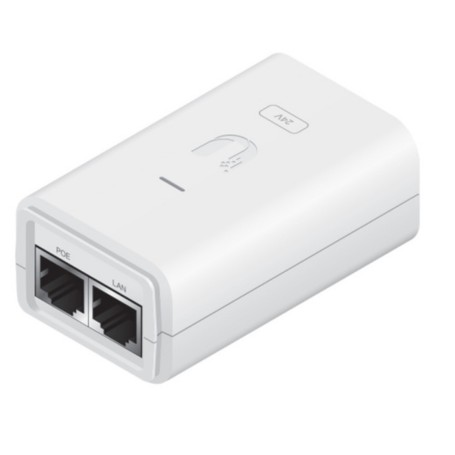

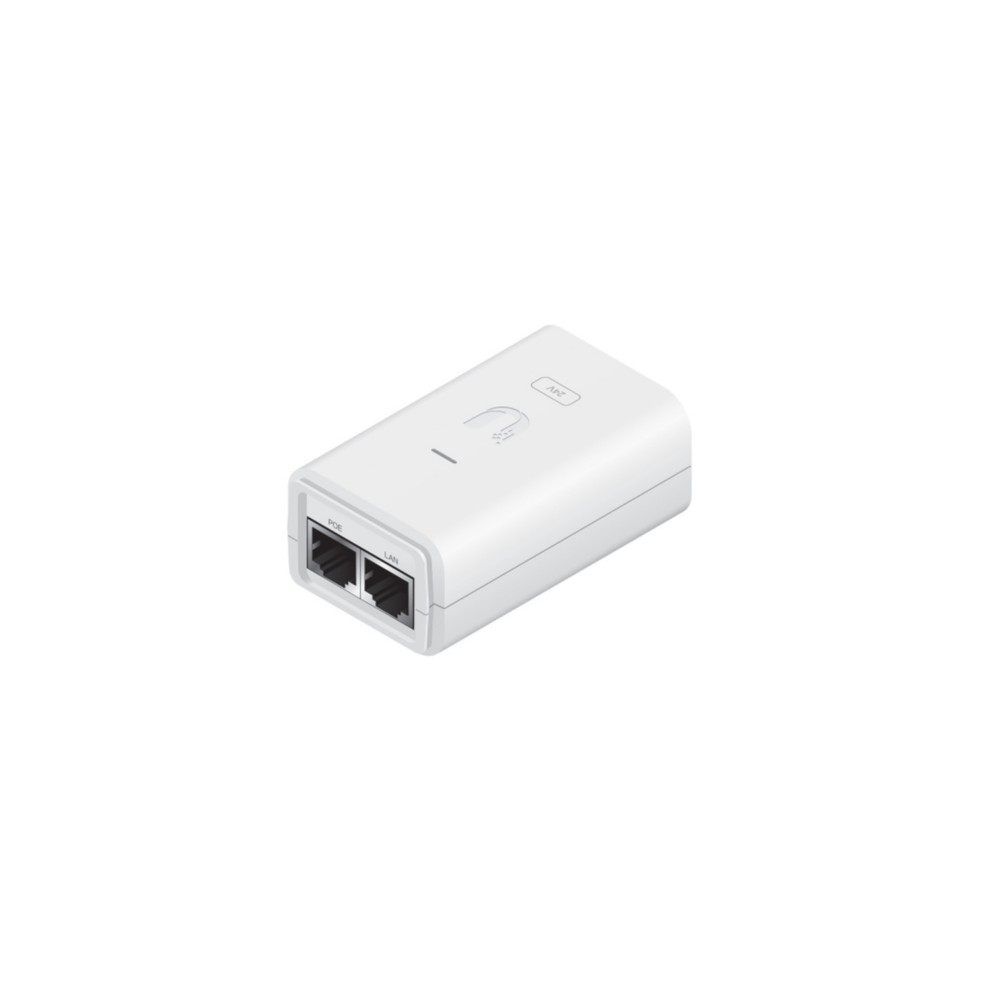

The Ubiquiti POE-48-24W-WH is a 48V DC, 24W PoE adapter designed to provide power and Ethernet connectivity to compatible PoE devices. It accepts 100–240V AC input and delivers 48V DC at 0.5A through a shielded RJ45 PoE connection.
Power Delivery
The adapter provides 48V DC at 0.5A, corresponding to a 24W output rating. Power is delivered using 2-pair PoE on pins 4 and 5 positive and pins 7 and 8 negative. The adapter does not support 4-pair powering.
Protection
POE-48-24W-WH incorporates differential-mode and common-mode surge protection, with 11V data clamping and 60V power clamping. Ubiquiti specifies a maximum power surge discharge of 1500A for an 8/20 μs waveform and a peak data pulse current of 36A for a 10/1000 μs waveform.
Connectivity
The adapter uses a shielded RJ45 socket for the data input and PoE output connection. The POE-48-24W-WH does not include a Gigabit LAN port or LAN activity indicator.
Key Features
- 48V DC at 0.5A PoE output
- 24W output power rating
- 2-pair PoE using pins 4, 5 and 7, 8
- Differential-mode and common-mode surge protection
- 100–240V AC universal input
Applications
The POE-48-24W-WH is intended for powering compatible Ubiquiti PoE equipment from a standard AC power source where a 48V, 24W PoE adapter is required. Verify the connected device's voltage, power, and PoE requirements before installation.
DC Supplies Product Note
This model is the non-Gigabit version of Ubiquiti's 48V 24W PoE adapter family. The exact POE-48-24W-WH model provides no Gigabit LAN port and uses 2-pair powering, so it should not be substituted with the visually similar POE-48-24W-G variant when those specifications matter.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | POE-48-24W-WH |
|---|
| Product Type | PoE Adapter |
|---|
| Output Voltage | 48V DC |
|---|
| Output Current | 0.5A |
|---|
| Output Power | 24W |
|---|
| Rated Input Voltage | 100–240V AC, 50/60Hz |
|---|
| Input Current | 0.6A at 120V AC; 0.4A at 240V AC |
|---|
| Powering Method | 2-pair PoE |
|---|
| Positive Power Pins | 4, 5 |
|---|
| Negative Power Pins | 7, 8 |
|---|
| 4-Pair Powering | Not supported |
|---|
| Data IN / PoE | Shielded RJ45 socket |
|---|
| Gigabit LAN Port | No |
|---|
| LAN Activity Indicator | No |
|---|
| Remote Reset Capability | No |
|---|
| Reset Button | No |
|---|
| Efficiency | 80% or higher |
|---|
| Output Ripple | 1% maximum |
|---|
| Switching Frequency | 65 kHz |
|---|
| Line Regulation | ≤3% |
|---|
| Load Regulation | ≤5% |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Surge Protection | Differential and common mode |
|---|
| Data Clamping Protection | 11V |
|---|
| Power Clamping Protection | 60V |
|---|
| Maximum Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Shunt Capacitance | <5 pF data |
|---|
| Response Time | <1 ns |
|---|
| Dimensions | 93 × 59 × 33 mm |
|---|
| Weight | 145 g |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Storage Temperature | -30 to 70°C |
|---|
| Operating Humidity | 35–95% noncondensing |
|---|
| Certifications | CE, FCC, IC, UL |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What voltage does the POE-48-24W-WH provide?
It provides 48V DC at 0.5A, with a 24W output rating.
Does this adapter support Gigabit Ethernet?
No. The POE-48-24W-WH has no Gigabit LAN port and is specified as the non-Gigabit model.
How does the POE-48-24W-WH deliver power?
It uses 2-pair powering through pins 4 and 5 for positive power and pins 7 and 8 for negative power.
What AC input does it support?
The adapter accepts 100–240V AC at 50/60Hz.
Does the adapter provide surge protection?
Yes. It provides differential-mode and common-mode surge protection, along with separate data and power clamping protection.
