Overview

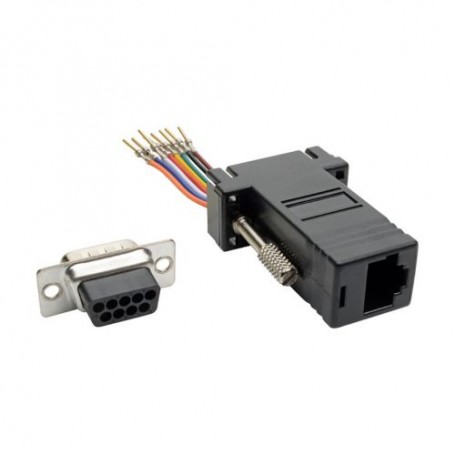

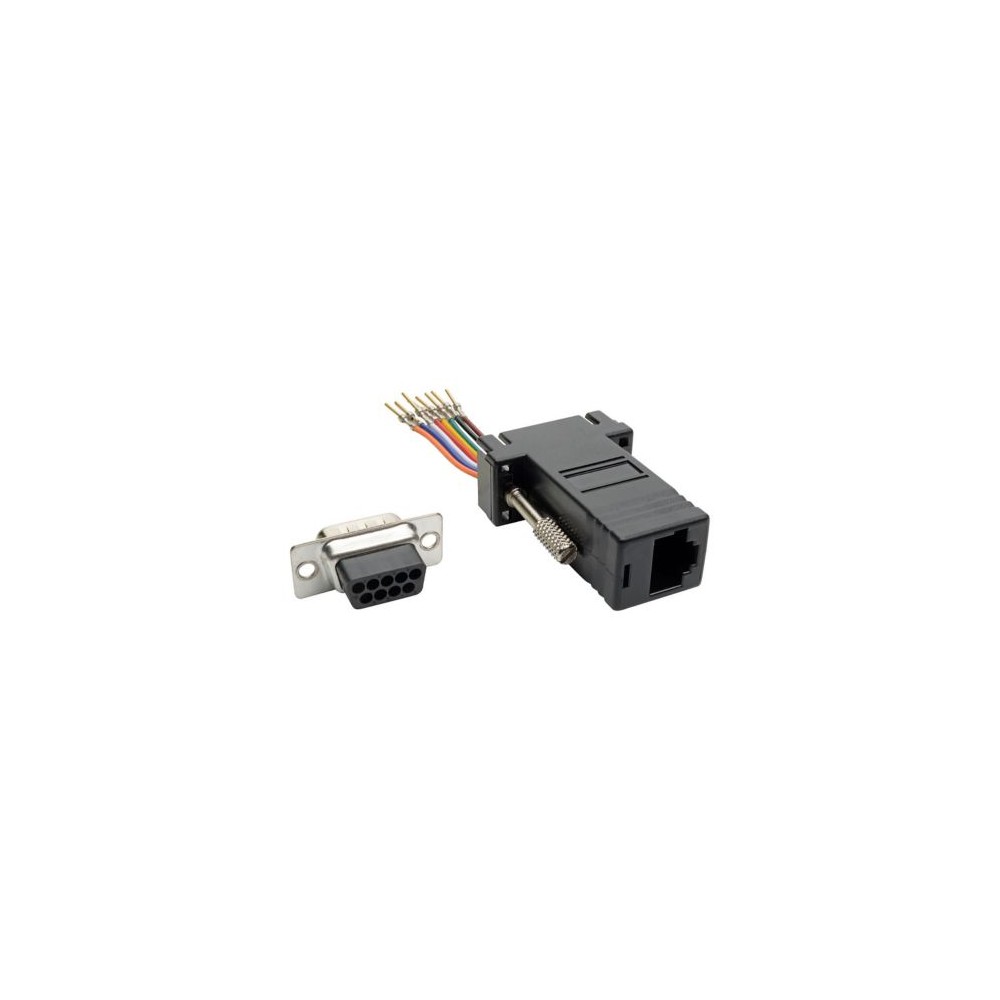

The Eaton Tripp Lite P440-89FM is a DB9-to-RJ45 modular serial adapter designed to connect equipment with a DB9 serial interface to twisted-pair Cat5e or Cat6 cabling. It converts a DB9 male connection to an RJ45 female connection and is intended for customized RS-232, RS-422, and RS-485 serial connections.
The adapter can be used with terminals, serial printers, modems, point-of-sale equipment, and other compatible serial devices. It provides a modular connection method that allows supported serial signals to be carried over readily available twisted-pair patch cabling.
Connectivity
The P440-89FM has a 9-pin DB9 male serial connector on one end and an 8-position RJ45 female connector on the other. The RJ45 connection is intended for twisted-pair Cat5e or Cat6 cabling as part of a compatible serial wiring configuration.
This is a modular serial adapter rather than a standard Ethernet network adapter. The RJ45 connector is used as the physical interface for compatible RS-232, RS-422, or RS-485 serial wiring and should not be treated as providing Ethernet functionality.
Configuration and Installation
The adapter is designed for customized serial cable configurations. Its color-coded wiring helps identify the individual conductors when building or troubleshooting a compatible serial connection. Slotted, knurled thumbscrews provide a secure attachment to the DB9 interface without requiring a separate screwdriver.
Applications
The P440-89FM can be used to connect compatible DB9 serial equipment to twisted-pair cabling in installations involving terminals, serial printers, modems, POS equipment, and other serial devices. It can also be used where a customized RS-232, RS-422, or RS-485 connection is required.
Key Features
- Converts a DB9 male serial connection to an RJ45 female connection
- Supports customized RS-232, RS-422, and RS-485 serial connections
- Compatible with readily available Cat5e and Cat6 patch cables
- Color-coded wiring simplifies serial connection identification and troubleshooting
- Slotted, knurled thumbscrews provide secure DB9 attachment
DC Supplies Product Note
The RJ45 connector on the P440-89FM is used for serial signaling and does not make this adapter an Ethernet networking device. Before installation, verify the required RS-232, RS-422, or RS-485 pinout and wiring configuration for the equipment being connected.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | P440-89FM |
| Product Type | Modular Serial Adapter |
| Adapter Type | DB9 to RJ45 Serial Adapter |
| Serial Interface | RS-232, RS-422, RS-485 |
| Connector 1 | DB9 Male, 9-pin |
| Connector 2 | RJ45 Female, 8-position |
| Compatible Cabling | Cat5e / Cat6 twisted-pair cable |
| Wiring | Color-coded |
| Mounting Hardware | Slotted, knurled thumbscrews |
| Product Color | Black |
| Applications | Terminals, serial printers, modems, POS and other serial devices |
| Package Contents | P440-89FM DB9 to RJ45 Modular Serial Adapter |
| RoHS | Compliant |
| Warranty | Lifetime limited warranty |
FAQs
What connectors does the P440-89FM have?
The adapter has a 9-pin DB9 male serial connector and an 8-position RJ45 female connector.
What serial standards does it support?
The P440-89FM is designed for customized RS-232, RS-422, and RS-485 serial connections.
Can the RJ45 port be used as an Ethernet connection?
No. The RJ45 connector is used as the physical interface for compatible serial signaling. The P440-89FM is a serial adapter, not an Ethernet network adapter.
What type of cable can be connected to the RJ45 side?
The manufacturer specifies compatibility with readily available Cat5e and Cat6 patch cables for suitable serial wiring configurations.
What equipment can this adapter connect?
It is designed for compatible terminals, serial printers, modems, POS equipment, and other serial devices requiring a DB9-to-RJ45 modular connection.
