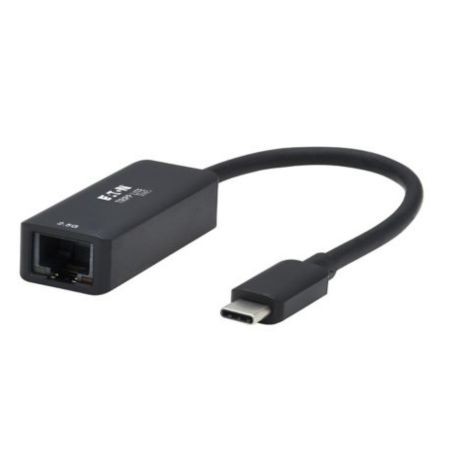

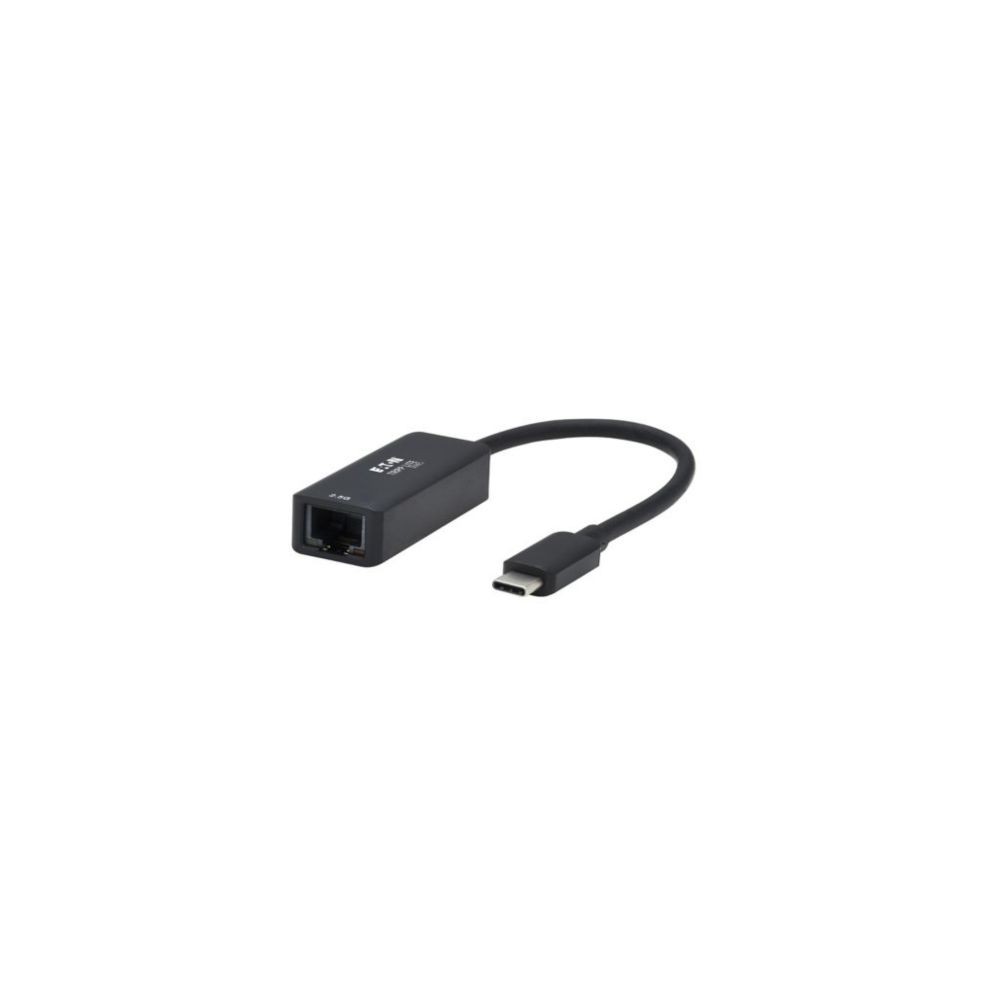

Eaton U436-06N-2P5 Tripp Lite USB C to 2 5G Ethernet Network Adapter
The Eaton U436-06N-2P5 is a USB-C to RJ45 Ethernet network adapter that adds wired networking to compatible laptops, tablets, and other devices through a USB-C or Thunderbolt 3/4 port. It supports Ethernet speeds up to 2.5 Gbps while remaining backward compatible with 10/100/1000 Mbps networks.
2.5 Gigabit Ethernet Connectivity
The adapter supports 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps Ethernet connections. Eaton specifies Cat8 cabling to achieve 2.5 Gbps Ethernet speeds; the adapter is also compatible with Cat5/5e, Cat6, and Cat6a cabling for supported network speeds.
USB-C 3.2 Gen 1 Interface
The built-in USB-C male connector connects directly to a compatible USB-C or Thunderbolt host port. USB 3.2 Gen 1 provides the USB interface required for the adapter's Ethernet connectivity, while the bus-powered design eliminates the need for a separate power supply.
Automatic Network Features
The U436-06N-2P5 supports auto-negotiation, full-duplex operation, Wake-on-LAN, and twisted-pair crossover detection with auto-correction. An LED indicator provides network status information.
Key Features
- USB-C to RJ45 Ethernet network adapter
- Supports 10/100/1000 Mbps and 2.5 Gbps Ethernet
- USB 3.2 Gen 1 host interface
- Bus-powered with no external power supply required
- Supports Windows, macOS, Chrome OS, and Linux
DC Supplies Product Note
The U436-06N-2P5 is useful for newer laptops and tablets that lack a built-in RJ45 Ethernet port, providing a direct USB-C-to-network connection without requiring a larger USB-C docking station.
Typical Applications
- Laptops without built-in Ethernet
- USB-C workstations
- Mac and Windows computers
- Wired network access where Wi-Fi is unavailable or unsuitable
- 2.5GbE file-transfer and network environments
- Temporary wired connections at offices, classrooms, trade shows, and meeting spaces
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U436-06N-2P5 |
| Product Type | USB-C to 2.5G Ethernet Network Adapter |
| Host Connector | USB-C Male |
| Network Connector | RJ45 Female |
| USB Specification | USB 3.2 Gen 1 |
| Maximum Ethernet Speed | 2.5 Gbps |
| Supported Ethernet Speeds | 10/100/1000 Mbps and 2.5 Gbps |
| Ethernet Type | 2.5GBase-T |
| Built-In Cable Length | 4.72 in (0.12 m) |
| Bus Powered | Yes |
| External Power Supply | Not Required |
| Auto-Negotiation | Supported |
| Full Duplex | Supported |
| Auto MDI/MDIX | Supported |
| Wake-on-LAN | Supported with user-supplied software |
| Operating Systems | Windows, macOS, Chrome OS, Linux |
| Compatible Host Interfaces | USB-C, Thunderbolt 3/4 |
| Recommended Cable for 2.5 Gbps | Cat8 |
| LED Indicator | Yes |
| Color | Black |
| UPC | 037332272706 |
Package Contents
1 x Eaton Tripp Lite U436-06N-2P5 USB-C to 2.5G Ethernet Network Adapter
1 x Quick Start Guide
Frequently Asked Questions
What does the U436-06N-2P5 do?
The U436-06N-2P5 adds a wired RJ45 Ethernet connection to a compatible computer or other host through USB-C.
Does the U436-06N-2P5 support 2.5 Gbps Ethernet?
Yes. It supports Ethernet speeds up to 2.5 Gbps and is backward compatible with 10/100/1000 Mbps networks.
What cable is recommended for 2.5 Gbps?
Eaton specifies Cat8 cabling to achieve 2.5 Gbps Ethernet speeds.
Does the adapter require an external power supply?
No. The U436-06N-2P5 is USB bus-powered and does not require a separate power adapter.
What operating systems are supported?
The manufacturer lists Windows, macOS, Chrome OS, and Linux. Chrome OS and some Linux configurations may require driver installation.
Can it connect to a Thunderbolt port?
Yes. Eaton specifies compatibility with USB-C or Thunderbolt 3/4 host ports.
