Detailed Specifications

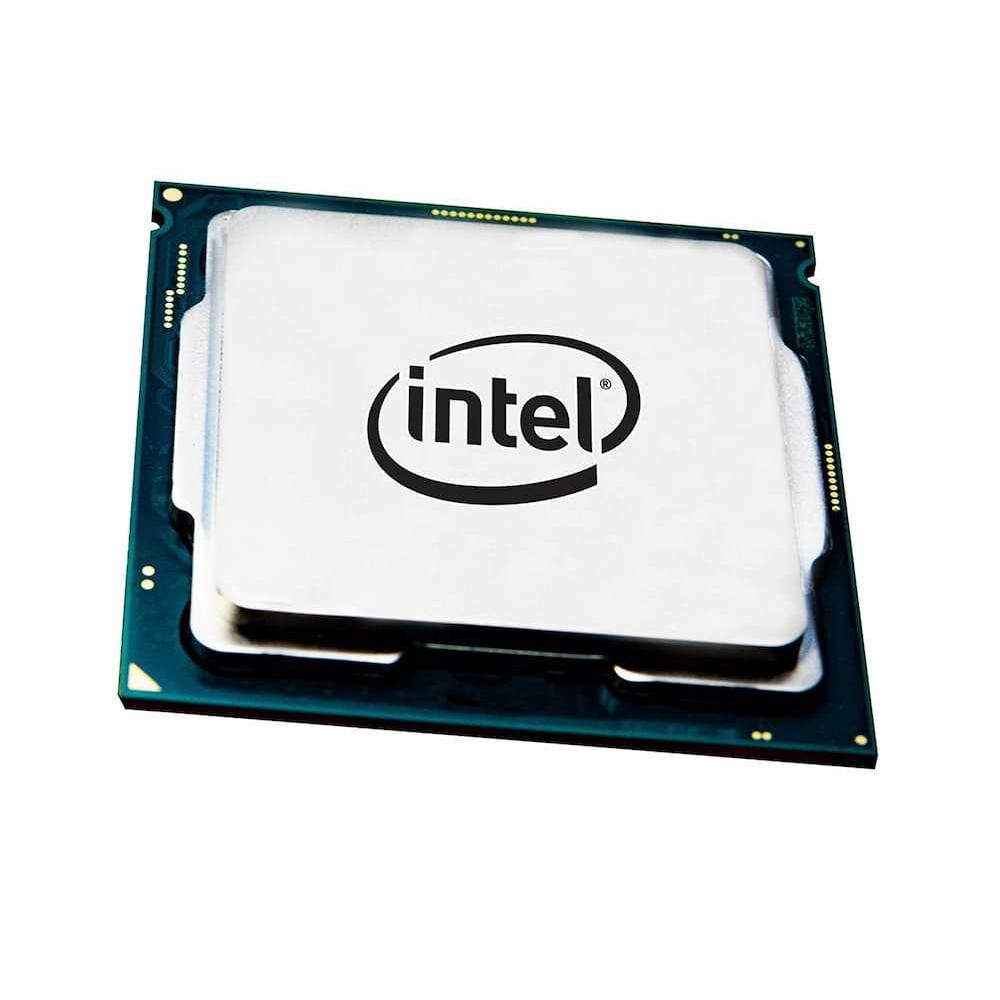

Intel BX80684I79700 - Core i7-9700 9th Gen Desktop Processor
Overview :
The Intel Core i7-9700 is a 9th generation desktop processor with 8 cores and 8 threads, built on 14nm Coffee Lake architecture . It operates at a base frequency of 3.0 GHz and boosts up to 4.7 GHz via Turbo Boost 2.0 technology . This processor is designed for mainstream desktop users, system integrators, and enterprise workstations requiring reliable multi-core performance for productivity applications, content creation, and light gaming.
The processor features 12MB of Intel Smart Cache and supports dual-channel DDR4-2666 memory . Integrated Intel UHD Graphics 630 runs at 350 MHz base and 1.2 GHz maximum dynamic frequency, supporting up to three simultaneous displays with resolutions up to 4096x2304@60Hz over DisplayPort . The processor includes Intel vPro and Trusted Execution Technology for enterprise security and manageability.
Deployment requires an LGA1151 socket motherboard based on Intel 300 Series chipsets (B360, H310, H370, Q370, Z370, Z390) . The 65W TDP includes a thermal solution (PCG 2015C) in the box . This processor is NOT suitable for: LGA1151 v1 (6th/7th gen) motherboards, DDR3 memory systems, overclocking (non-K SKU), or workloads requiring hyper-threading (i7-9700 has 8 threads, not 16).
Key Features :
8 Cores / 8 Threads with 12MB Intel Smart Cache
3.0 GHz base frequency, 4.7 GHz max Turbo
LGA1151 socket compatible with Intel 300 Series chipsets
Integrated Intel UHD Graphics 630 with 4K support
65W TDP with boxed thermal solution included
Specifications :
| Specification | Detail |
|---|
| Brand | Intel |
| Part Number | BX80684I79700 |
| Product Type | Desktop Processor |
| Generation | 9th Gen (Coffee Lake Refresh) |
| Core Count | 8 |
| Thread Count | 8 |
| Base Frequency | 3.0 GHz |
| Max Turbo Frequency | 4.7 GHz |
| Socket | LGA 1151 (300 Series chipsets) |
| Cache | 12 MB SmartCache |
| Memory Support | DDR4-2666, Dual Channel |
| Memory Max Size | 128 GB |
| Integrated Graphics | Intel UHD Graphics 630 |
| Graphics Base Clock | 350 MHz |
| Graphics Max Clock | 1.20 GHz |
| Max Displays Supported | 3 |
| TDP | 65 W |
| Lithography | 14 nm |
| Thermal Solution Included | PCG 2015C (65W) |
| Max Temperature | 100°C |
| vPro Support | Yes |
| Launch Date | Q2'19 |
