Detailed Specifications

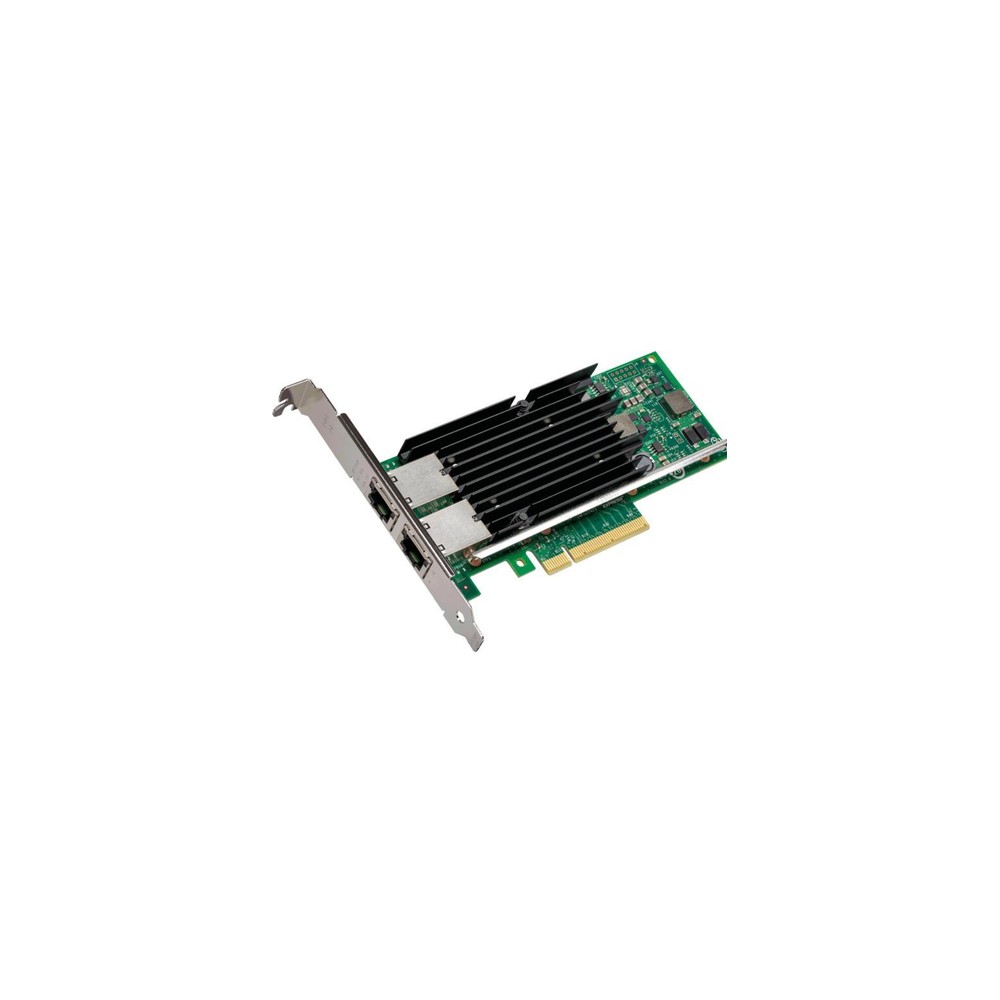

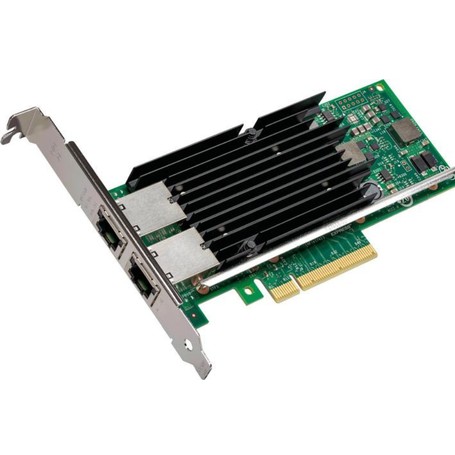

Intel X540T2BLK Network Adapter
Overview :
The Intel X540T2BLK is a dual-port 10 Gigabit Ethernet (10GbE) converged network adapter engineered for high-density data centers, enterprise server farms, and cloud storage layouts. Distributed as a bulk bare card configuration, this network interface card addresses bandwidth-intensive deployment problems by bringing cost-effective 10GBASE-T copper connectivity straight into traditional rack frameworks. It serves as a drop-in asset for system administrators transitioning architectures away from legacy 1GbE arrays.
Powered by the single-chip Intel Ethernet Controller X540, this network adapter incorporates both the MAC and PHY layers into one silicon engine to significantly drop total electrical consumption and heat production.It operates dual RJ-45 copper interfaces capable of driving line-rate 10 Gbps data streams across standard Cat6 or Cat6A twisted-pair infrastructure up to distances of 100 meters.The onboard logic embeds Intel Virtualization Technology for Connectivity (Intel VT-c), optimizing system data routes by processing Single Root I/O Virtualization (SR-IOV) and Flexible Port Partitioning (FPP) tasks directly on the card to free up host processor cycles.
The controller supplies native unified networking support, processing standard LAN traffic along with hardware-accelerated software iSCSI and Open FCoE data packets simultaneously over a single copper line. Do not attempt integration into legacy PCI architectures or physical motherboards lacking an x8 or x16 PCIe bus layer. This adapter demands standard system air-flow patterns to cool its attached aluminum heat sink layout under persistent multi-port line-rate transport.
Key Features :
Dual-port 10GBASE-T RJ-45 pins run line-rate 10 Gbps up to 100 meters.
Single-chip Intel X540 controller cuts internal power usage and thermal footprints.
Unified networking architecture converges LAN, iSCSI, and FCoE paths seamlessly.
Flexible Port Partitioning assigns 64 virtual ports for clean QoS isolation.
Full backward compatibility with 1000BASE-T switches allows smooth 10G migration.
Specifications :
| |
| Brand | Intel |
| Part Number | X540T2BLK |
| Product Type | Network Adapter |
| Data Transfer Rate | 10 Gbps per port (10 Gigabit Ethernet) |
| Interfaces / Ports | 2 x 10GBASE-T RJ-45 Copper |
| Host Interface | PCI Express 2.1 x8 |
| Network Chipset | Intel Ethernet Controller X540 |
| Network Technology | 10GBASE-T, 1000BASE-T, 100BASE-TX |
| Cabling Support | RJ-45 Category 6 up to 55m / Category 6A up to 100m |
| Virtualization Support | SR-IOV, VMDq, Flexible Port Partitioning (FPP) |
| Unified Storage Support | Software iSCSI, Open FCoE |
| Form Factor | Plug-in Card (Low-Profile and Full-Height Bracket Included) |
| Typical Power Consumption | 17.4 W |
| Operating Temperature Range | 0 °C to 55 °C |
