Detailed Specifications

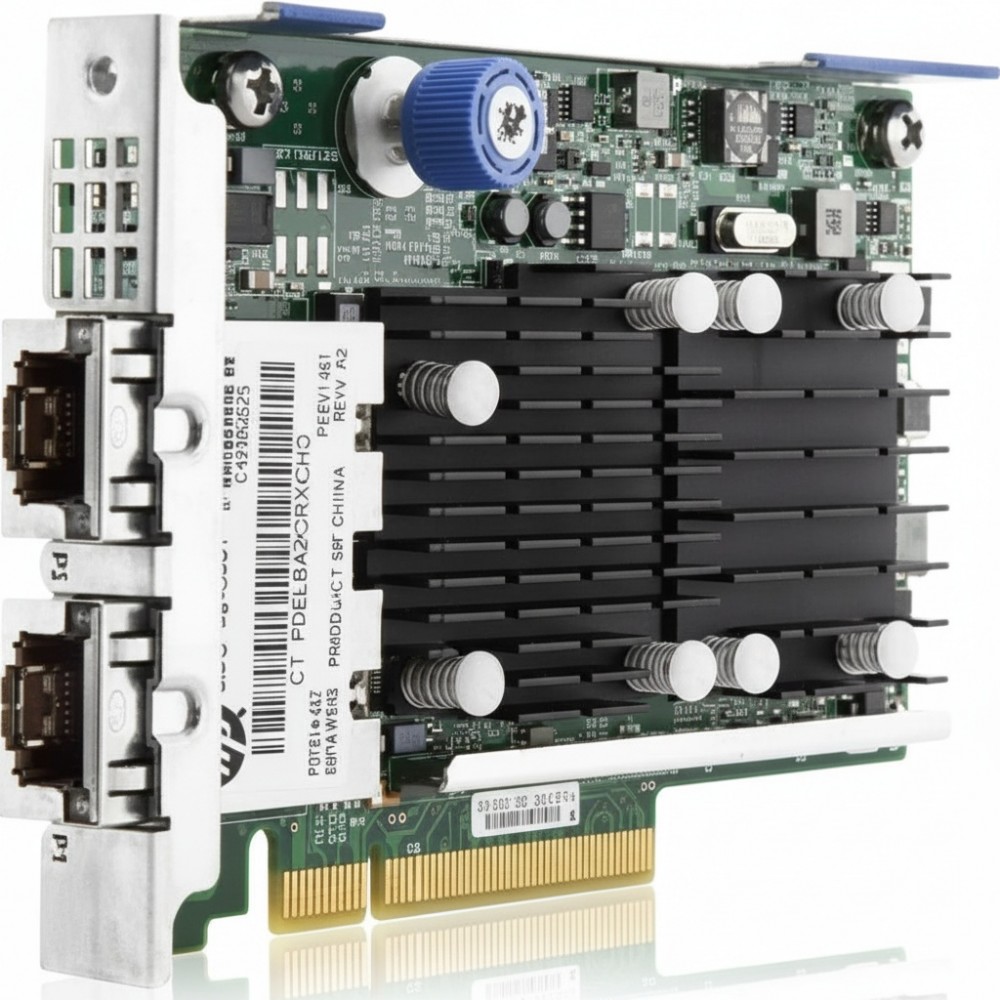

HPE 701534-001 FlexFabric 10Gb 2-Port 533FLR-T Adapter
Overview
The HPE 701534-001 is a dual-port 10 Gigabit Ethernet FlexibleLOM adapter designed for HPE ProLiant Gen8, Gen9, and Gen10 servers. It delivers full 10 Gb/s throughput on both RJ-45 ports using CAT6A twisted-pair cabling, making it ideal for high-bandwidth server and virtualized workloads. The adapter offers hardware offloads for enhanced efficiency, supports Network Partitioning (NPAR), and SR-IOV for virtualization environments. It fits into the FlexibleLOM slot in supported servers and integrates with HPE firmware and management frameworks for streamlined deployment.
Key Features
Two 10 GbBASE-T RJ-45 ports supporting up to 100 m over CAT6A
FlexibleLOM 533FLR-T form factor tailored for HPE ProLiant servers
Broadcom BCM57810S network processor for efficient offload
Support for virtualization: SR-IOV and NPAR
Advanced networking features: jumbo frames, tunnel offload, QoS
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 701534-001 |
| Product Type | FlexFabric 10Gb 2-Port 533FLR-T Adapter |
| Network Ports | 2 × 10 GbBASE-T RJ-45 |
| Host Interface | PCI Express 2.0 ×8 |
| Chipset / Network Processor | Broadcom BCM57810S |
| Cabling Requirement | CAT6A or better UTP |
| Maximum Cable Distance | Up to 100 meters |
| Offload Capabilities | TCP/UDP checksum, segmentation, VLAN tag offload, tunnel offload (VXLAN/NVGRE) |
| Virtualization Support | SR-IOV, NPAR |
| Onboard Memory | 256 MB |
| Frame Size Support | Jumbo frames up to ~9000 bytes |
| Temperature Range | 0 °C to 55 °C |
| Form Factor | FlexibleLOM card with both full-height and low-profile brackets |
