Detailed Specifications

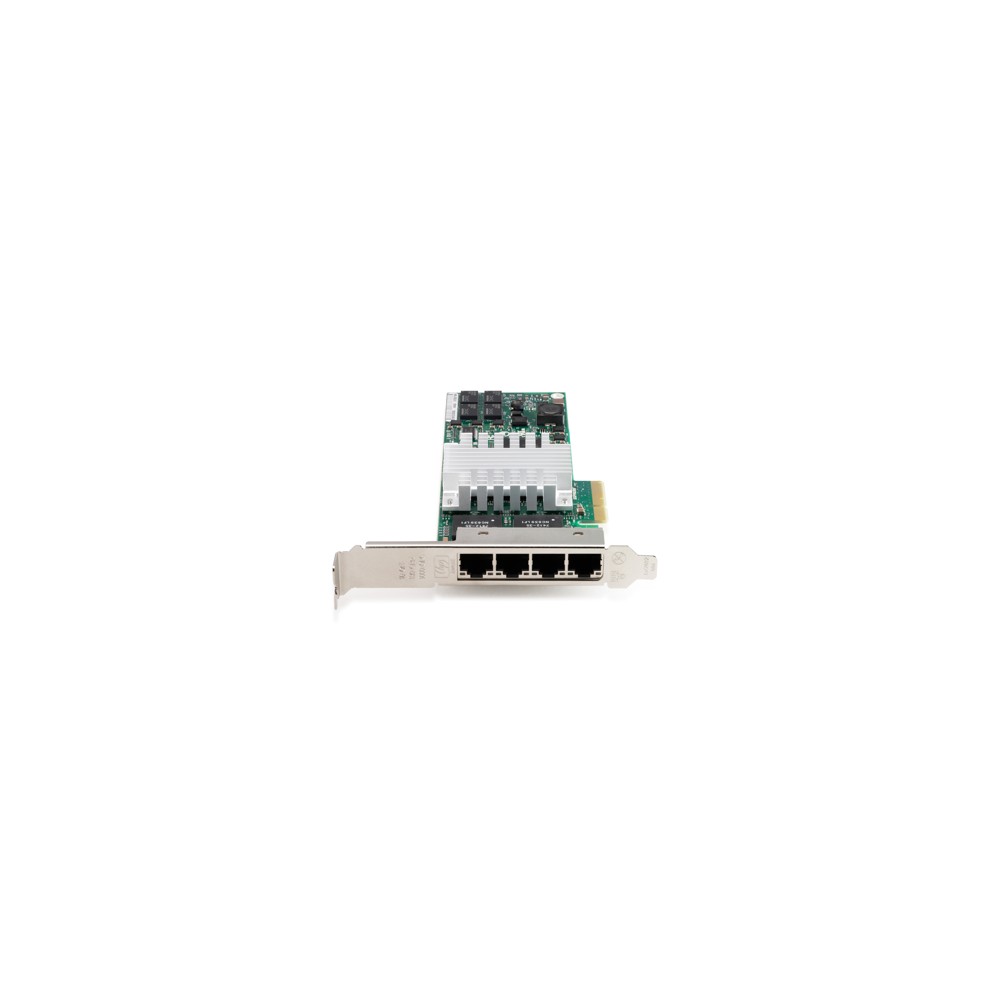

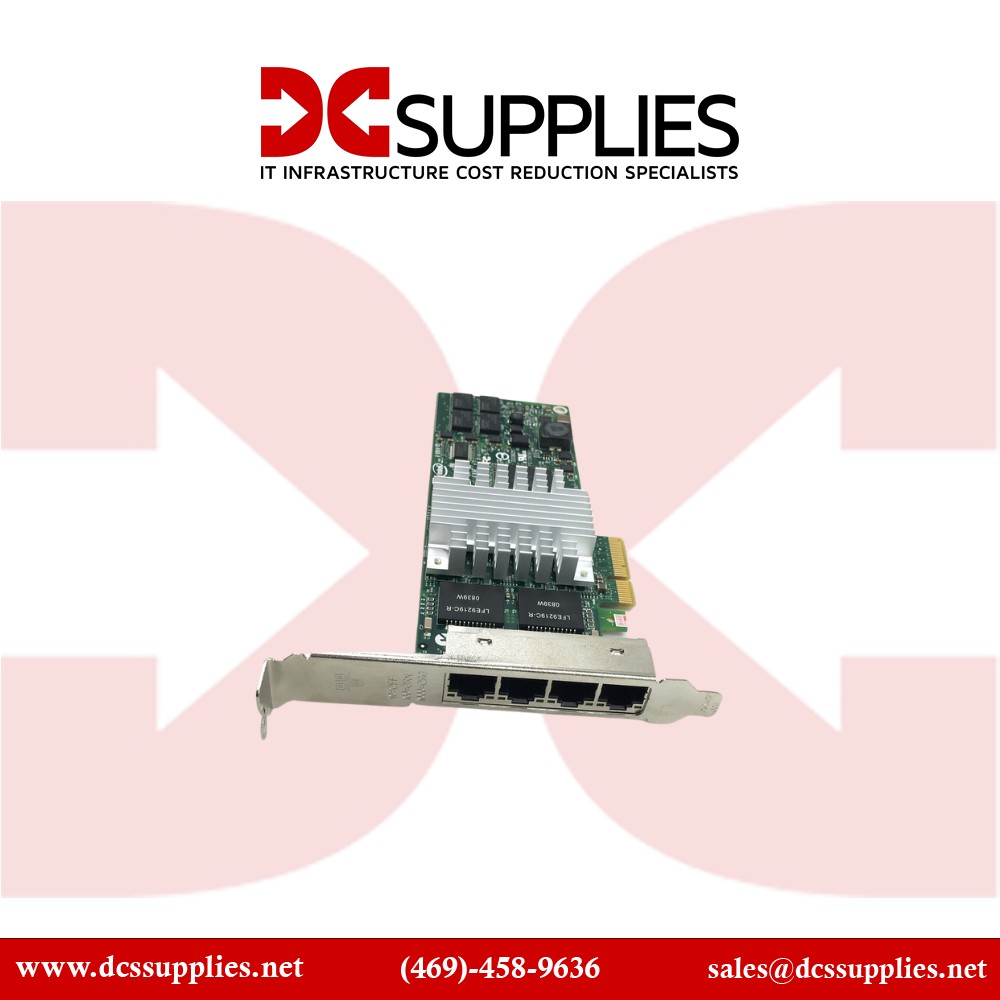

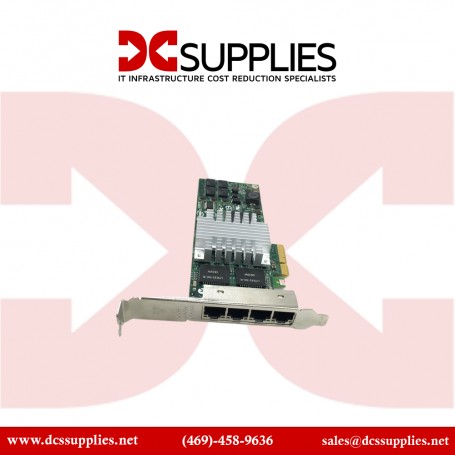

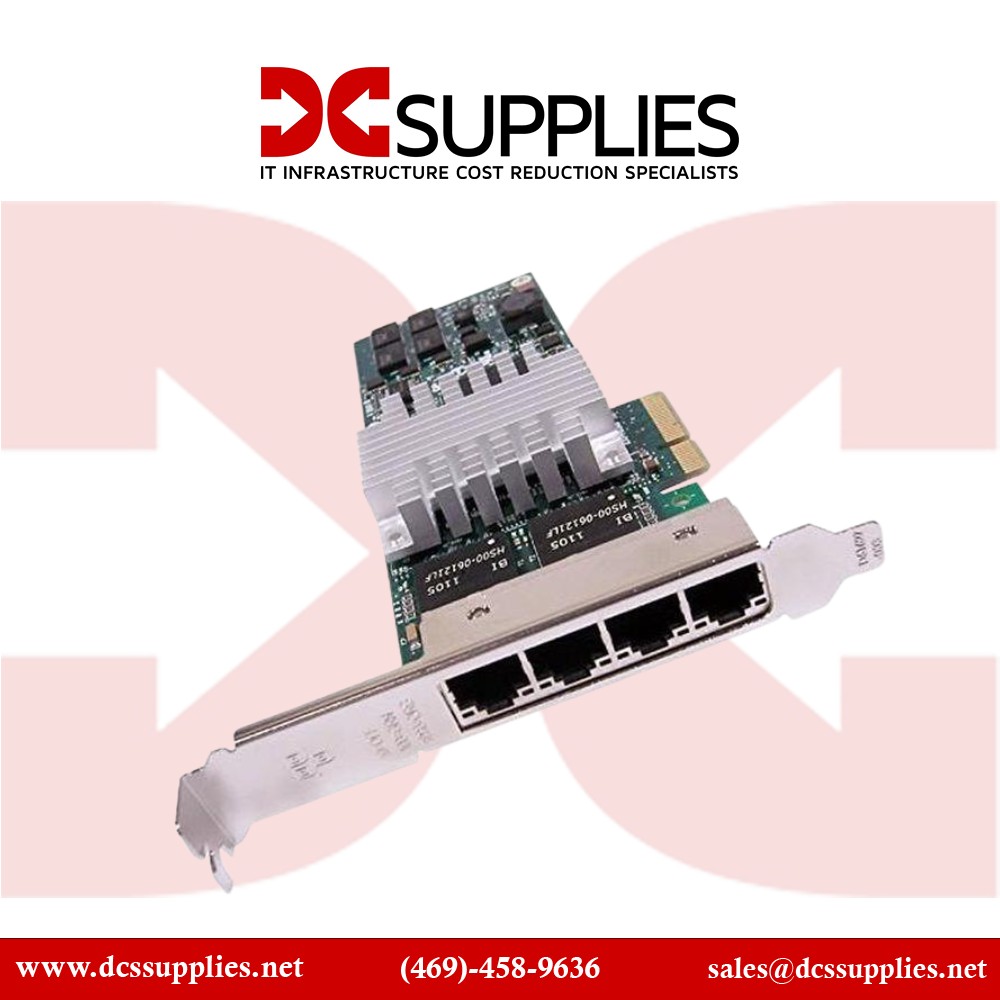

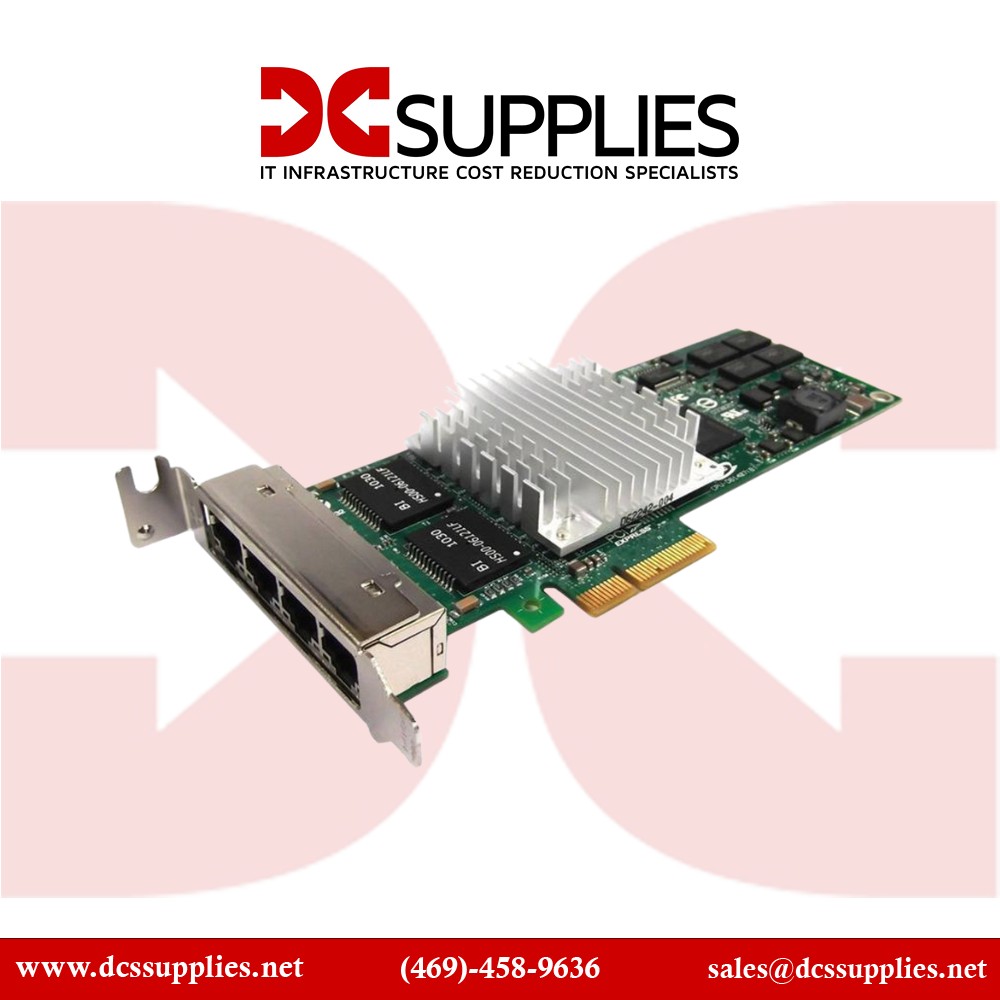

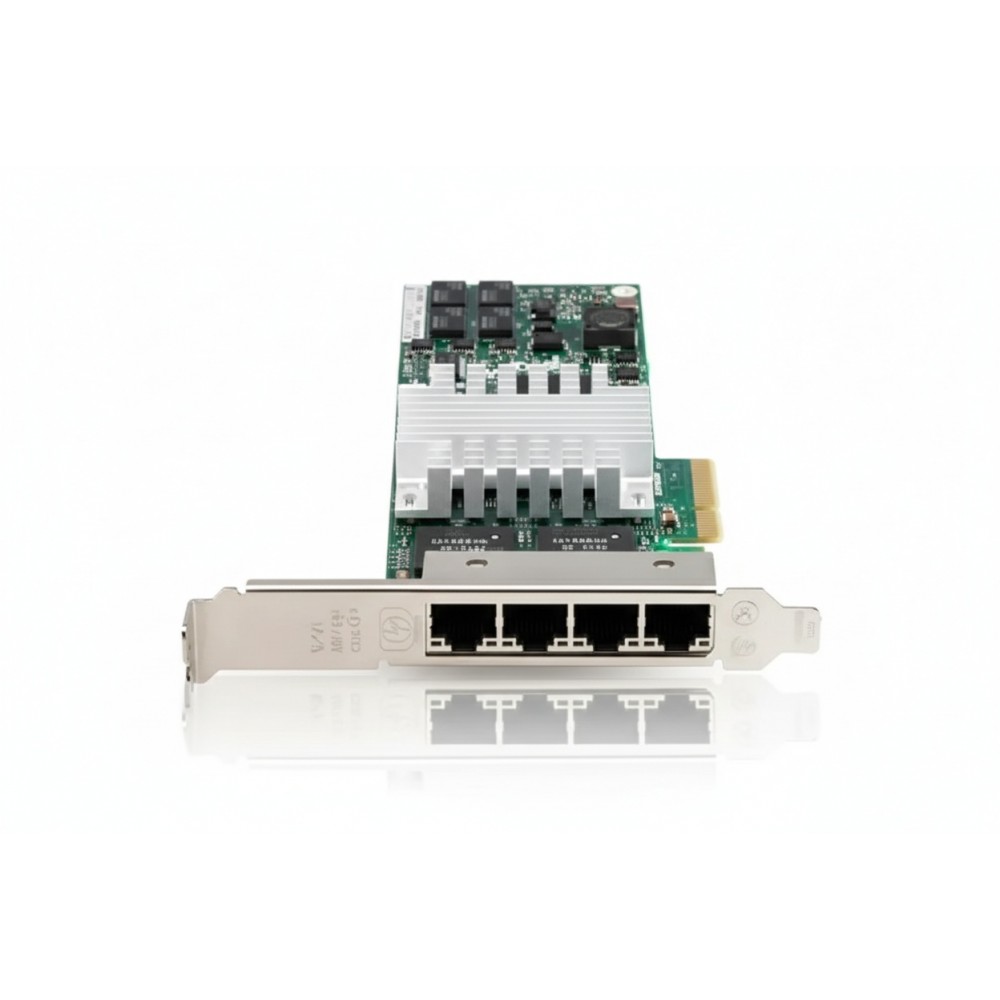

HPE EXPI9404PTL-HP 1 Gb 4-Port PRO/1000 PT Server Adapter
Overview
The HPE EXPI9404PTL-HP is a quad-port Gigabit Ethernet adapter built for server environments that demand high port density and efficient network connectivity. It uses Intel's PRO/1000 PT chipset, enabling reliable 10/100/1000 Mb/s performance across all four RJ-45 ports. The adapter supports PCI Express x4, allowing deployment even in slot-constrained servers. It's suited for virtualization, clustering, high-availability, and network segmentation scenarios. Compatibility is broad across HPE ProLiant servers and it supports advanced features like load balancing, fault tolerance and advanced flow control.
Key Features
Four RJ-45 ports supporting 10/100/1000 Mb/s Ethernet
Low-profile form factor with both full-height and half-height brackets
PCI Express x4 interface for flexible server slot placement
Intel 82571GB controller with hardware acceleration (I/OAT)
NIC teaming, load balancing, wake-on-LAN, and advanced flow control
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | EXPI9404PTL-HP |
| Product Type | Quad-Port Gigabit Ethernet Adapter |
| Network Ports | 4 × RJ-45 10/100/1000Base-T |
| Controller | Intel 82571GB |
| Host Interface | PCI Express 1.0a x4 |
| Data Rates | 10 / 100 / 1000 Mb/s per port |
| Cable Type | Category-5 UTP, 4-pair |
| Maximum Cable Length | 100 m for 100/1000 Mb/s |
| Power Consumption | ~12.1 W typical |
| Operating Temperature | 0 °C to 55 °C |
| Form Factor | Low-profile card, supports both bracket types |
| LED Indicators | Link/speed LEDs per port |
| Advanced Features | Load balancing, fault tolerance, VLAN tagging, I/OAT |
| Wake-on-LAN (WOL) | Supported |
| Compliance | IEEE 802.3u, 802.3ab, 802.1Q, 802.3ad, 802.3x |
