Detailed Specifications

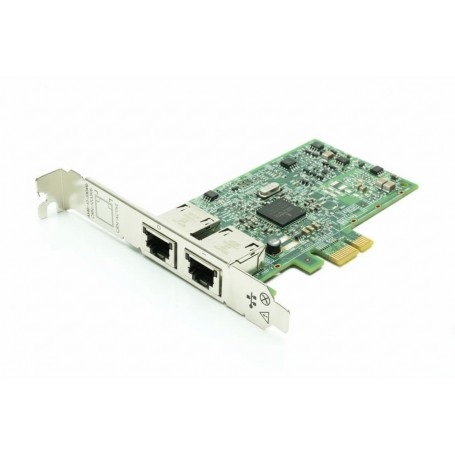

HPE 615730-001 Ethernet 1Gb 2-Port 332T Adapter
Overview
The HPE 615730-001 is a dual-port 1 Gigabit Ethernet adapter designed for server deployments requiring reliable copper networking. It uses a PCI Express 2.0 ×1 interface to provide full-duplex connectivity over standard RJ-45 cabling. This adapter supports virtualization offloads, jumbo frames, and energy efficient Ethernet, making it well-suited for virtualized, clustered or general-purpose server workloads. It fits in both low-profile and full-height PCIe slots, providing deployment flexibility.
Key Features
Two 10/100/1000 Mb/s RJ-45 ports
PCI Express 2.0 ×1 (compatible with x1/x4/x8 slots)
Broadcom BCM5720 chipset with hardware offloads
Virtualization support: VMware NetQueue, Microsoft VMQ
Energy-efficient Ethernet and jumbo frame capable
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 615730-001 |
| Product Type | Network Adapter |
| Model / Series | 332T |
| Host Interface | PCI Express 2.0 ×1 |
| Network Ports | 2 × RJ-45 10/100/1000Base-T |
| Chipset | Broadcom BCM5720 |
| Max Data Rate | 1 Gbps per port |
| Offload Features | Checksum offload, LSO, Large Receive Offload |
| Virtualization | NetQueue, VMQ |
| Standards Supported | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.3az, 802.1Q, 1588, 802.1as |
| Form Factor | Low-profile / Full-height bracket included |
| Power Consumption | ~2.1 W (idle) |
| Operating Temperature | 0 °C to 55 °C |
| Cable Support | Cat-5 or better, up to 100 m |
