Detailed Specifications

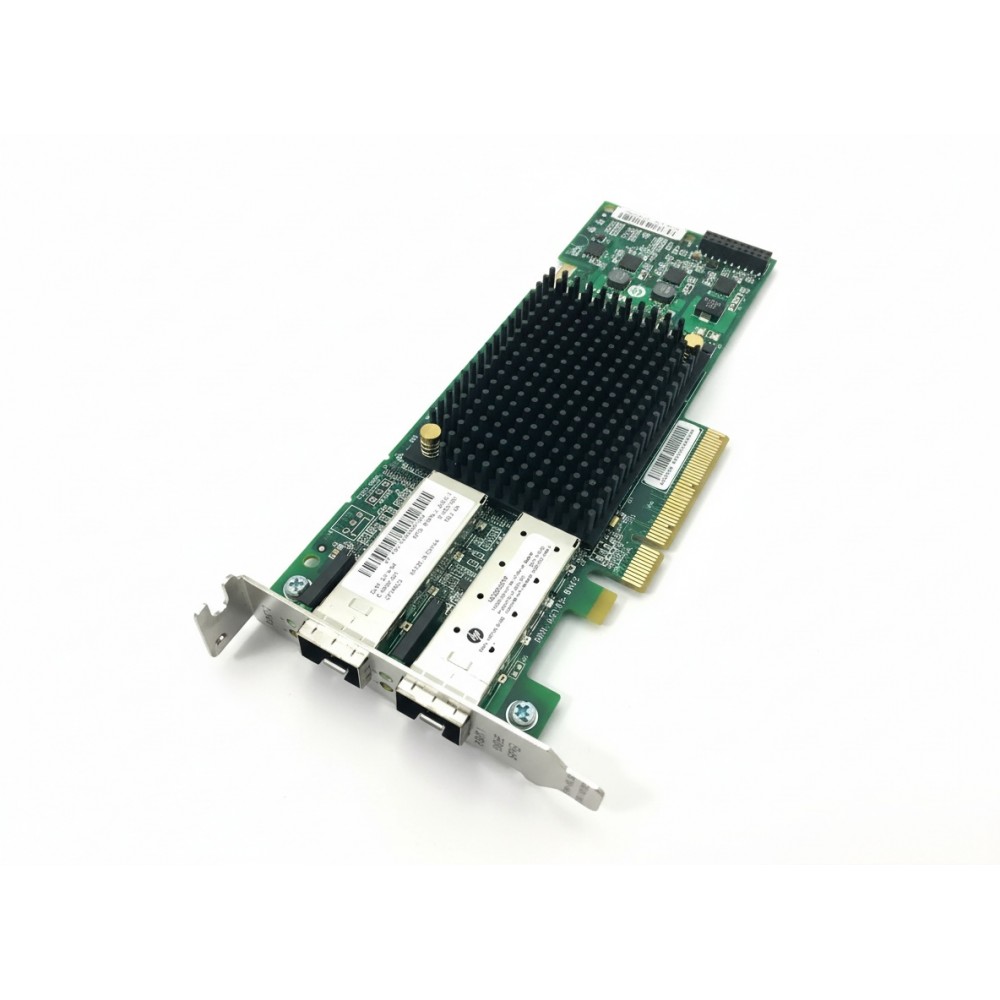

HPE 614201-001 NC552SFP Dual-Port 10GbE Network Adapter
Overview
The HPE 614201-001 is a dual-port 10 Gigabit Ethernet network adapter (SFP+) designed for HPE ProLiant servers. It uses a PCI Express 2.0 ×8 interface to deliver high throughput required for virtualization, clustering, or storage-area networking. It supports hardware offload features and high-performance networking functions to reduce CPU load and improve server efficiency. The card fits in both low-profile and full-height PCIe slots, making it adaptable to a wide range of server chassis.
Key Features
Two 10 Gb/s SFP+ ports for fiber or DAC connectivity
PCI Express 2.0 ×8 host interface for high bandwidth
Offloads for TCP/IP, VLAN, jumbo frames, and LSO
Supports SR-IOV for virtualization acceleration
Dual-profile brackets (low-profile and full-height) included
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 614201-001 |
| Product Type | Network adapter |
| Model / Series | NC552SFP |
| Host Interface | PCI Express 2.0 ×8 |
| Network Ports | 2 × 10 Gb SFP+ |
| Data Rate | 10 Gb/s per port, 20 Gb/s aggregate |
| Virtualization Support | SR-IOV |
| Offload Features | TCP/IP checksum, LSO, Jumbo Frames, VLAN tagging |
| Memory (On-Board) | 256 MB buffer RAM |
| Standards Compliance | IEEE 802.1Q/p, 802.3x, 802.3ad, 802.3ae |
| Form Factor | Plug-in PCIe card with low-profile/full-height brackets |
| PXE Support | Yes |
| IPv6 Support | Yes |
| Operating Temperature | 0 °C to 55 °C (typical spec) |
| Typical Use Case | Virtualization, server clustering, storage networking |
