Detailed Specifications

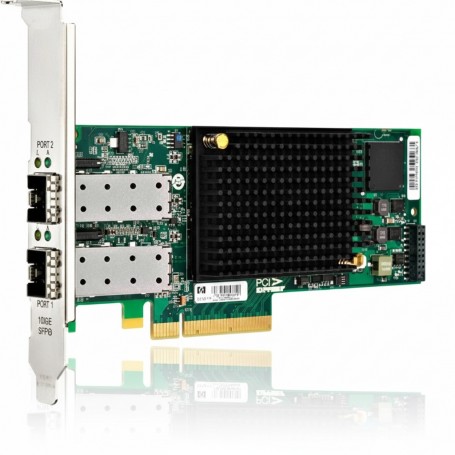

HPE CN1100E-HP 10Gb Dual-Port Converged Network Adapter
Overview
The HPE CN1100E-HP is a dual-port converged network adapter that combines 10-Gigabit Ethernet, FCoE and iSCSI transport on a single PCIe interface for server I/O consolidation. It provides hardware offloads for TCP/IP, iSCSI and FCoE traffic, reducing CPU load and improving throughput in virtualized and storage-intensive environments. The adapter fits HPE ProLiant servers requiring reliable 10 Gb connectivity and unified network-storage transport. It is suited for data-center deployments where efficiency, cable reduction and simplified I/O architecture are priority requirements.
Key Features
Dual 10 Gb SFP+ ports supporting Ethernet and FCoE
Hardware offload for TCP/IP, iSCSI and FCoE traffic
Supports Data Center Bridging for lossless Ethernet
PCIe 2.0 ×8 interface for high throughput
Jumbo-frame support up to 9,000 bytes
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | CN1100E-HP |
| Product Type | Converged Network Adapter (CNA) |
| Network Ports | 2 × 10 Gb SFP+ |
| Host Interface | PCI Express 2.0 ×8 |
| Supported Protocols | Ethernet, iSCSI, FCoE |
| Offload Capabilities | TCP/IP stateless, TOE, iSCSI, FCoE |
| Data Center Bridging | IEEE 802.1Qbb, 802.1Qaz, 802.1Qau |
| Jumbo Frame Support | Up to ~9,000 bytes |
| Boot Support | PXE 2.0 |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity | 5% to 95% non-condensing |
| Form Factor | Low-profile and full-height bracket included |
| Power Consumption | ~9 W typical |
| Compliance | RoHS, FCC Class A, CE |
