Detailed Specifications

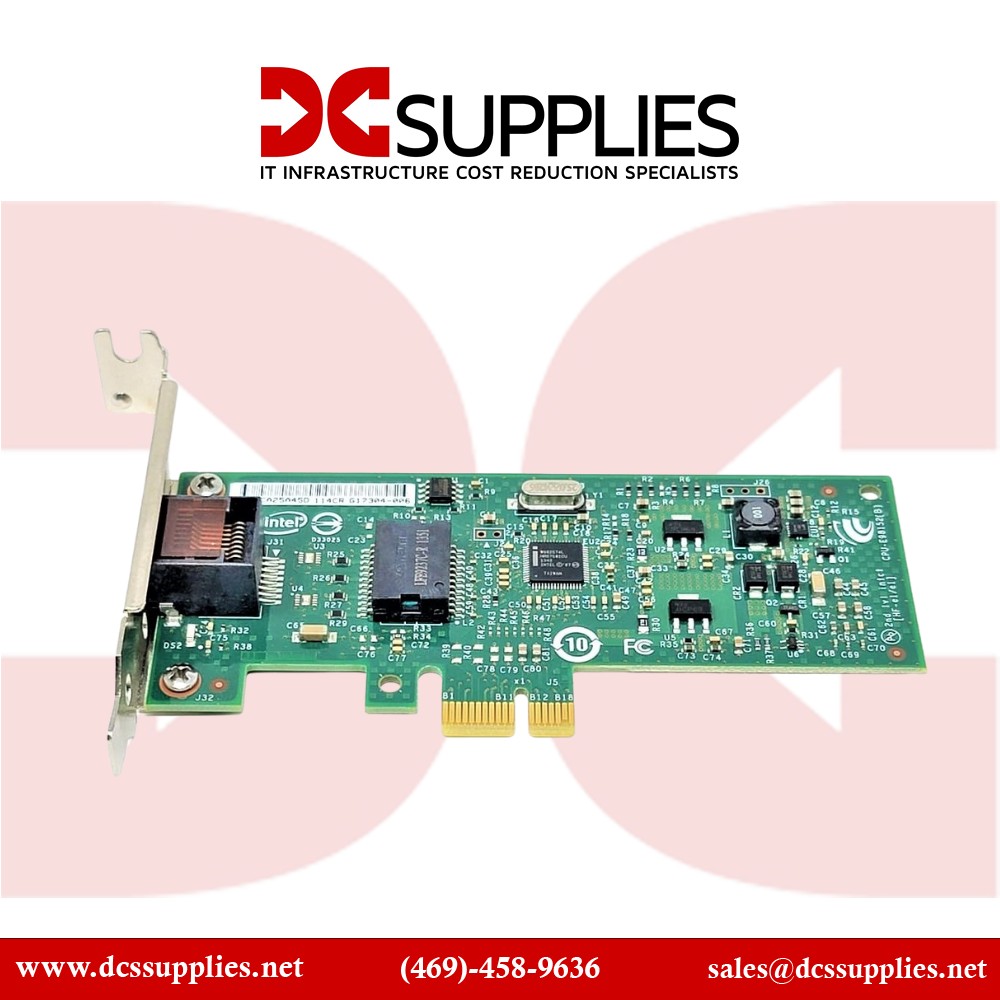

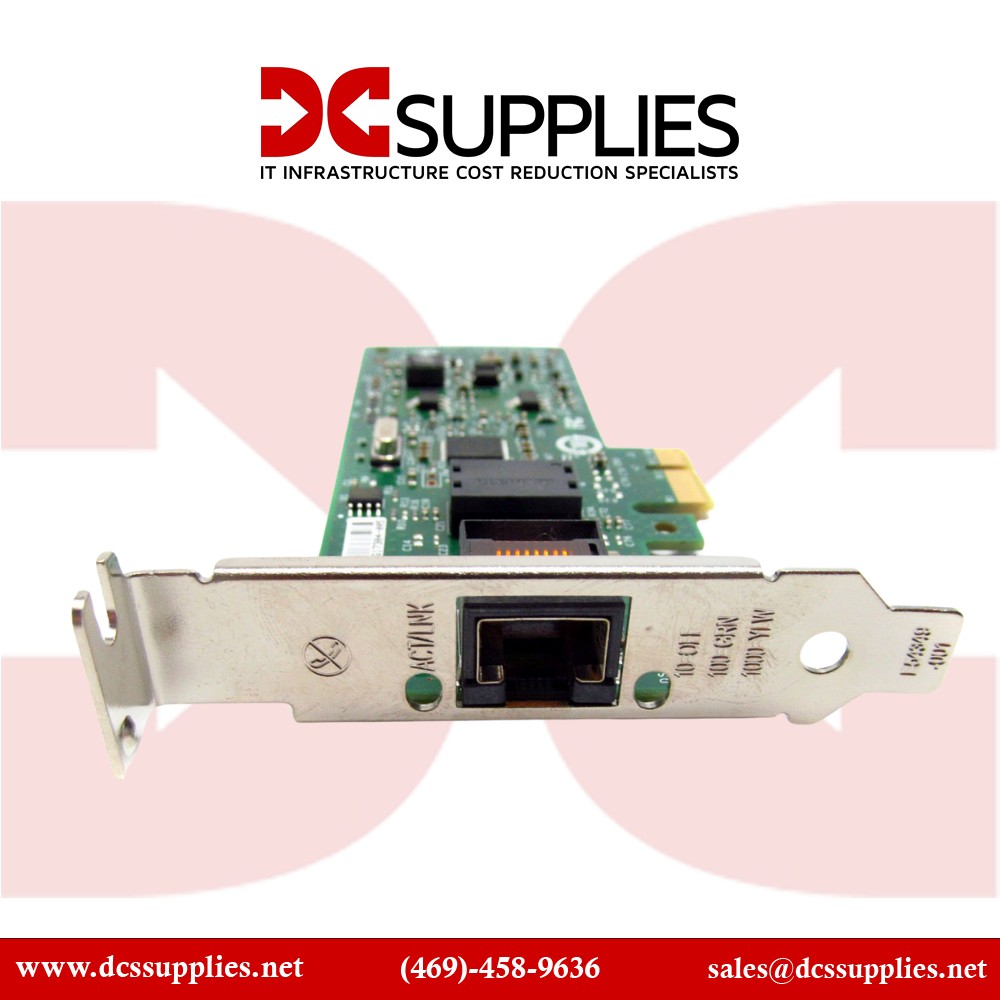

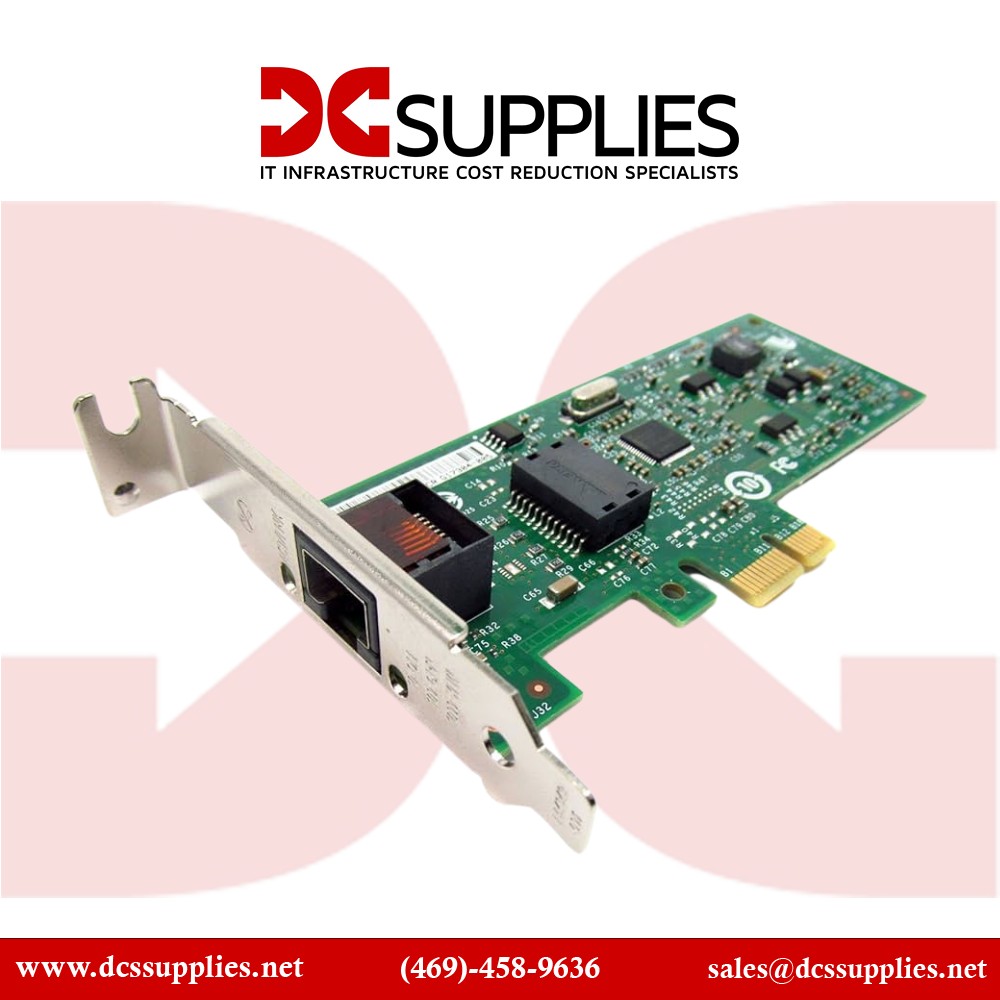

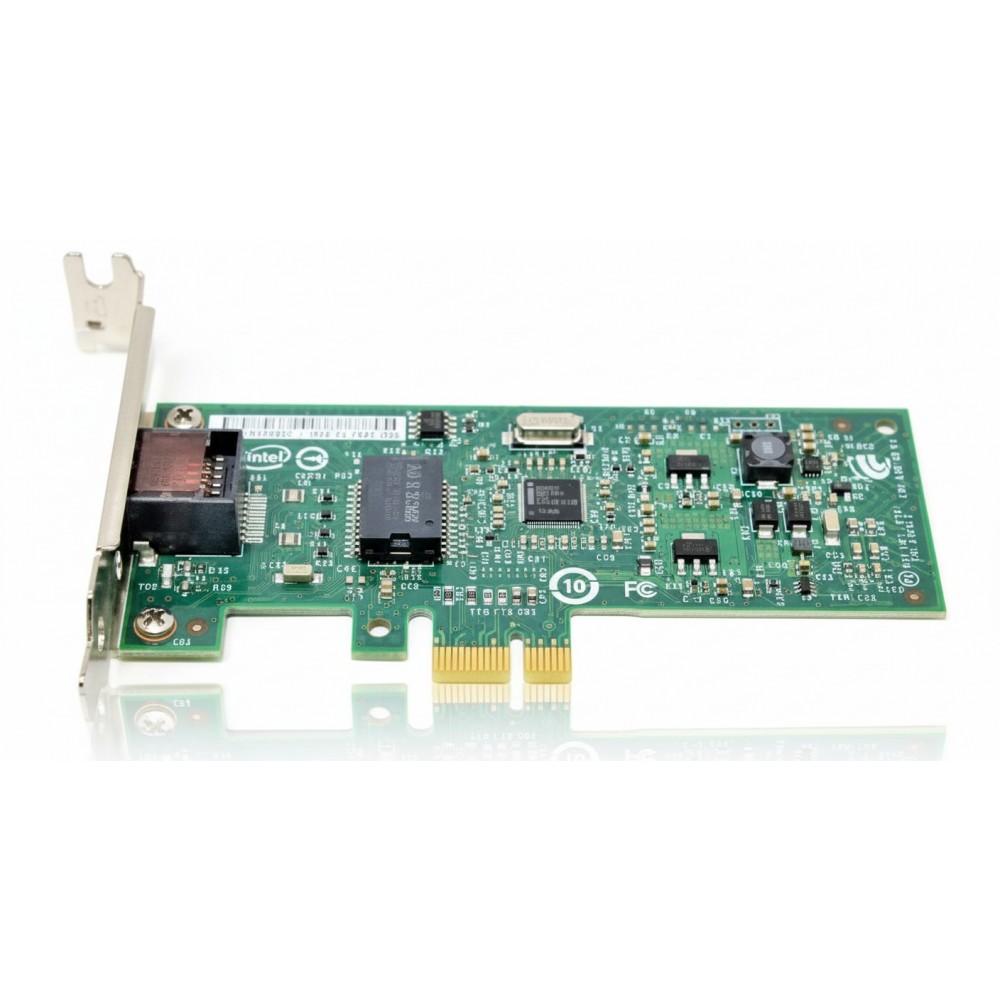

HPE 635523-001 Intel Pro 1000 CT Single-Port 1Gb Ethernet Card
Overview
This adapter is a single-port 10/100/1000Base-T Gigabit Ethernet card designed for server or workstation deployments, using a PCI Express x1 interface. It incorporates the Intel Pro 1000 CT controller to deliver reliable wired connectivity with full-duplex 1 Gb/s performance and supports legacy 10/100 Mb/s rates for mixed-speed environments. It fits into standard PCIe slots and is suitable for enterprise desktops, entry-level servers or cost-conscious network upgrades. It integrates with common OS drivers for flexible deployment across multiple hardware platforms.
Key Features
Single RJ-45 port supporting 10/100/1000 Mb/s auto-negotiation
PCI Express x1 host interface for plug-in simplicity
Intel Pro 1000 CT controller ensuring full line-rate traffic at 1 Gb/s
Supports Wake-on-LAN (WOL) and PXE network boot functionality
Low-profile/standard bracket option accommodates compact and standard chassis
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 635523-001 |
| Product Type | Single-Port Gigabit Ethernet Card |
| Network Adapter | 1 × 10/100/1000Base-T RJ-45 port |
| Host Interface | PCI Express x1 |
| Chipset | Intel Pro 1000 CT |
| Form Factor (H × W × D in inches) | ~4.7 × 2.2 × 0.9 in * |
| Weight (lbs) | ~0.35 lbs ** |
| Media Type Supported | Twisted Pair (Category 5 or better) |
| Auto-Negotiation Speeds | 10/100/1000 Mb/s |
| Driver Support | Windows, Linux, VMware (varies by version) |
| Companion Bracket Options | Full-height & low-profile included |
| Status Indicators | Link/Activity LED on RJ-45 port |
| Wake-on-LAN Support | Yes |
| PXE Boot Support | Yes |
