Detailed Specifications

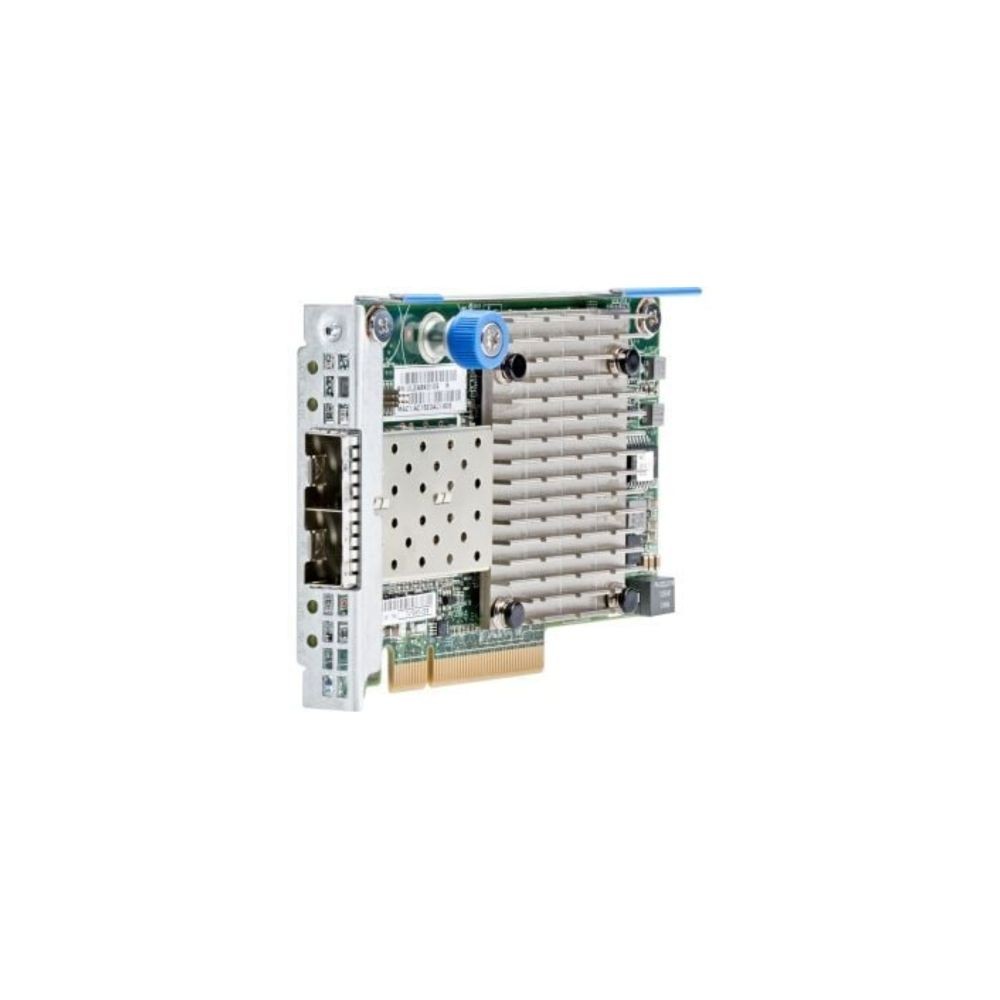

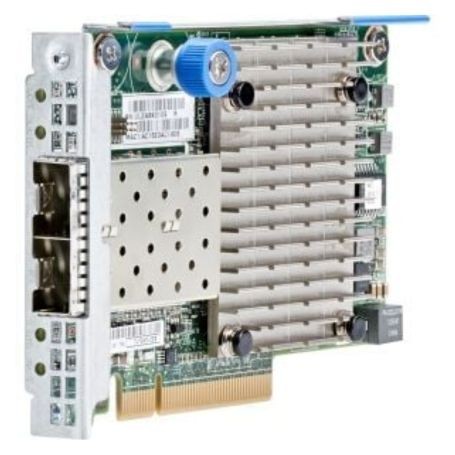

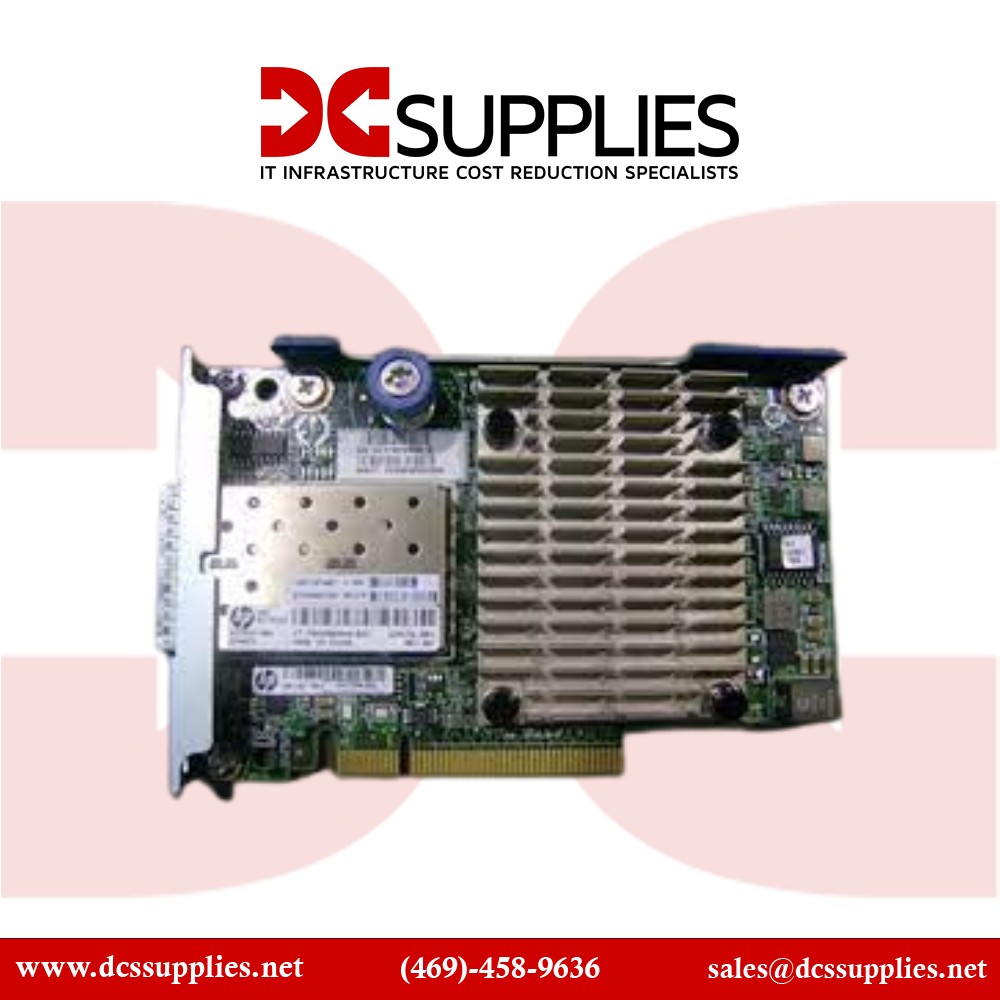

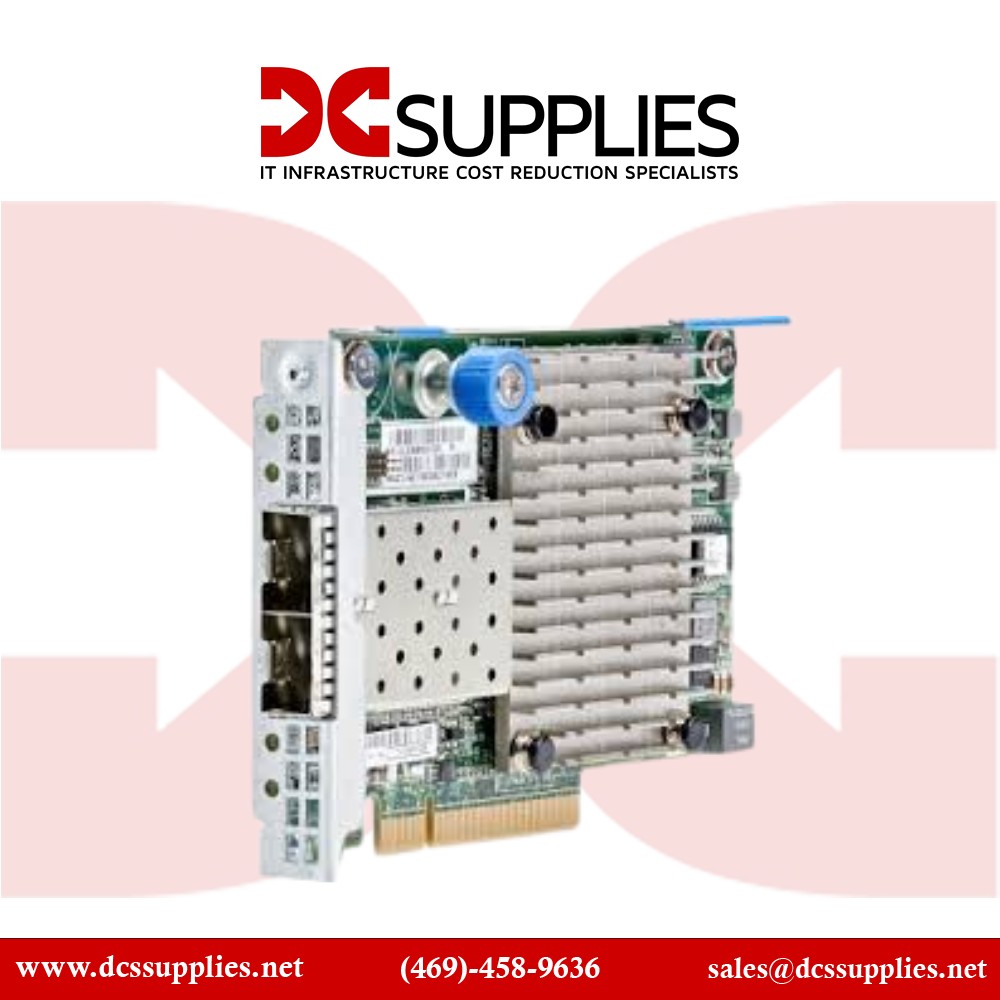

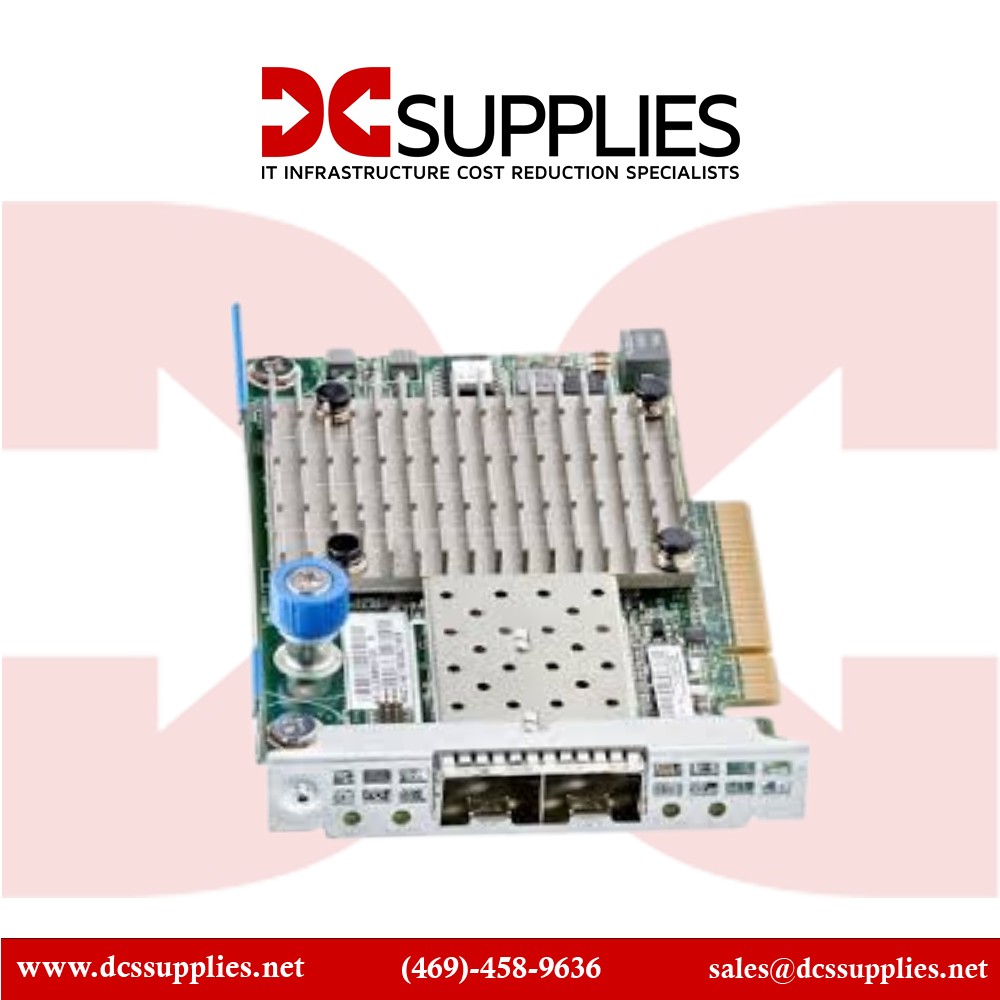

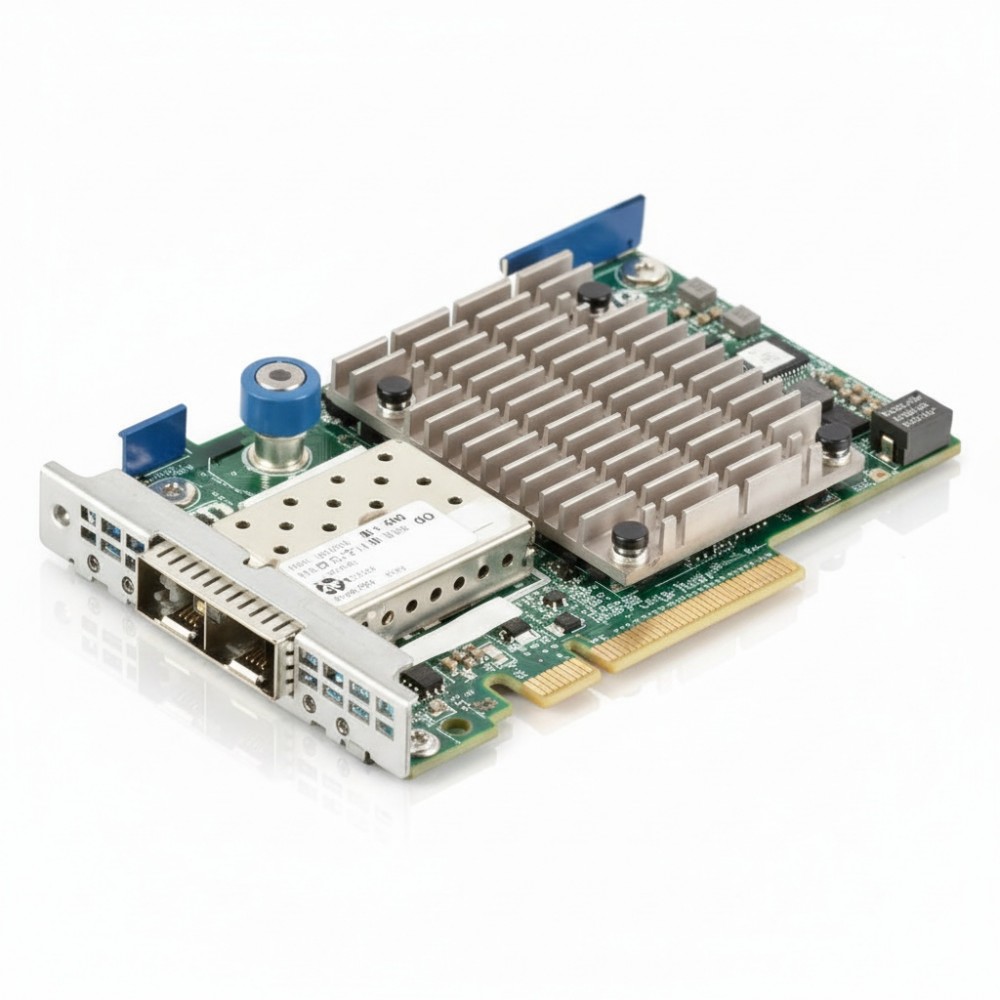

HPE 629136-001 FlexFabric 10Gb 2-Port 526FLR-SFP+ Adapter
Overview
The HPE 629136-001 is a dual-port 10 Gigabit Ethernet network adapter designed for installation in servers via the 526FLR mezzanine slot, delivering two SFP+ ports capable of 10 Gb/s each. It supports converged network functionality×combining Ethernet, iSCSI and Fibre Channel over Ethernet (FCoE) traffic×enabling infrastructure consolidation in modern data centre compute nodes. With support for jumbo-frame packets, SR-IOV, large-send offload (LSO), receive-side-scaling (RSS) and PXE boot compatibility, it addresses both virtualised environments and storage-connected servers. The adapter is good for high-bandwidth uplinks in enterprise rack servers, helping preserve standard PCIe slots while providing two 10G optical or DAC links. The card fits into dense servers and is compatible with existing SFP+ fibre or direct-attach copper cabling.
Key Features
Two SFP+ ports, each supporting 10 Gb/s operation
526FLR mezzanine form-factor for HPE ProLiant servers
Converged network adapter supporting Ethernet, iSCSI and FCoE traffic
Advanced offload features: jumbo frames, LSO, RSS, PXE boot support
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 629136-001 |
| Product Type | FlexFabric 10Gb 2-Port 526FLR-SFP+ Adapter |
| Port Count | 2 |
| Supported Link Speeds | 10 Gb/s per port |
| Port Type | SFP+ |
| Host Interface | 526FLR mezzanine slot (equivalent to PCIe) |
| Supported Traffic Types | Ethernet, iSCSI, FCoE |
| Supported Offload Features | Jumbo frames, LSO, RSS, PXE boot |
| Form Factor | Mezzanine card |
| Typical Dimensions (W×D×H) | Approx. 2.7″ × 6.6″ × 0.7″ (approx. 68 mm × 167 mm × 18 mm) |
| Weight | Approx. 0.24 lb (~0.11 kg) |
| Compatible Platforms | HPE ProLiant servers with 526FLR support |
| Media/Link Support | Fibre SFP+ or DAC cabling |
