Detailed Specifications

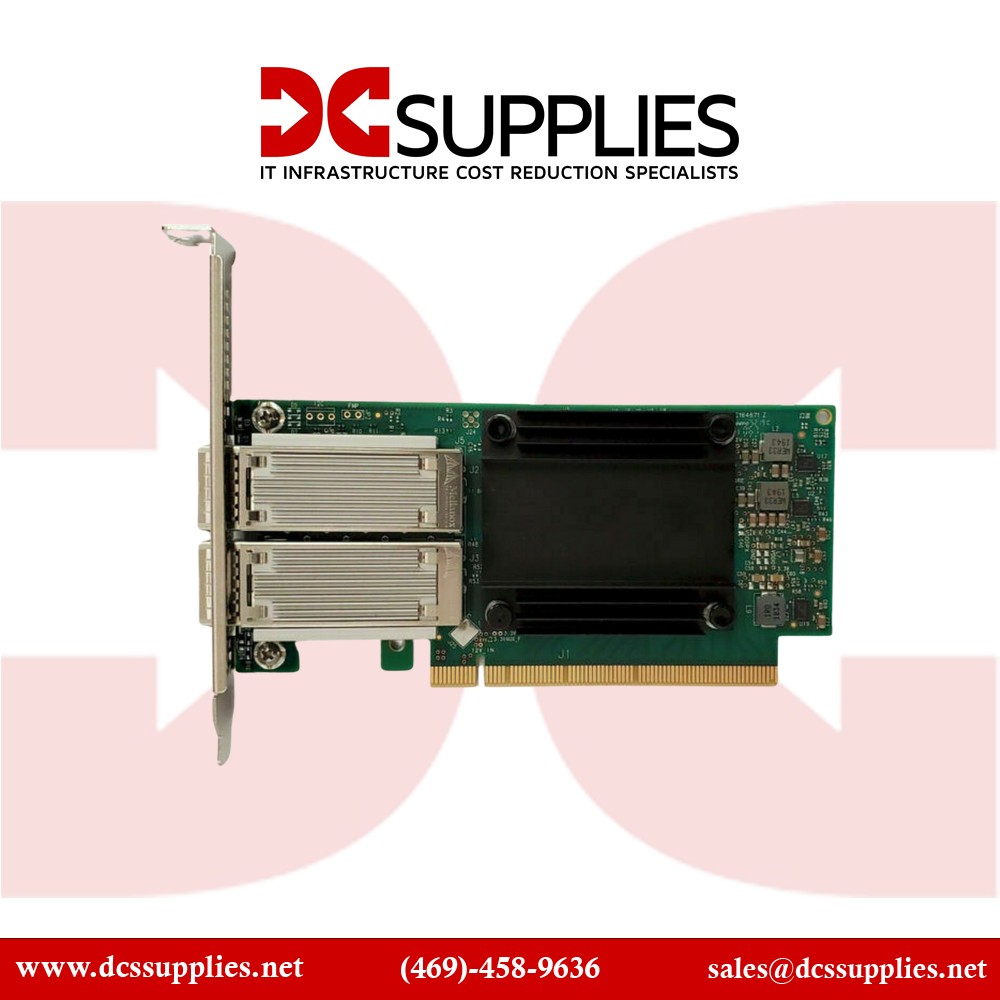

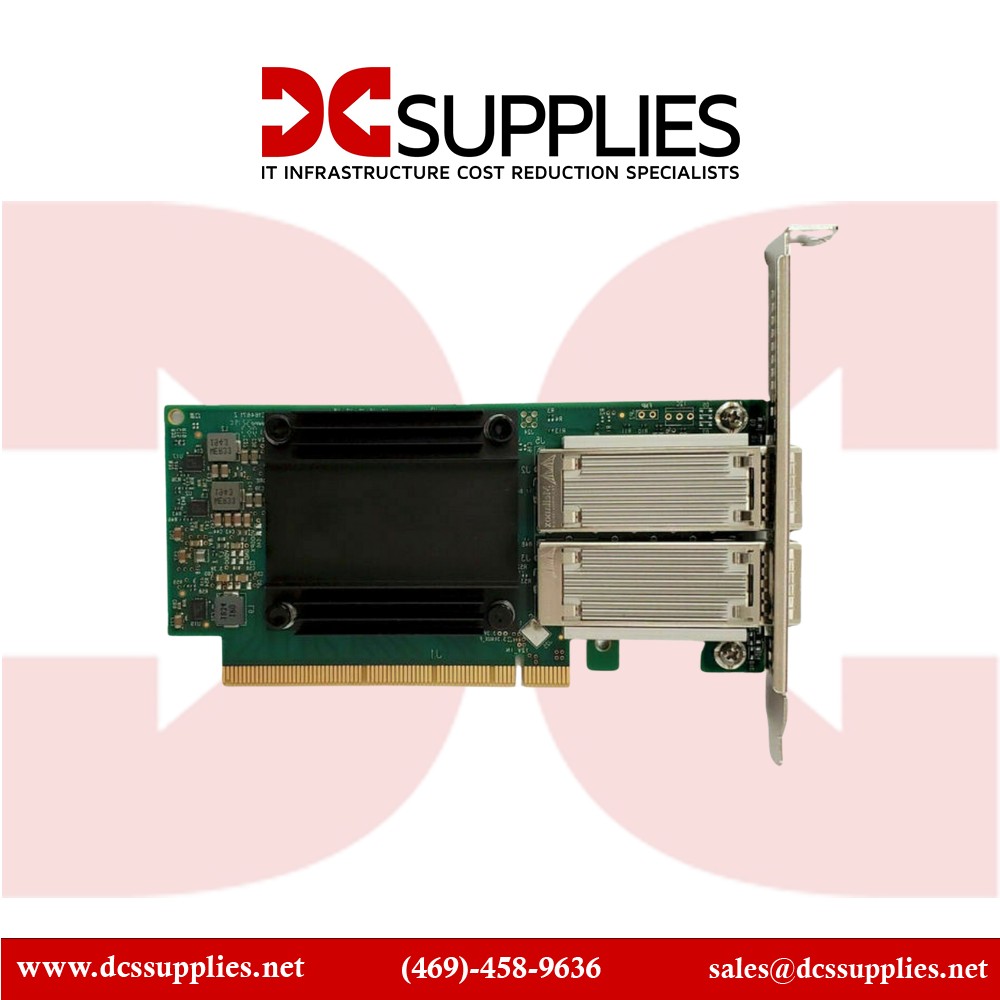

HPE P23842-001 InfiniBand EDR Ethernet 100Gb 2-Port QSFP28 Adapter
Overview
The HPE P23842-001 is a high-bandwidth server adapter delivering two 100 Gb/s QSFP28 ports, designed for both Ethernet and InfiniBand EDR fabrics in enterprise and HPC environments. Installing in a PCI Express ×16 slot (or equivalent mezzanine) in compatible HPE servers, it provides full-line-rate dual uplinks for compute, storage or virtualised infrastructure nodes. Its support for NEtwork offloads, RDMA and high message-rate fabrics helps reduce CPU load and accelerate data movement between nodes, making it suitable for AI/ML clusters, high-performance storage fabrics and data-centre aggregation servers. The adapter supports dual 100 Gb links in one slot, simplifying cabling and port density in dense rack deployments.
Key Features
2 × 100 Gb/s QSFP28 ports for dual high-speed links
Supports both 100 Gb Ethernet and InfiniBand EDR protocols
PCI Express ×16 host interface for unrestricted throughput
Engineered for server-to-server fabrics, HPC, AI/ML nodes and storage clusters
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | P23842-001 |
| Product Type | 100Gb 2-Port QSFP28 Adapter |
| Port Count | 2 |
| Supported Link Speeds | 100 Gb/s per port |
| Port Type | QSFP28 |
| Bus/Host Interface | PCI Express ×16 |
| Protocols Supported | 100 Gb Ethernet, InfiniBand EDR |
| Virtual Function Capacity | Up to 256 VFs |
| Physical Function Capacity | Up to 16 PFs |
| Compatible Platforms | HPE ProLiant Gen10 and other servers |
| Form Factor | Low-profile plug-in adapter |
