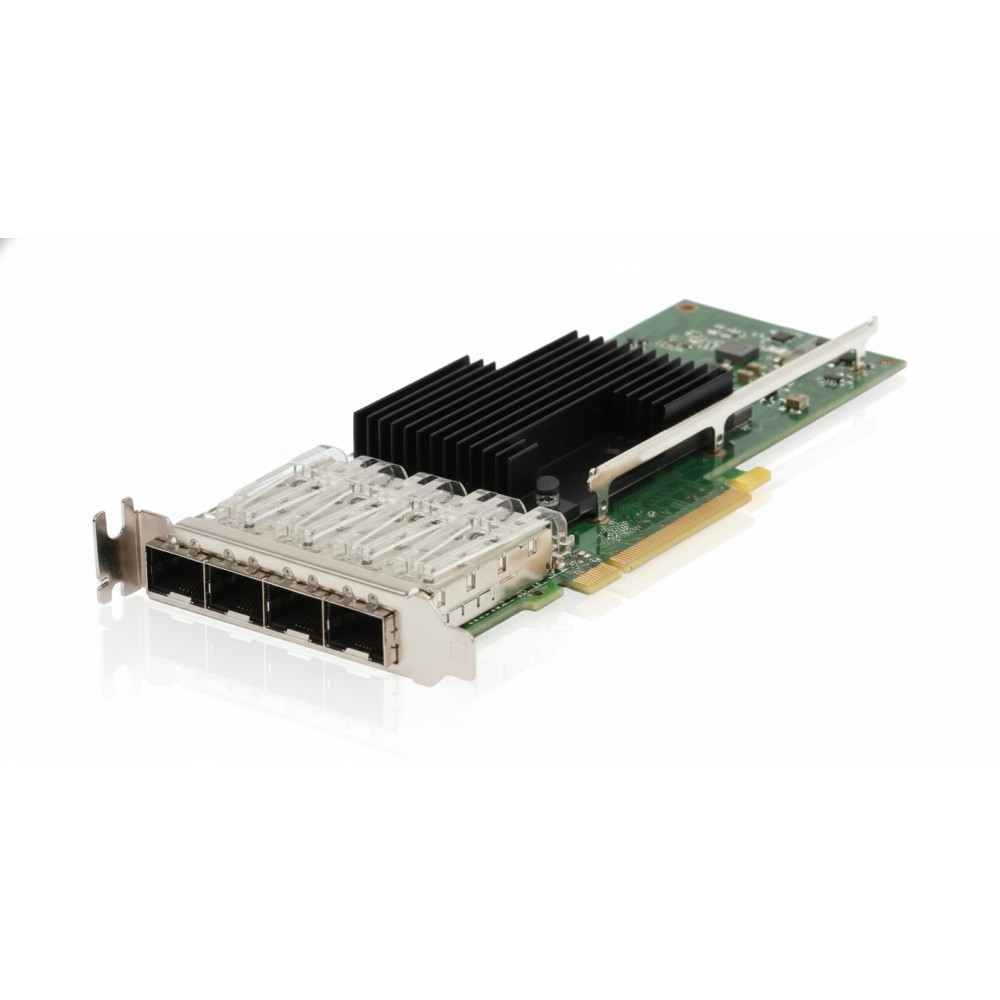

HPE 869583-001 563SFP+ Intel X710-DA4 10G Network Adapter View larger

HPE 869583-001 563SFP+ Intel X710-DA4 10G Network Adapter

New

4-port 10 Gb/s SFP+ server network adapter
×




  • New

Detailed Specifications

HPE 869583-001 Ethernet 10Gb 4-Port SFP+ Adapter

Overview

The HPE 869583-001 is a quad-port 10 Gigabit Ethernet network adapter targeted at rack and tower servers requiring high-density uplink bandwidth. Each of its four SFP+ ports supports full-duplex 10 Gb/s operation and uses a PCI Express 3.0 ×8 host interface, enabling an aggregate throughput of up to 40 Gb/s. This adapter, based on the Intel X710-DA4 chipset, provides advanced network virtualization, packet offload features, and efficient traffic steering—features that help reduce CPU load in virtualized data-centre environments. It is suitable for connectivity in compute, storage, or converged infrastructure nodes where multiple 10 Gb links are required from a single adapter slot. Installation leaves other PCIe slots available, leveraging existing SFP+ fibre or direct-attach cabling for flexibility in optical or copper links.

Key Features

  • Four SFP+ ports supporting 10 Gb/s each

  • PCI Express 3.0 ×8 host interface for full throughput

  • Support for SR-IOV and advanced network offloads

  • High-density network adapter suited for 10 Gb server uplinks

Technical Specifications

SpecificationValue
Brand HPE
Part Number 869583-001
Product Type Ethernet 10Gb 4-Port SFP+ Adapter
Port Count 4
Supported Link Speed 10 Gb/s per port
Port Type SFP+
Host Bus Interface PCI Express 3.0 ×8
Aggregate Throughput Up to ~40 Gb/s
Controller Type Intel X710-DA4 class
Form Factor Full-height PCIe plug-in card
Dimensions (W × D × H) ~6.58″ × ~4.33″ × ~0.87″
Weight ~0.44 lb (~0.20 kg)
Supported Media SFP+ fibre or DAC cabling
Virtualization / Offload Support SR-IOV, VMDq, tunnel/overlay offloads
Typical Use Case Multi-10Gb uplinks for servers in virtualised/cluster environments
