HPE P26258-001 Broadcom Network Adapter 2-Port View larger

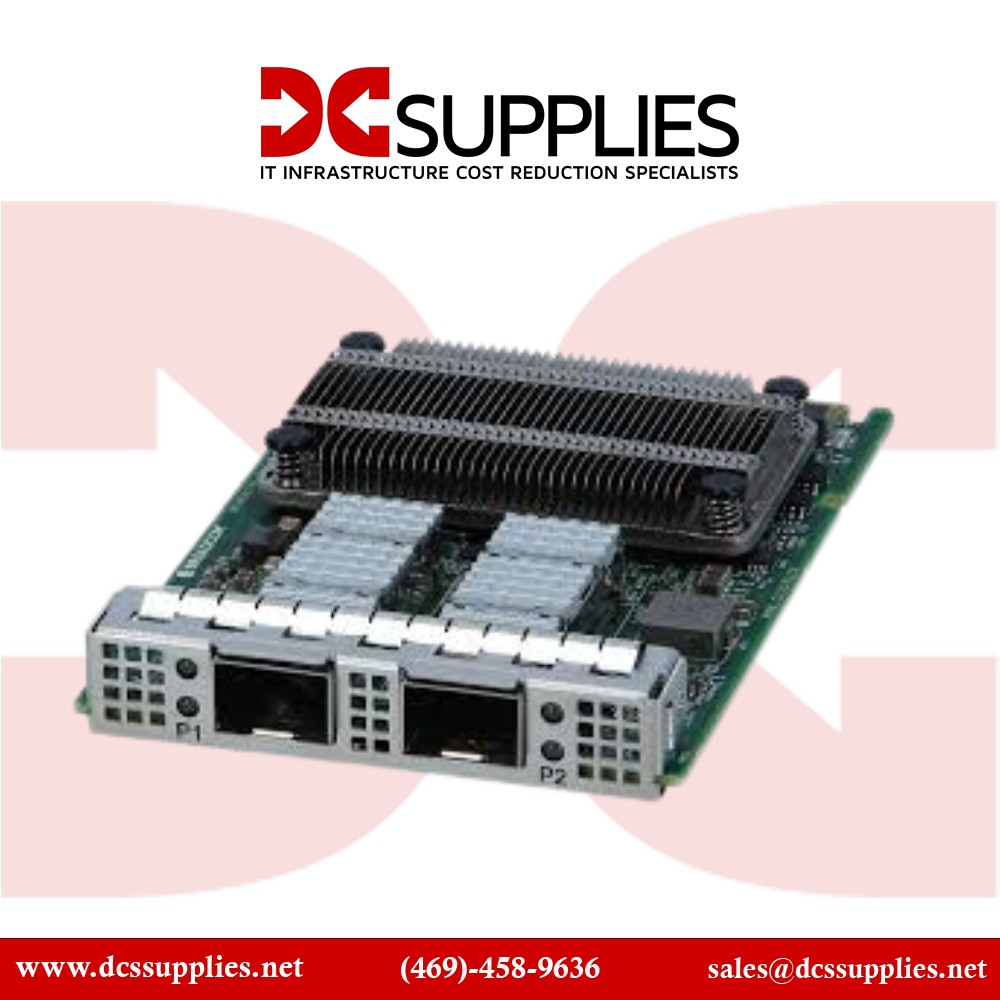

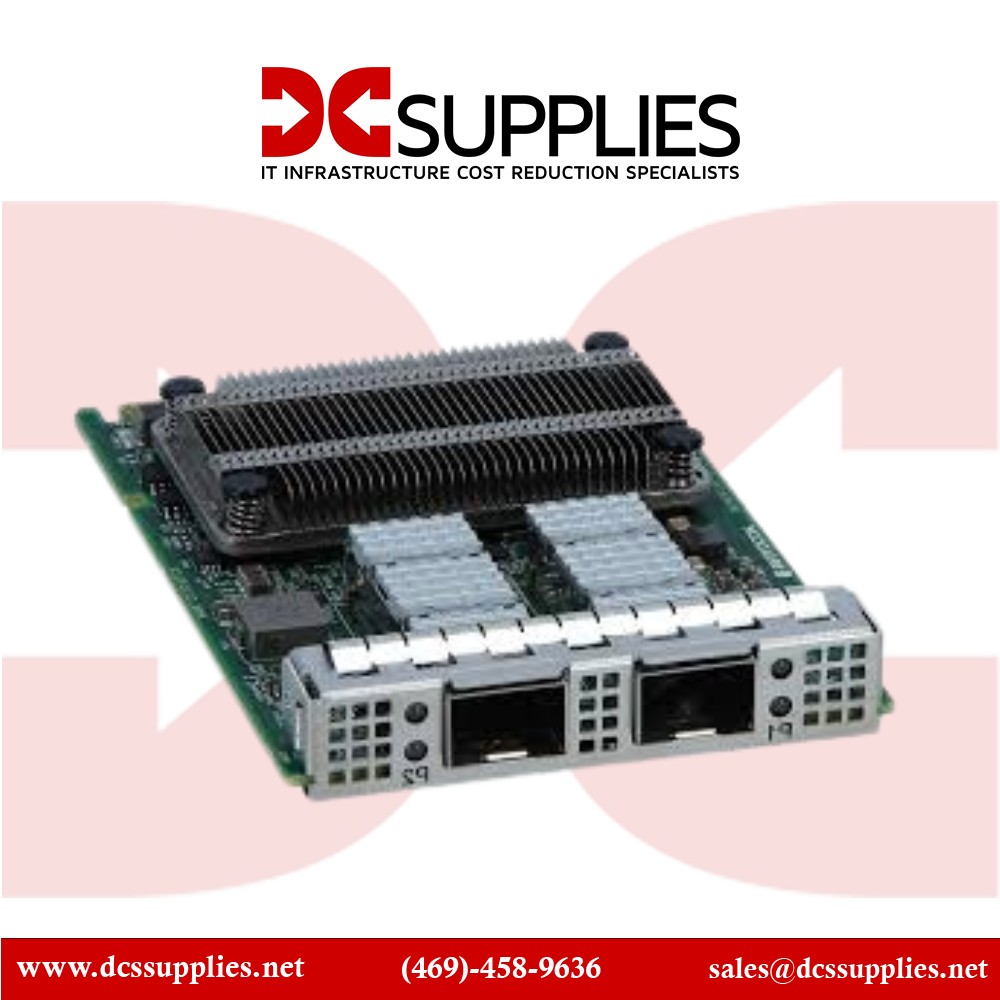

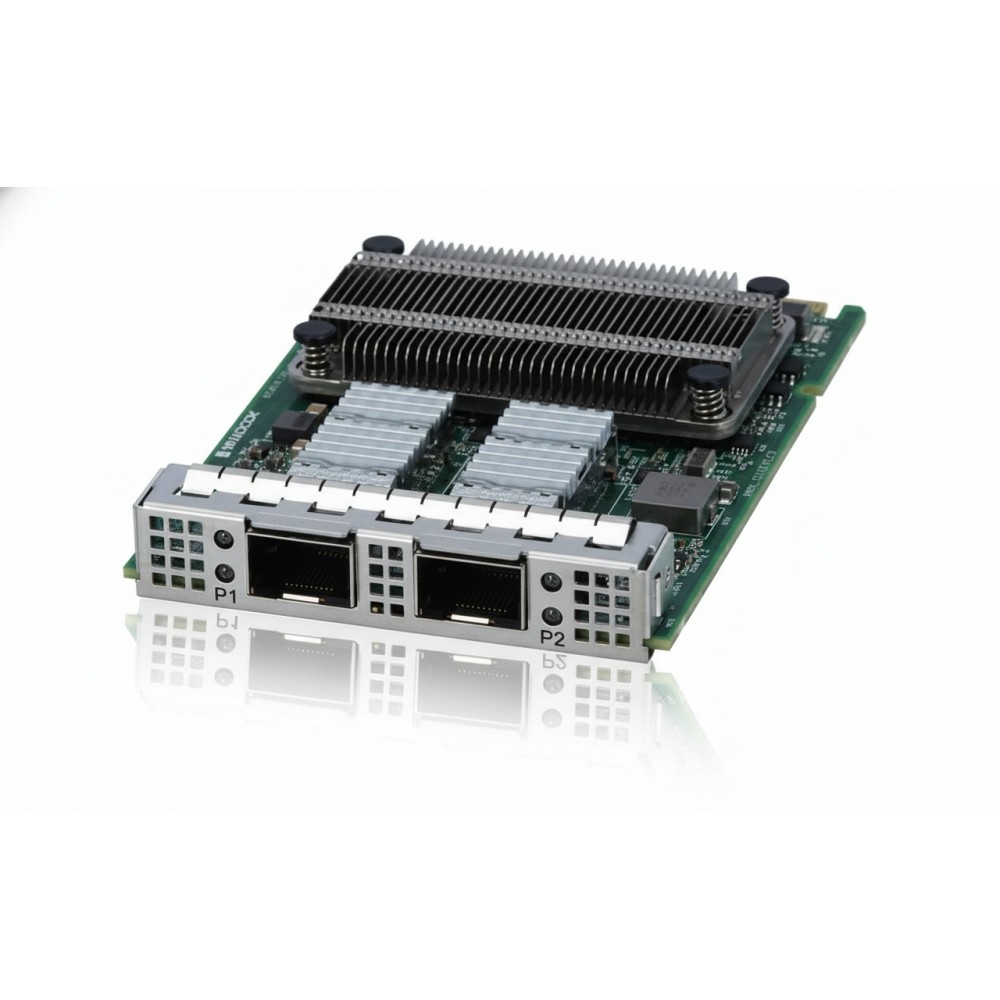

HPE P26258-001 Broadcom 2-Port 10Gb Gigabit Ethernet Network Adapter

P26258-001

New

Dual‑port 10 Gb/s SFP+ server network adapter
×




Detailed Specifications

HPE  P26258‑001 Ethernet 10Gb 2‑Port SFP+ OCP3 Adapter

Overview

The HPE P26258‑001 is a dual‑port 10 Gigabit Ethernet network adapter tailored for modern server environments, especially in conjunction with HPE Gen10 Plus platforms. It provides two SFP+ ports capable of 10 Gb/s each, using an OCP 3.0 mezzanine form‑factor for installation in supported server slots. This adapter enables high‑bandwidth uplinks for virtualization, storage, or compute nodes without occupying standard PCIe expansion slots. Its compact design and full throughput capability make it suitable for rack‑mount and hyper‑converged systems where efficient server‑to‑network connectivity matters.

Key Features

  • Two SFP+ ports delivering 10 Gb/s per port.

  • OCP 3.0 adapter form‑factor for efficient mezzanine slot deployment.

  • PCI Express Gen3 x8 interface for full host throughput.

  • Certified for HPE Gen10 Plus servers and supports modern offload capabilities.

Technical Specifications

SpecificationValue
Brand HPE
Part Number P26258‑001
Product Type Ethernet 10Gb 2‑Port SFP+ OCP3 Adapter
Port Count 2
Supported Link Speeds 10 Gb/s per port
Connection Type SFP+ (optical or DAC, depending on module)
Bus/Host Interface PCI Express Gen3 ×8
Form Factor OCP 3.0 mezzanine card
Compatible Platforms HPE Gen10 Plus server platforms
Supported Offloads SR‑IOV, DPDK, jumbo frames, virtualization friendly
Media Type Fibre / SFP+ ecosystem
Typical Power Consumption ~8 W typical
Operating Temperature Range 0 °C to ~55 °C
