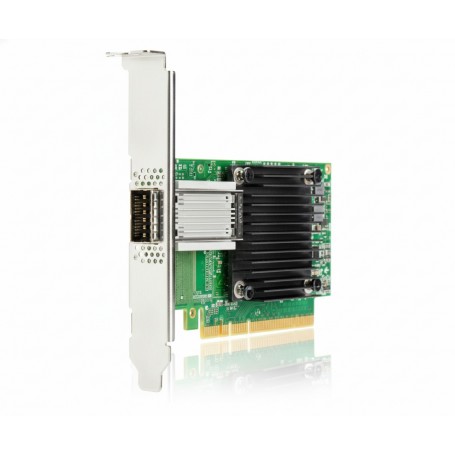

HPE 878578-001 InfiniBand 100Gb 1-port Network Adapter View larger
Previous Next

HPE 878578-001 InfiniBand EDR / 100 GbE QSFP28 Single‑Port Network Adapter

New

Single‑port

×




  • New

Detailed Specifications

HPE 878578-001

InfiniBand EDR / 100 GbE QSFP28 Single‑Port Network Adapter

The HPE 878578‑001 (also known as 872725‑B21/CX555A) is a high-performance InfiniBand EDR / 100 GbE adapter equipped witha single QSFP28 port. Built on Mellanox ConnectX‑5 technology, this compact adapter delivers ultra-low latency and up to 100 Gb/s throughput. Designed for high-performance computing, storage clusters, AI/ML workflows, and enterprise fabrics, it optimally balances speed with minimal CPU overhead. Its stand‑up low-profile form factor ensures compatibility with dense rack deployments and a wide range of HPE ProLiant Gen9/Gen10 servers and storage systems.

Features

This adapter supports the IBTA 1.3 InfiniBand EDR standard and operates at 100 Gb Ethernet via RoCEv2 on a single QSFP28 port. With PCIe Gen3 ×16 interface, advanced features such as RDMA, GPUDirect, and MPI tag‑matching reduce CPU utilization and improve throughput in virtualization and storage environments. Its compact “stand‑up” low-profile design provides flexible deployment in servers where airflow and space are constrained. Compatible with InfiniBand EDR/FDR switches and 100 Gb Ethernet fabrics, this single-port card delivers enterprise-level connectivity in a streamlined footprint.

Advanced Options

This adapter delivers enterprise-grade performance with consistent 100 Gbps throughput and sub‑microsecond latency—ideal for HPC clusters and data center fabrics. The hardware offload features significantly reduce host CPU load,

Product Key Features

  • 1 × QSFP28 port for 100 Gb/s InfiniBand EDR or Ethernet

  •  Mellanox ConnectX‑5 chipset with DPI offloads

  •  PCIe Gen3 ×16 interface for maximum link throughput

  •  Hardware acceleration: RDMA, GPUDirect, MPI tag‑matching

  •  Ultra-low latency, high throughput fabric support

  •  Low-profile stand‑up card suitable for dense server environments

Reliability & Performance

boosting efficiency during high-scale workloads like virtualization or storage throughput. Compact and thermally efficient, the design supports reliable operation in rack-dense configurations. Power consumption remains modest, even under sustained use, and the card adheres to InfiniBand and Ethernet standards for robust interoperability.

Key Features :

  • 100 Gb/s InfiniBand EDR / Ethernet via QSFP28

  • ConnectX‑5-based hardware with RDMA, GPUDirect, and MPI offloads

  • PCI Express Gen3 ×16 host interface

  • Single‑port stand‑up, low-profile PCIe card

  • Supports both InfiniBand EDR and 100 Gb Ethernet fabrics

  • Designed for high throughput with ultra-low latency

SpecificationDetails
Model Number 878578‑001 (SP) / 872725‑B21 (customer SKU)
Product Type Single-Port InfiniBand EDR / 100 Gb Ethernet Network Adapter
Port Configuration 1 × QSFP28
Data Rates 100 Gb/s (InfiniBand EDR, RoCEv2 Ethernet)
Chipset Mellanox ConnectX‑5
Bus Interface PCI Express Gen3 ×16
Offload Features RDMA, GPUDirect, MPI tag-matching
Connector Speed PCIe Gen3 ×16 link
Form Factor Stand‑up, low-profile PCIe card
Dimensions (W × D × H) 17.78 × 21.59 × 5.08 cm
Weight ~0.45 kg
Optical Wavelength 841 nm (InfiniBand EDR)
Supported Fabrics IBTA 1.3 InfiniBand EDR, 100 Gb Ethernet RoCE
Compatibility HPE ProLiant DL360/380/560/580 Gen9 & Gen10, Apollo, Nimble, etc.
Warranty Typically 90 days (refurbished listings)
