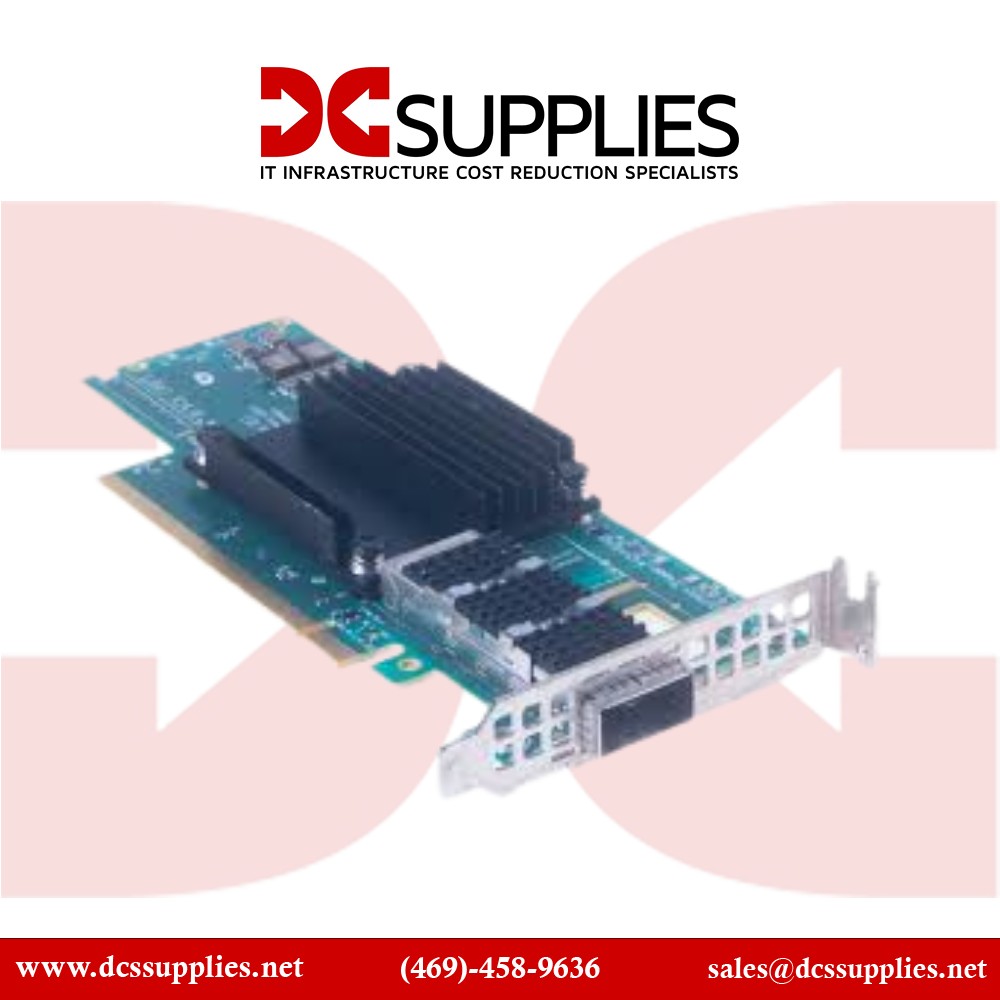

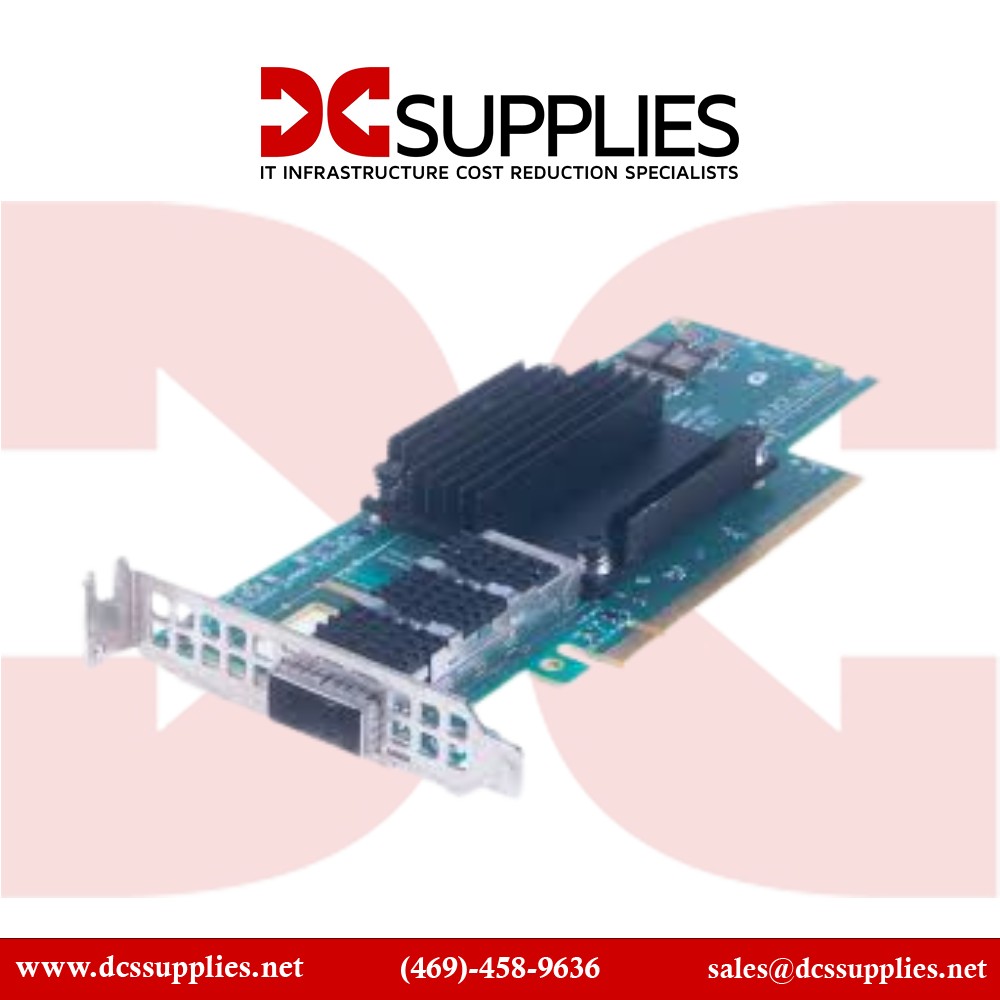

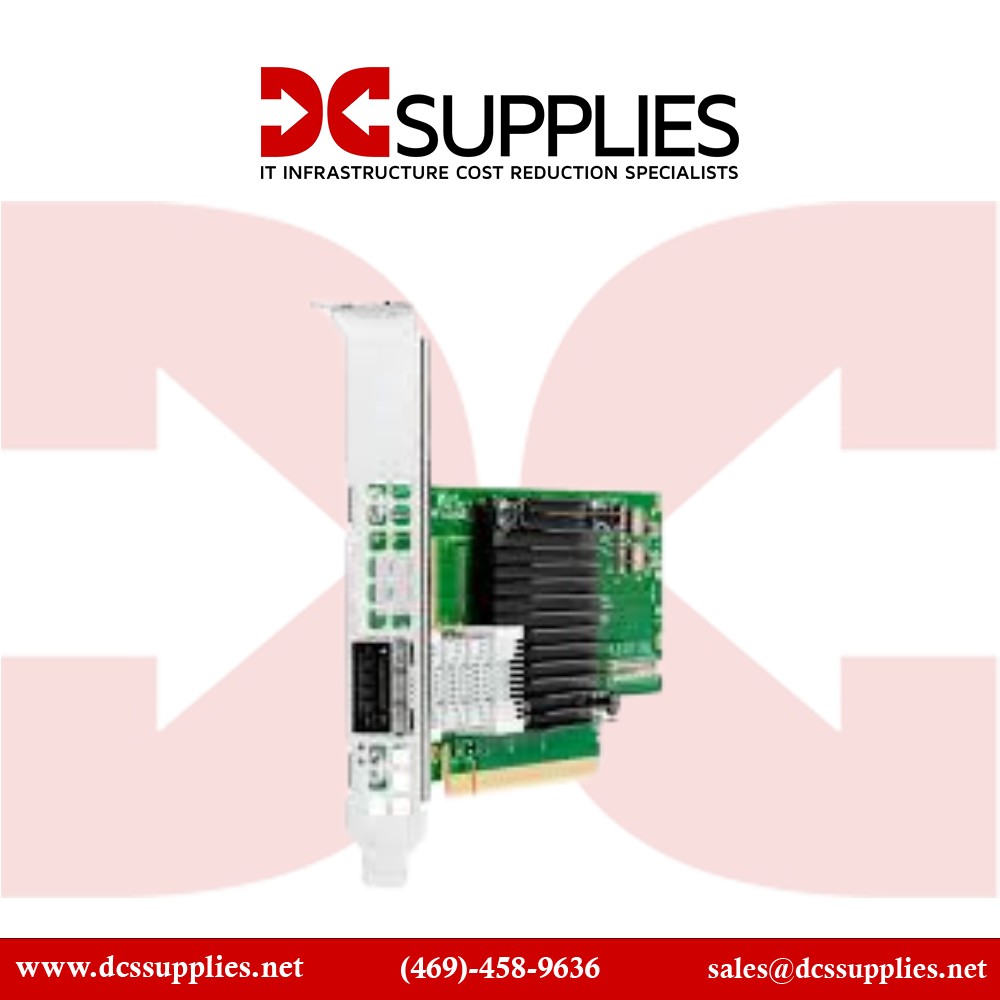

HPEP24248-001

MCX653105A-ECAT InfiniBand HDR100 / 100 GbE Single-Port QSFP56 Network Adapter

The HPEP24248-001 is a high-performance Network Adapter offering a single QSFP56 port capable of supportingHDR100 InfiniBand or 100 GbE Ethernet connectivity. Designed primarily for HPEProLiant Gen10 Plus servers, Apollo systems, and Synergy platforms, it delivers ultra-low latency communication with full line-rate throughput. Ideal for high-performance computing, storage clustering, or inter-server fabrics, this adapter reduces CPU overhead via intelligent offload mechanisms. Whether deployed in InfiniBand fabrics or manual Ethernet networks, it ensures reliable, high-bandwidth networking for demanding enterprise workloads

Features

This adapter is built on Mellanox ConnectX-6 series technology (MCX653105A-ECAT) and plugs into a PCIe 4.0 ×16 (or ×8) slot, enabling full-speed data transfers with either DAC or AOC QSFP56 cabling. It supports line-rate 100 Gbps in both InfiniBand HDR100 and Ethernet modes, ensuring compatibility across varied high-speed fabric deployments. The card features advanced offloading capabilities×including MPI tag matching, rendezvous, adaptive routing, and RDMA acceleration×to reduce latency and improve CPU utilization. It's purpose-built for dense compute environments like HPC clusters and storage fabric topologies.

Advanced Options

Engineered for top-tier data center performance, this adapter delivers full 100 Gbps throughput with sub-microsecond latency in InfiniBand mode and line-rate in Ethernet mode. Offload engines×such as MPI tagging and adaptive routing×streamline messaging in compute-intensive environments while minimizing CPU load.

Product Key Features

• Single QSFP56 port supporting HDR100 InfiniBand and 100 GbE Ethernet


• PCI Express 4.0 ×16 (×8 compatible) host interface


• Mellanox ConnectX-6 (MCX653105A-ECAT) network processor


• Ultra-low latency with full bandwidth operation


• Supports DAC and AOC cables via QSFP56 connector


• Hardware offload: MPI, adaptive routing, RDMA acceleration

---

Reliability & Performance

The PCIe Gen4 x16 architecture ensures maximum performance headroom, and the low-profile stand-up form factor fits modern rack servers efficiently. Certified for use with HPEProLiant Gen10 Plus, Apollo, and Synergy servers, the module is rugged, thermally optimized, and designed to drive reliable cluster and SAN fabric connectivity.

Key Features :

• 1 × 100 Gbps HDR100 InfiniBand / Ethernet port via QSFP56

• PCIe 4.0 ×16 (×8 compatible) interface

• Mellanox ConnectX-6 Lx (MCX653105A-ECAT) processor

• Supports DAC and AOC cable connectivity

• RDMA acceleration and MPI hardware offloads

• Ultra-low latency performance

• Compatible with HPEProLiant DL/ML Gen10+, Apollo, Synergy

• Efficient, low-profile stand-up bracket

• Minimal CPU overhead; supports RDMA and cluster messaging

• Broad OS and hypervisor compatibility

Specification	Details
Model Number	P24248-001
Product Type	Single-Port HDR100 InfiniBand / 100 GbE Network Adapter
Port Configuration	1 × QSFP56
Bus Interface	PCI Express 4.0 ×16 (×8 compatible)
Data Rate	Up to 100 Gbps full-duplex
Supported Protocols	HDR100 InfiniBand, 100 GbE Ethernet
Cable Support	DAC and AOC via QSFP56
Network Processor	Mellanox ConnectX-6 Lx (MCX653105A-ECAT)
Offload Features	RDMA, MPI tag matching, adaptive routing
Form Factor	Low-profile standup PCIe adapter
Compatible Servers	HPEProLiant Gen10 Plus, Apollo, Synergy
Latency	Sub-microsecond in HDR mode
Power Consumption	~15 W typical (estimated)
Operating Temperature	0 °C to 55 °C
Weight	~0.23 kg
Compliance	RoHS, QSFP56, PCIe Gen4 standards
