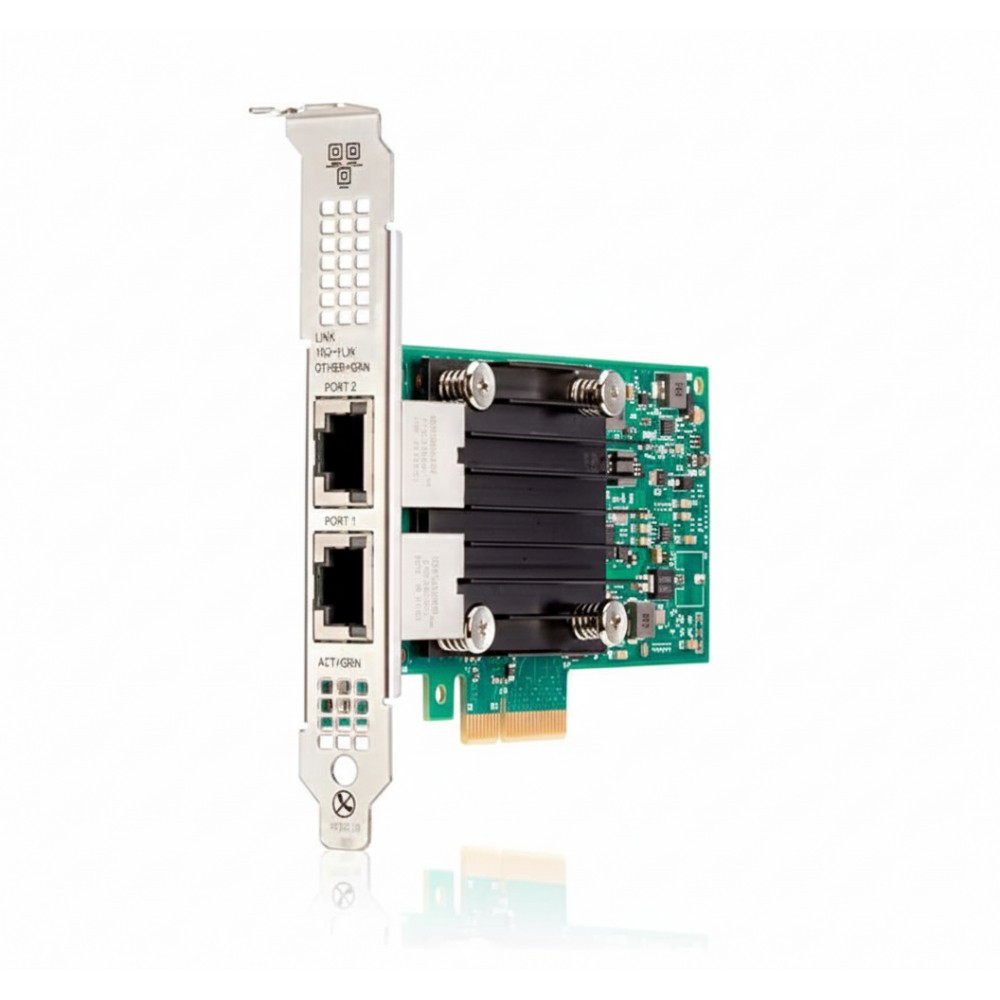

HPE817745-B21

Ethernet 10 Gb 2-Port FLR-T (X550-AT2) Network Adapter

The HPE817745-B21 Ethernet 10 Gb 2-Port FLR-T adapter (X550-AT2) is a high-performance FlexibleLOM network carddesigned for modern enterprise and virtualized workloads. Featuring dual RJ-45 10 GbE ports, it delivers up to 40 Gbps aggregate bandwidth using Cat 6A/7 cabling with backward compatibility to 1 GbE. Optimized for HPEProLiant Gen10 servers, this adapter elevates throughput while minimizing CPU utilization through efficient offloads. Ideal for virtualization, NFV, cloud computing, and high I/O density applications, it delivers stable, low-latency network performance aligned with today's data center demands.

Features

Built around the Intel X550-AT2 controller and using a PCIe 3.0 ×4 interface, this adapter integrates into ProLiant servers via the FLR-T form factor. Each port supports full line-rate 10 GbE throughput with minimal host impact, thanks to features like Single Root I/O Virtualization (SR-IOV), TCP/IP segmentation offload, tunnel offloads (VXLAN/NVGRE), and DPDK acceleration. It supports jumbo frames (up to 9 K MTU), IPv4/IPv6, PXE boot, and Wake-on-LAN functionality×making it a versatile choice for both new deployments and infrastructure upgrades. The adapter includes both low-profile and full-height brackets for flexible installation scenarios.

Advanced Options

Engineered for enterprise server environments, this adapter delivers unwavering throughput across both ports×even under intensive virtual and cluster workloads. The Intel X550-AT2 silicon and advanced offload capabilities reduce CPU overhead while maintaining low latency and network efficiency.

Product Key Features

• Dual 10 GbE RJ-45 ports over Cat 6A/7 cabling


• FlexibleLOM form factor for HPEProLiant Gen10 servers


• Intel X550-AT2 controller with PCIe 3.0 ×4 interface


• Offloads: SR-IOV, TSO/LSO, checksum, tunnel offloads, DPDK


• Jumbo frame support (up to 9 K MTU) and PXE/WOL support


• Low-power design (~10.5 W typical) with thermal awareness

---

Reliability & Performance

With thermal monitoring via HPESea of Sensors 3D technology, it dynamically adapts to chassis temperature zones for reliable operation. SR-IOV support and tunnel offloads ensure robust performance in virtualized or multi-tenant settings. Certified for use in ProLiant Gen10 servers×including DL/ML models×it supports high-density networking with integration simplicity and long-term reliability.

Key Features :

• • 2 × 10 GbE RJ-45 ports over Cat 6A/7

  • FlexibleLOM form factor for HPEProLiant Gen10

  • Intel X550-AT2 controller with PCIe 3.0 ×4 bus

  • Jumbo frame support (up to 9 K MTU)

  • Offload features: SR-IOV, TSO/LSO, checksum, VXLAN/NVGRE tunnel offload

  • PXE boot, Wake-on-LAN, IPv4/IPv6 support

  • Thermal-awareness with HPESea of Sensors 3D

  • Low power (~10.5 W typical operational)

  • Includes low-profile and full-height brackets

  • Backward compatibility with 1 GbE networks

Specification	Details
Model Number	817745-B21
Product Type	Dual-Port 10 GbE Network Adapter
Form Factor	FlexibleLOM (FLR-T)
Bus Interface	PCI Express 3.0 ×4
Ports	2 × 10 GbE RJ-45
Controller	Intel X550-AT2
Data Rate	10 Gbps per port, 40 Gbps aggregate
Offload Features	SR-IOV, TSO/LSO, checksum, tunnel offload
Jumbo Frames	Up to 9 K MTU
Virtualization Features	DPDK support, Generic Seg Offload
Network Boot	PXE, Wake-on-LAN
Power Consumption	~10.5 W typical
Operating Temperature	0 °C to 55 °C
Compatibility	HPEProLiant Gen10 (DL/ML/Apollo series)
Cabling	Cat 6A/7 UTP; up to 100 m distance
Dimensions	FLR-T FlexibleLOM size; low- and full-height brackets included
Standards Compliance	IEEE 802.1Q, 802.3ad, 802.1as, RoHS, WEEE
