HPE727054-B21

Ethernet 10Gb 2-Port FlexibleLOM SFP+ Adapter - Model

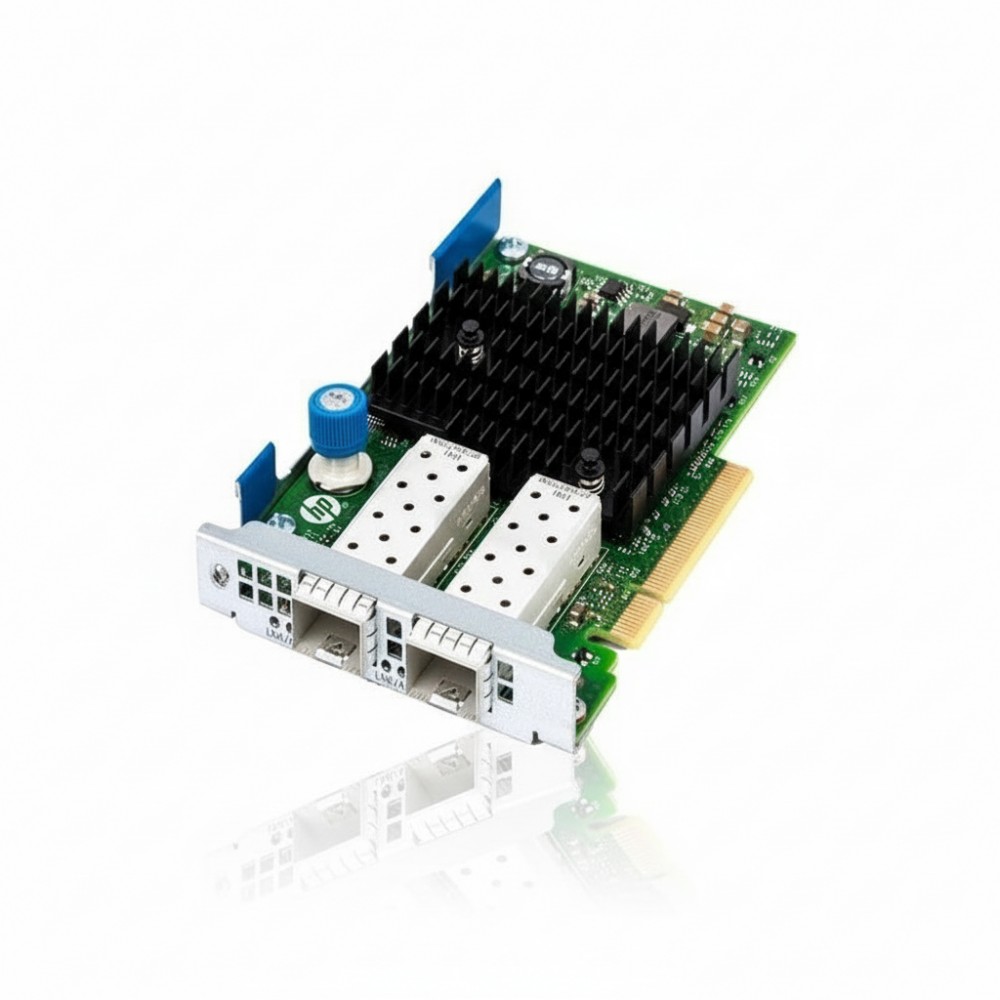

The HPE727054-B21 Ethernet 10 Gb 2-Port 562FLR-SFP+ Adapter is a high-efficiency FlexibleLOM card delivering dual-port 10 GbE connectivity tailored for HPEProLiant Gen9 and Gen10 servers. With advanced offload capabilities and virtualization features, it reliably supports demanding workloads in enterprise and data center environments.

Features

Built on the Intel X710 chipset, this adapter balances performance and energy efficiency in a compact FlexibleLOM design. It connects via PCI Express 3.0 x8 lanes and offers two SFP+ ports to support fiber uplinks. Ideal for virtualization, storage, or HPC applications, it achieves up to 40 Gb/s bi-directional aggregate bandwidth and supports overlay protocols such as VXLAN and NVGRE for scalable network virtualization

Advanced Options

Equipped with support for PXE boot, Wake-on-LAN (on port 1), and jumbo frames to 9.5 KB, the adapter minimizes CPU load with features like RSS, large send offload, and timestamping (IEEE 1588). It is optimized for virtualization with support for VMware NetQueue, Microsoft VMQ, and Intel VT-c connectivity offload

Product Key Features

• • Dual 10 Gb SFP+ ports via Intel X710 controller

  • FlexibleLOM form factor, PCIe Gen3 x8 interface

  • Supports virtualization enhancements: SR-IOV, RSS, DPDK

  • Stateless offloads for VXLAN / NVGRE; PXE & WOL support

  • Jumbo frame support (up to 9.5 KB MTU) for high-throughput

  • Compatible with HPEProLiant Gen9/Gen10 servers

---

Reliability & Performance

Engineered for enterprise resiliency, this FlexibleLOM adapter runs on a single-chip architecture to reduce power draw (~12 W typical) while maintaining near line-rate performance. It supports stateless offloads, SR-IOV for virtual machine acceleration, and DPDK for low-latency packet processing. Enhanced diagnostics via Active Health System and sensor integration enable efficient thermal management and fault resolution

Key Features :

• • Dual 10 Gb SFP+ ports with Intel X710 controller

  • FlexibleLOM card, PCIe 3.0 x8 connection

  • SR-IOV, RSS, DPDK, VXLAN/NVGRE offloads

  • Jumbo frame support up to 9,500 bytes

  • PXE boot and Wake-on-LAN enabled (on port 1)

  • Wake-on-LAN, PXE, VLAN, LACP, LLDP, Qau support

  • Server-certified for HPEProLiant Gen9 / Gen10 systems

  • Designed for virtualization: VMware NetQueue, Microsoft VMQ, Intel VT-c

  • Low power (~12 W typical) for efficiency

  • RoHS compliant; FCC, CE, VCCI, UL certifications

Specification	Details
Model Number	727054-B21 (562FLR-SFP+)
Product Type	Dual-port 10 Gb Ethernet FlexibleLOM Adapter
Controller	Intel X710
Port Type	2 × SFP+ (10 GbE)
Interface	PCI Express 3.0 x8 (Gen3)
Aggregate Throughput	20 Gb/s per port, 40 Gb/s bidirectional total
Jumbo Frame Support	Up to 9,500 bytes
Virtualization Features	SR-IOV, RSS, VMware NetQueue, Microsoft VMQ, Intel VT-c
Overlay Support	VXLAN and NVGRE offloads
Boot / Power Features	PXE boot, Wake-on-LAN (port 1)
Power Consumption	~12 W typical
Thermal / Diagnostics	HPEActive Health System, sensor integration
Compliance & Certifications	RoHS, FCC, CE, VCCI, UL
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Supported Servers	HPEProLiant DL/DL360, DL380, DL560, Apollo Gen9 / Gen10, etc.
Warranty	Up to 3-year limited warranty via host server (minimum 1 year)
