Detailed Specifications

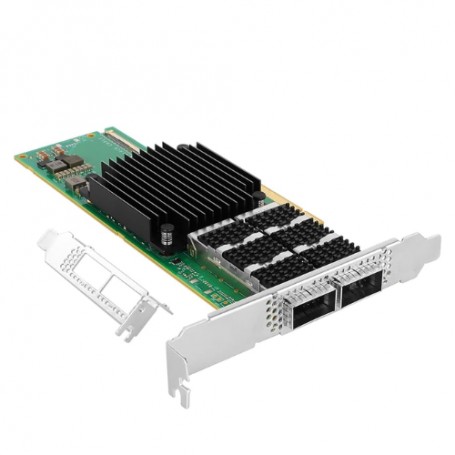

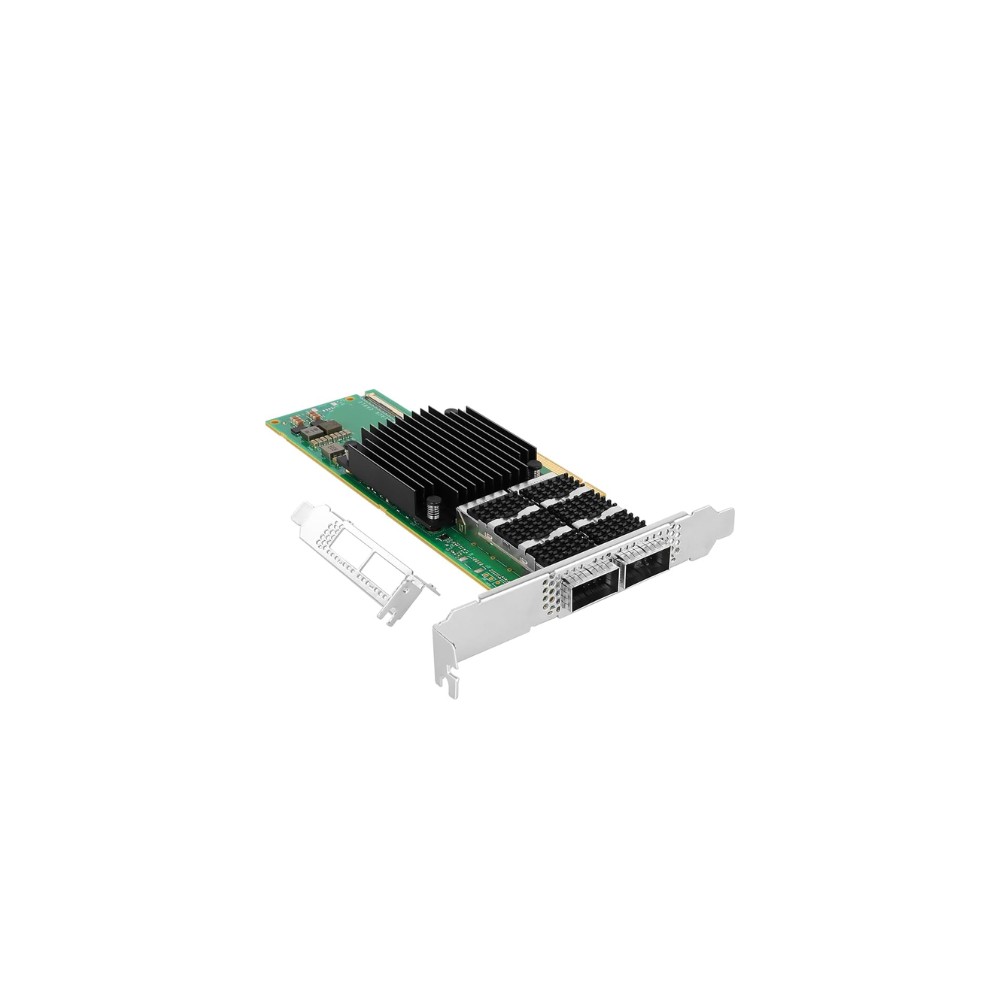

Nvidia MCX653106A-HDAT ConnectX 6 VPI 200Gb Adapter Card
Overview :
The Nvidia MCX653106A-HDAT is a ConnectX-6 VPI network adapter designed for high-performance InfiniBand and Ethernet fabrics in enterprise and HPC environments. It provides dual QSFP56 ports capable of up to 200 Gb/s per port, enabling low-latency connectivity for compute and storage clusters. The card fits a PCIe 4.0 x16 slot and supports backward compatibility with PCIe 3.0 systems, offering flexible deployment across server platforms. It integrates advanced offloads including RDMA and virtualization features, making it suitable for large-scale data center and cloud infrastructures.
Key Features :
Dual QSFP56 ports, 200 Gb/s each
PCIe 4.0 x16 host interface
HDR InfiniBand & 200GbE support
Tall bracket for stand-up PCIe slots
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Nvidia |
| Part Number | MCX653106A-HDAT |
| Product Type | ConnectX-6 VPI Network Adapter |
| Data Rate | Up to 200 Gb/s per port |
| Port Configuration | Dual QSFP56 |
| Supported Protocols | HDR InfiniBand, 200GbE |
| Host Interface | PCIe 4.0 x16 (backward PCIe 3.0) |
| Form Factor | Stand-up PCIe card (tall bracket) |
| Advanced Offloads | RDMA, RoCE, SR-IOV |
| Operating Temp. | 0 - 55 °C |
| Compliance | RoHS |
| PCIe Compatibility | PCIe 4.0 / PCIe 3.0 |
