Detailed Specifications

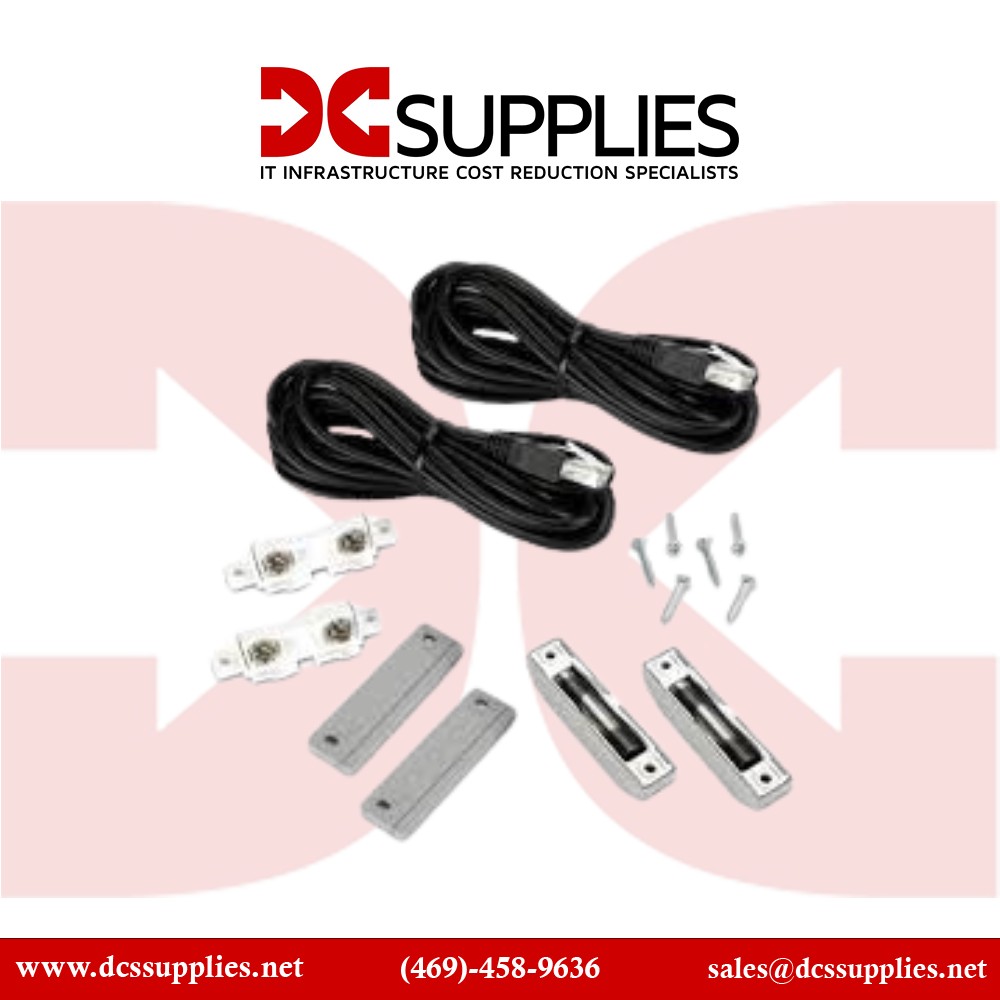

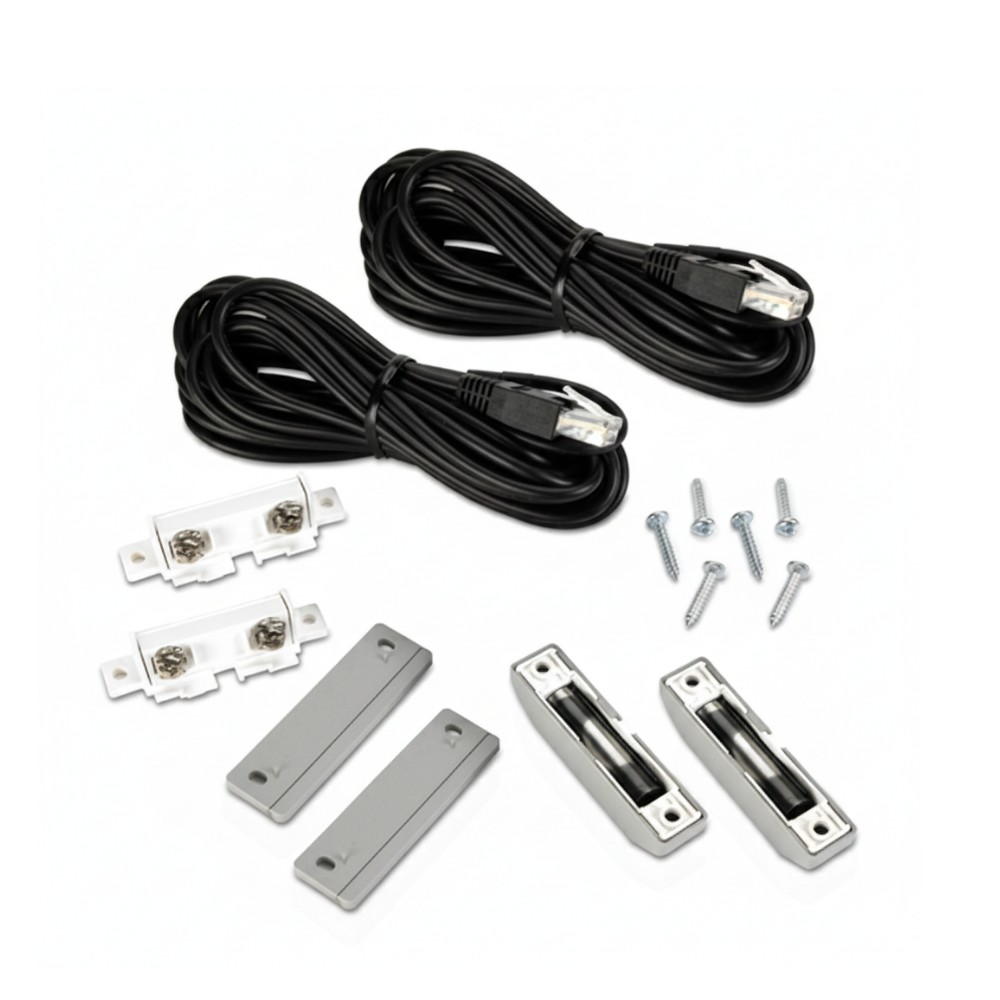

APC NBES0303 - NetBotz 2-Door Switch Sensor
Overview :
The APC NBES0303 is a wired dual-door switch sensor used to monitor rack enclosure doors. It is aimed at data center and IT infrastructure teams needing physical access alerts. This sensor integrates with the NetBotz line (e.g. 250A, 750, 755) to detect front/rear door open/close states via magnetic switches. It is typically deployed on racks, cages, or enclosures in branch, campus, or data-center settings. It works under the management environment of APC/Schneider Electric's NetBotz monitoring platform.
Key Features :
Monitors two doors (front + rear) via magnetic switches
12 ft (3.66 m) RJ-45 wired cable for sensor connection
Extensible cable run up to 100 ft (30.5 m) via standard CAT5/6
Automatically detected by NetBotz appliances
Specifications :
| Specification | Value |
|---|
| Brand | APC / Schneider Electric |
| Part Number | NBES0303 |
| Product Type | Door switch sensor (dual) |
| Cable Length | 12 ft (3.66 m) |
| Door Sensors | 2 magnetic switch pairs (front + rear) |
| Cable Extension Capability | Up to 100 ft (30.5 m) using CAT-5/6 cables via RJ-45 coupling |
| Compatibility | NetBotz 250A, 750, 755 (and compatible NetBotz appliances) |
| Operating Temperature | 32 to 113 °F (0 to 45 °C) |
| Storage Temperature | 5 to 149 °F (-15 to 65 °C) |
| Operating Humidity | 0 to 95 % RH |
| Storage Humidity | 0 to 95 % RH |
| Mounting | Not rack-mountable |
| Dimensions (W × D × H) | 5.75 in × 7.36 in × 0.75 in (14.6 cm × 18.7 cm × 1.9 cm) |
| Weight | 0.82 lb (0.37 kg) |
| Compliance | RoHS, REACH (no SVHC) |
| Warranty | 2 years (repair or replace) |
