APC NBES0306 by Schneider Electric NetBotz Vibration Sensor View larger
Previous Next

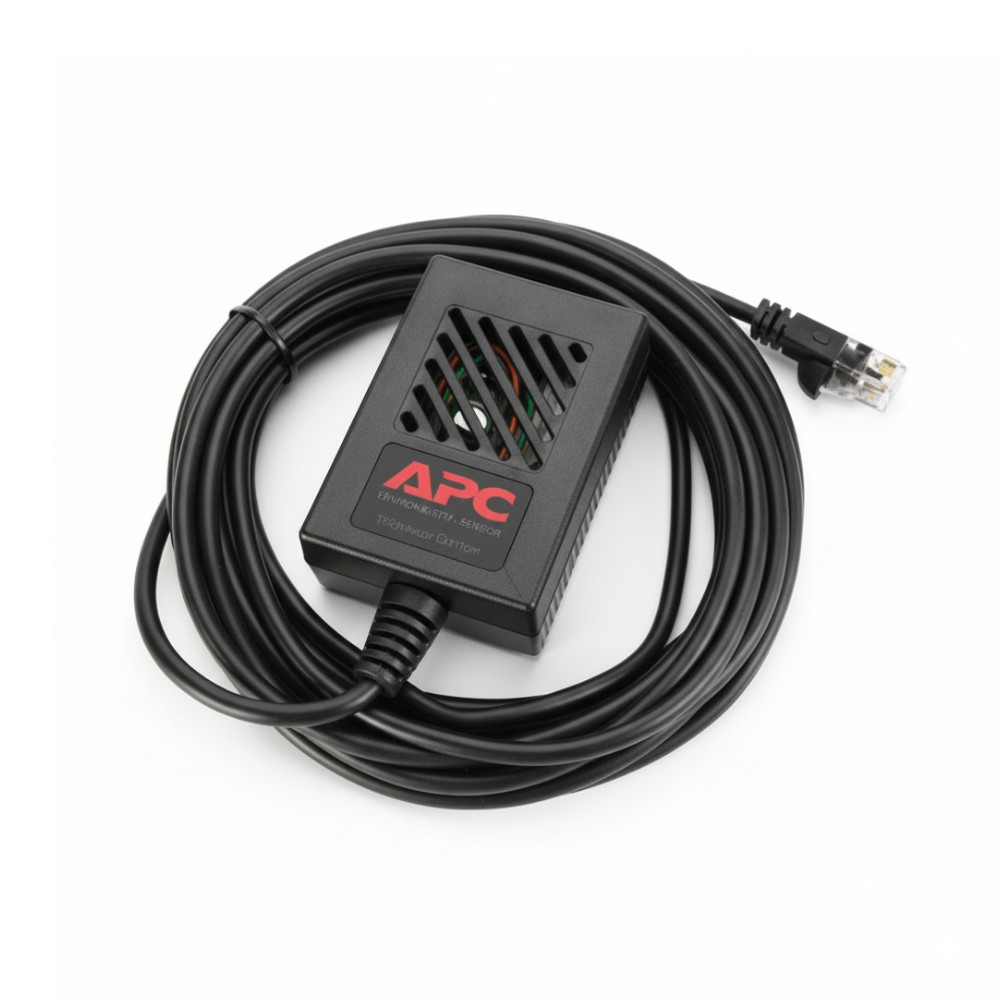

APC NBES0306 by Schneider Electric NetBotz Vibration Sensor

New

Detects vibration in racks to monitor IT asset movement
×




  • New

Detailed Specifications

APC

NBES0306

NetBotz Vibration Sensor – 12 ft Vibration Detection Cable

The APC NBES0306 NetBotz Vibration Sensor is a wired motion sensor designed to detect rack or cabinet movement—ideal for flagging unauthorized tampering or seismic tremors. Equipped with a 12-foot RJ‑45 cable, it provides early vibration alerts to protect critical IT assets.

Features

Once plugged into a compatible NetBotz appliance (250A, 750, or 755 series), the sensor is auto-detected, offering plug-and-play ease.It incorporates a piezoelectric film element calibrated to detect meaningful motion—such as rack shifts—while ignoring minor disturbances like foot traffic

Advanced Options

The cable is extendable up to 100 feet using CAT5/6 infrastructure, allowing flexible placement in and around racks or rooms .

Product Key Features

  • 12‑ft wired vibration sensor with RJ‑45 connector

  • Universal compatibility with NetBotz 250A, 750, and 755 series

  • Auto-detection for seamless integration

  • Extendable to 100 ft via CAT5/6 cable

  • Compact form for versatile placement

  • Cable ties included

Reliability & Performance

Built to meet data center standards, the sensor operates in environments from 0–45 °C and up to 95 % relative humidity. It uses a robust piezo-film element that only triggers on significant vibrations—enough to catch potential threats like rack tampering or equipment movement—while avoiding false alarms. The unit includes cable ties for secure mounting and comes with a 2-year repair-or-replace warranty and RoHS compliance

Key Features (Bullet List)

  • 12 ft vibration detection cable

  • RJ‑45 auto‑detect interface

  • Compatible with NetBotz rack/room monitors

  • Extendable to 100 ft

  • Piezoelectric film for rack-movement alerts

  • Includes cable ties

Specifications :

SpecificationDetails
Model Number NBES0306
Product Type Wired Vibration Sensor
Cable Length 12 ft (3.66 m), Extendable to 100 ft via CAT5/6
Connector RJ‑45
Sensor Type Piezoelectric Vibration Sensor
Compatibility NetBotz 250A, 750, 755 Series
Operating Temperature 0–45 °C (32–113 °F)
Operating Humidity 0–95 % RH
Operating Elevation 0–3,048 m (0–10,000 ft)
Storage Temperature –15–65 °C (5–149 °F)
Sensor Dimensions (H × W × D) 1″ × 4.6″ × 4.8″ (25 × 117 × 121 mm)
Weight 0.29 lb (0.13 kg)
Cable Ties Included Yes
Warranty 2-Year Repair or Replace
Compliance RoHS, REACH
