Detailed Specifications
YEALINK 1109945 - Native Zoom Rooms Multi-Camera Kit
Overview
The Yealink ZVC S98-C5U-004 (MPN: 1109945) is an enterprise-tier, multi-camera native Zoom Rooms hardware ecosystem custom-configured for extra-large conference facilities, corporate auditoriums, deep training spaces, and ProAV environments. The package resolves physical sightline restrictions and participant tracking delays across large physical footprints by deploying a distributed triple-camera array that covers deep workspaces without pixelation or empty coverage fields.
The core visual architecture utilizes three distinct SmartVision 80 intelligent cameras managed simultaneously by a centralized AVHub audio-video processor.Each SmartVision 80 features a unique quad-eye sensor design×integrating a mechanical PTZ optical zoom lens, two telephoto modules, and a wide panoramic matrix into a single chassis. Driven by a dedicated Qualcomm processor platform delivering 48 TOPS of edge-AI performance, the system maps room positions to coordinate high-speed multi-camera IntelliFrame tracking, speaker close-ups, and active presenter follow-up streams. Core computing operations are isolated on a fourth-generation MCore 4 mini-PC, featuring an Intel Core Ultra 5 AI processor with hardware-level encryption under Windows 11 IoT. Centralized meeting management is routed through an 11.6-inch MTouch Plus touch console linked via a specialized RCH40 E2 Gigabit PoE+ distribution hub, backed by a wireless RoomSensor for environmental monitoring and automated room wake-up scripts. Do not deploy this multi-camera network infrastructure without a dedicated PoE+ power budget or on first-generation non-Pro AV hubs, as active multi-stream AI processing demands strict throughput validation across all network junctions.
Key Features
Three SmartVision 80 quad-eye cameras deliver real-time multi-angle room coverage.
20x true optical zoom handles distant subjects up to 20 meters away cleanly.
AVHub audio-video processor manages up to 9 cameras for flexible layouts.
Intel Core Ultra 5 mini-PC with built-in NPU drives responsive 4K AI video tracking.
Included RCH40 E2 PoE+ switch simplifies multi-node device power deployment.
Specifications
| |
| Brand | Yealink |
| Part Number | 1109945 |
| Product Type | Native Zoom Rooms Multi-Camera Kit |
| Model Designation | ZVC S98-C5U-004 |
| Preloaded Software Environment | Windows 11 IoT Enterprise x64, Native Zoom Rooms App |
| Central Computing Unit | MCore 4 Mini-PC (Intel Core Ultra 5 125H AI NPU Core) |
| System Memory & Storage | 16GB DDR5 RAM (Dual-Channel) / 256GB NVMe M.2 SSD |
| Distributed Optical Sensors | 3 x SmartVision 80 Intelligent Quad-Eye Moving PTZ Cameras |
| PTZ Camera Field of View | 69° Diagonal / 61.5° Horizontal / 36° Vertical |
| Panoramic Camera Field of View | 110° Diagonal / 98° Horizontal / 82° Vertical |
| Lossless Zoom Factor | 20x True Mechanical Optical Zoom (Via PTZ Block) |
| Audio-Video Processor Node | AVHub Multi-Device Router (Supports Up to 9 Cameras / 8 Mics) |
| Central Touch Console | MTouch Plus 11.6-inch IPS Capacitive Touchscreen (1920 x 1080) |

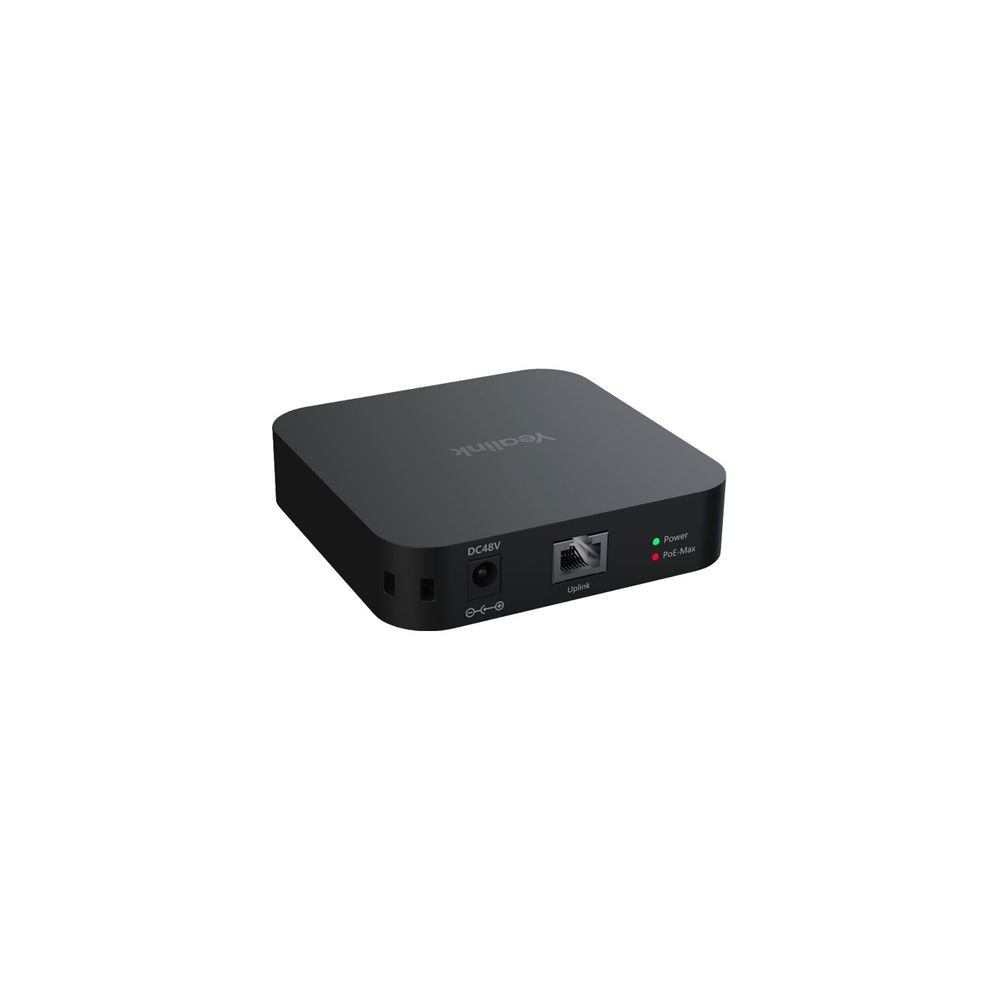

| Network Distribution Hub | RCH40 E2 4-Port Gigabit PoE+ Switch (90W Total Power Budget) |
| Local Integration Link | BYOD-Extender (1.5m USB-A To Dedicated VCH RJ-45 Bus) |
| Environmental Monitor | RoomSensor (120° Passive Infrared Engine, Temp, Humidity, Light) |
| Wired I/O Interfaces (Compute) | 1 x HDMI 2.1 Out, 2 x HDMI 2.0 Out, 1 x HDMI-In, 4 x USB 3.0 Type-A |
