Detailed Specifications

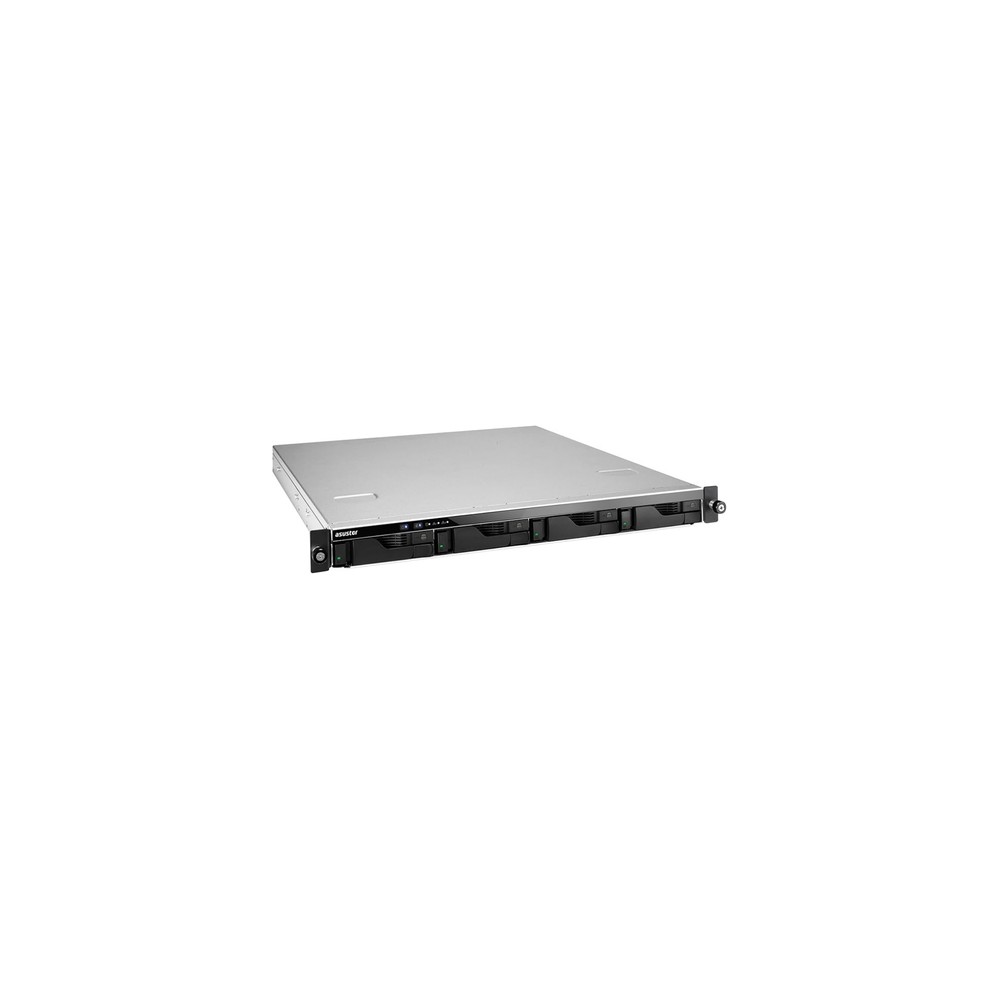

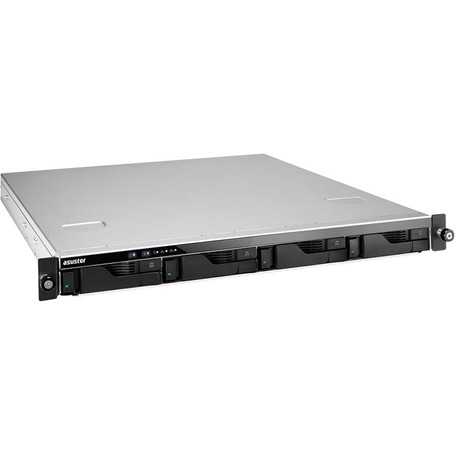

ASUSTOR AMERICA AS6504RS 1U Rackmount Network Storage
Overview :
The ASUSTOR AS6504RS is a high-performance 1U rackmount NAS optimized for small and medium-sized businesses requiring reliable, dense storage.It features an Intel Atom C3538 quad-core processor and 8GB of DDR4 memory, providing the computational power necessary for demanding file-sharing, virtualization, and backup tasks in professional environments.
The unit offers flexible networking with dual 2.5GbE and dual Gigabit Ethernet ports, supporting link aggregation for increased throughput.A PCIe 3.0 expansion slot allows for the integration of 10GbE network interface cards, ensuring future-proof connectivity.With four hot-swappable drive bays and support for multiple RAID levels, the AS6504RS delivers a balance of data protection, storage capacity, and compact 1U form factor efficiency for server rooms.
This storage solution is ideal for centralized data management and secure offsite backup via MyArchive technology. It supports extensive virtualization environments, including VMware, Citrix, and Hyper-V.
Key Features :
High-performance 2.1GHz quad-core Intel Atom server CPU.
1U rackmount form factor for efficient server room deployment.
Dual 2.5GbE and dual GbE ports for reliable network throughput.
PCIe 3.0 expansion slot for optional 10GbE networking upgrades.
Supports RAID 0, 1, 5, 6, 10, and JBOD for flexible data security.
Specifications :
| Specification | Details |
| Brand | ASUSTOR |
| Part Number | AS6504RS |
| Product Type | Network Attached Storage (NAS) |
| Total Drive Bays | 4 |
| Drive Compatibility | 3.5" or 2.5" SATA HDD/SSD |
| CPU | Intel Atom C3538 Quad-Core 2.1GHz |
| Memory | 8GB DDR4 SO-DIMM (Max 128GB) |
| Networking | 2 x 2.5GbE, 2 x Gigabit Ethernet |
| RAID Support | 0, 1, 5, 6, 10, Single, JBOD |
| Form Factor | 1U Rackmount |
| Power Supply | 250W Internal |
| Expansion Slots | 1 x PCIe 3.0 x8 (x4 link) |
| External Ports | 4 x USB 3.2 Gen 1 |
| Operating Temp | 0°C to 40°C |
