Detailed Specifications

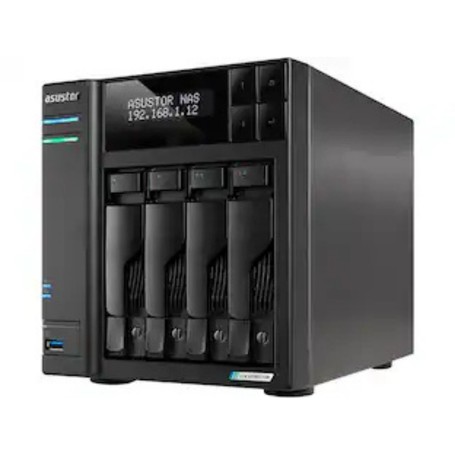

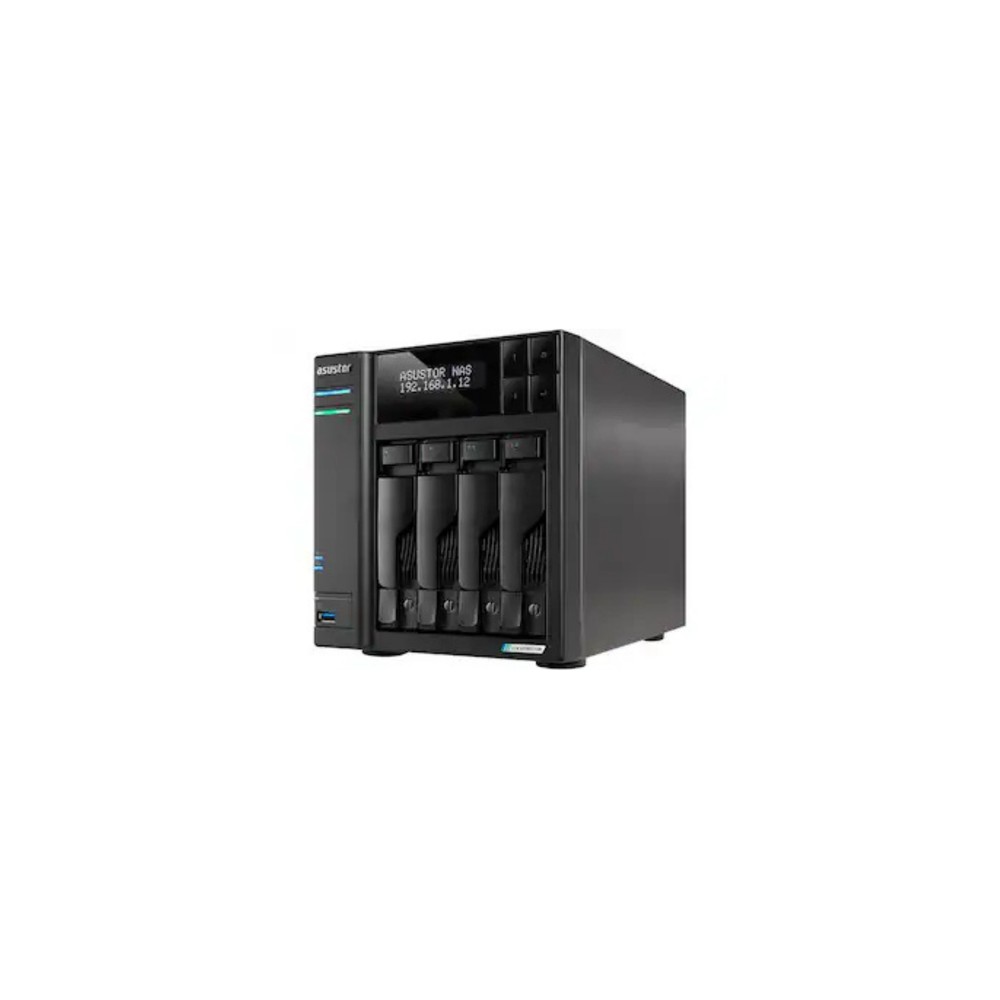

ASUSTOR AMERICA INC AS6804T Lockerstor 4 Gen3 NAS System
Overview :
The ASUSTOR AS6804T (Lockerstor 4 Gen3) is a high-performance hybrid NAS designed for enterprise storage, virtualization, and high-throughput data workflows. It is widely deployed in media production, backup infrastructure, small-to-mid enterprise storage clusters, and edge data center environments requiring both NVMe acceleration and SATA capacity storage.
It combines 4 × SATA drive bays with 4 × M.2 NVMe slots, enabling tiered storage architectures where NVMe handles high-speed caching or primary workloads while HDDs provide scalable bulk storage. It is powered by an AMD Ryzen Embedded V3C14 quad-core processor and ECC DDR5 memory for data integrity and stable 24/7 operation.
The system supports high-bandwidth networking through dual 10GbE and dual 5GbE ports, making it suitable for multi-user file sharing, virtualization storage backends, and high-resolution media editing pipelines.
It is not suitable for lightweight home-only storage use where high throughput or multi-user access is not required.
Key Features :
- Hybrid 4× SATA + 4× NVMe architecture for tiered storage performance
- AMD Ryzen Embedded V3C14 quad-core CPU up to 3.8GHz turbo boost
- Dual 10GbE + dual 5GbE networking for high-bandwidth workloads
- ECC DDR5 memory support up to 64GB for enterprise data integrity
- USB4 (40Gbps) ports for ultra-fast external SSD and backup workflows
Specifications :
| Specification | Details |
|---|
| Brand | ASUSTOR AMERICA INC |
| Part Number | AS6804T |
| Product Type | Hybrid NAS (SATA + NVMe Storage) |
| CPU | AMD Ryzen Embedded V3C14 Quad-Core |
| CPU Frequency | 2.3 GHz base / up to 3.8 GHz turbo |
| Memory | 16GB DDR5-4800 ECC (preinstalled) |
| Max Memory | Up to 64GB ECC DDR5 |
| Storage Bays | 4 × 3.5"/2.5" SATA HDD/SSD |
| M.2 Slots | 4 × NVMe SSD (PCIe Gen4) |
| Network Interfaces | 2 × 10GbE + 2 × 5GbE |
| USB Ports | 2 × USB4 + 3 × USB 3.2 Gen2 |
| Expansion | PCIe slot for optional NIC expansion |
| Operating System | ASUSTOR ADM |
| RAID Support | RAID 0 / 1 / 5 / 6 / 10 |
| Form Factor | Desktop NAS (tower chassis) |
| Power Consumption | ~34W operating (approx.) |
| Chassis Dimensions | 185.5 × 170 × 230 mm |
