Detailed Specifications

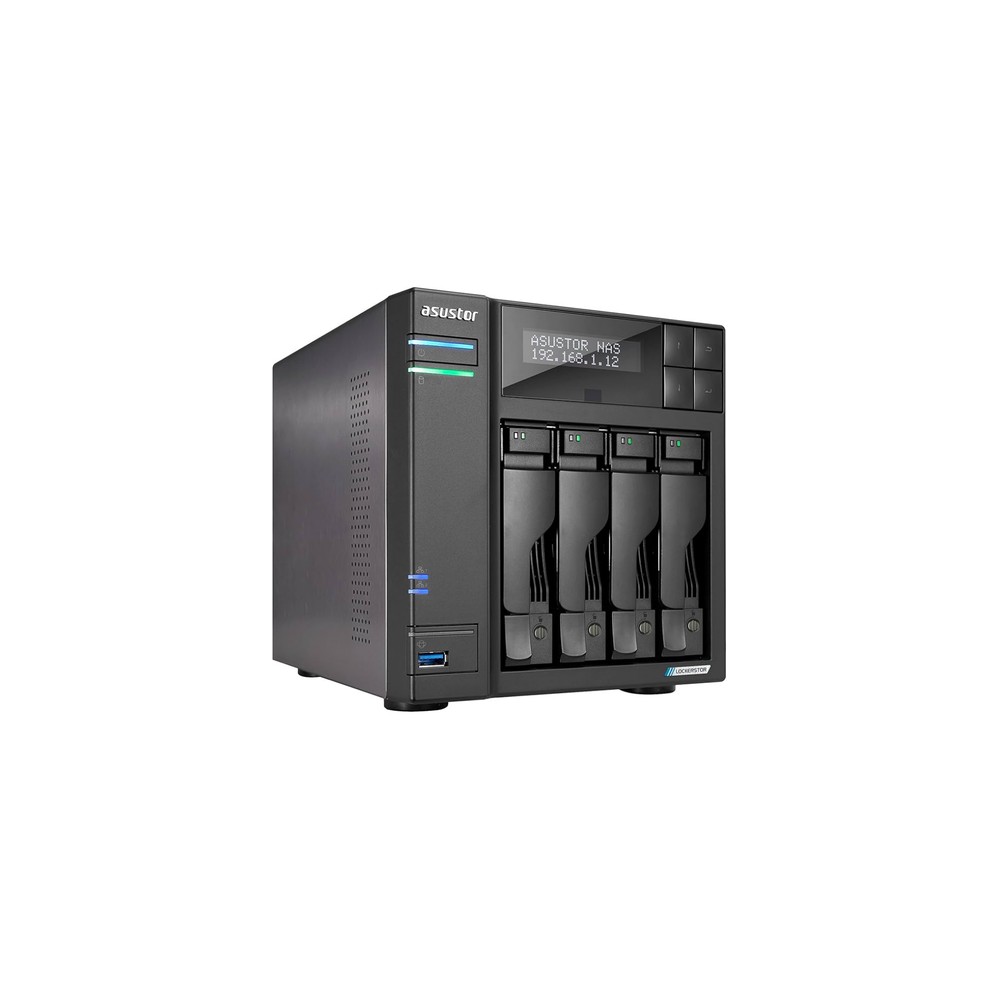

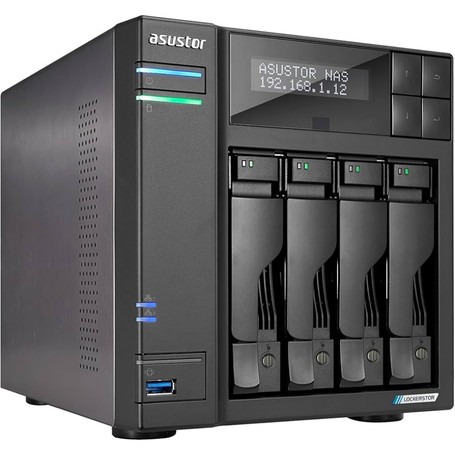

ASUSTOR AMERICA AS6704T V2 4-Bay Network Attached Storage
Overview :
The ASUSTOR AS6704T V2, also known as the LOCKERSTOR 4 Gen2+, is a high-performance 4-bay NAS platform designed for business storage, content creation, virtualization, backup infrastructure, and collaborative file-sharing environments. It combines Intel x86 processing, NVMe SSD acceleration, and multi-gigabit networking in a compact desktop form factor.
Powered by an Intel Celeron N5105 quad-core processor operating at 2.0GHz with turbo frequencies up to 2.9GHz, the system delivers reliable performance for file services, multimedia applications, virtual machines, and business workloads. The platform includes 4GB DDR4 memory and supports expansion up to 16GB.
The NAS features four hot-swappable SATA III drive bays and four M.2 NVMe SSD slots that can be used for SSD caching or high-speed storage pools. Dual 5 Gigabit Ethernet ports support SMB Multichannel and provide significantly higher network throughput for demanding multi-user environments.
The AS6704T V2 is well suited for creative teams, small and medium businesses, private cloud deployments, and professional backup environments. It is not intended for organizations requiring rack-mounted storage systems or enterprise dual-controller architectures.
Key Features :
- Intel Celeron N5105 quad-core processor
- Dual 5GbE ports for high-speed connectivity
- Four NVMe SSD slots for cache acceleration
- Expandable DDR4 memory up to 16GB
- Supports advanced RAID data protection modes
Specifications :
| Specification | Details |
|---|
| Brand | ASUSTOR |
| Part Number | AS6704T V2 |
| Product Type | 4-Bay Network Attached Storage (NAS) |
| Processor | Intel Celeron N5105 Quad-Core |
| Processor Speed | 2.0GHz (Burst up to 2.9GHz) |
| Processor Architecture | 64-bit x86 |
| Memory | 4GB DDR4 SO-DIMM |
| Maximum Memory | 16GB DDR4 |
| Flash Memory | 8GB eMMC |
| Drive Bays | 4 × SATA III Hot-Swap Bays |
| M.2 Slots | 4 × M.2 2280 NVMe SSD Slots |
| Network Interfaces | 2 × 5 Gigabit Ethernet RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 2, 1 × USB 2.0 |
| HDMI | 1 × HDMI 2.0b |
| RAID Support | RAID 0, 1, 5, 6, 10, JBOD |
| PCIe Expansion | 1 × PCIe 3.0 Slot |
