Detailed Specifications

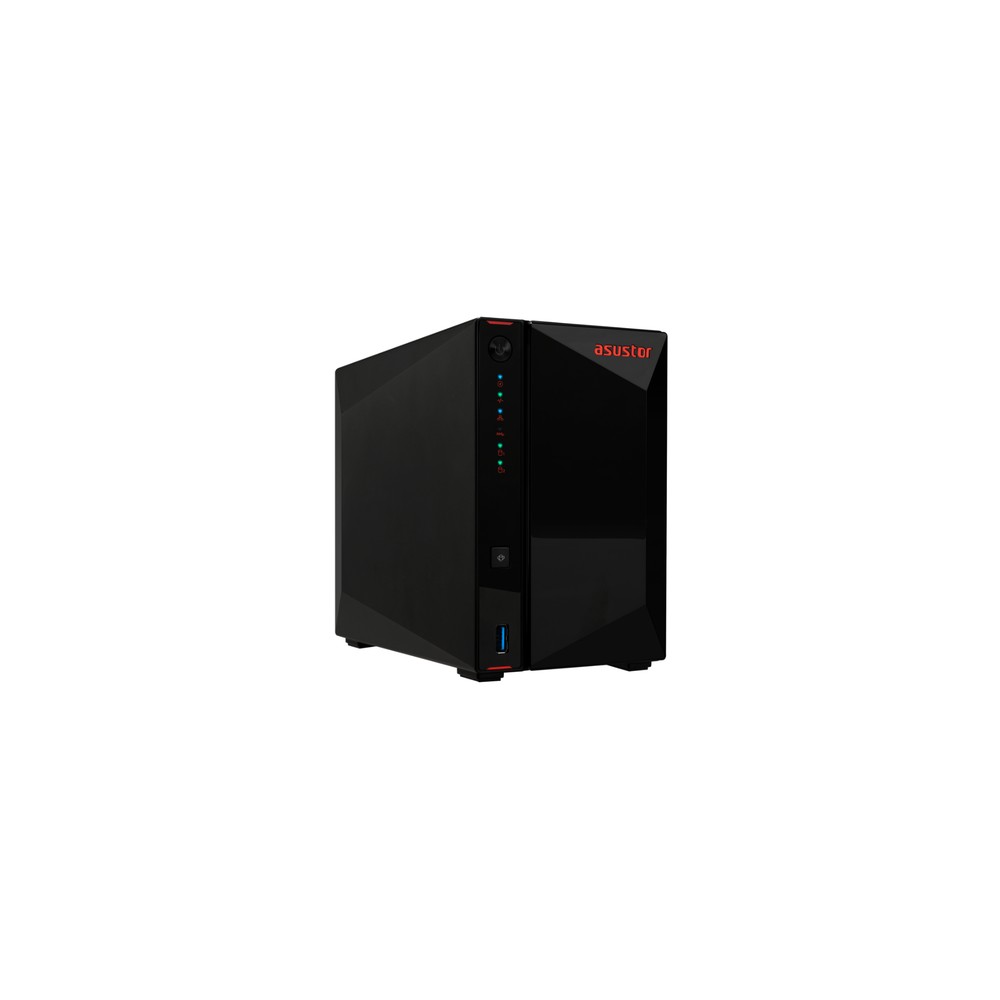

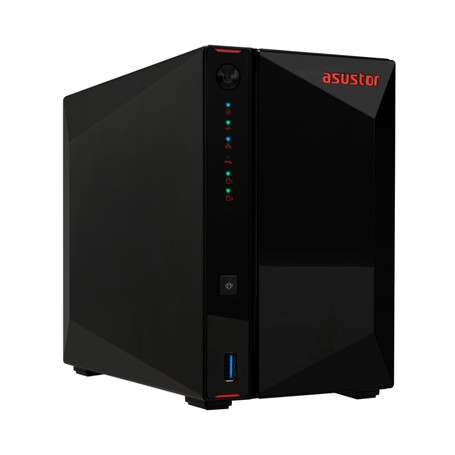

ASUSTOR AMERICA AS5402T 2-Bay Network Attached Storage
Overview :
The ASUSTOR AS5402T, marketed as the NIMBUSTOR 2 Gen2, is a high-performance 2-bay NAS platform designed for content creators, multimedia professionals, home labs, and small business environments. It combines Intel x86 processing, dual 2.5 Gigabit Ethernet connectivity, and NVMe SSD support to deliver responsive storage, backup, and collaboration services.
The system is powered by an Intel Celeron N5105 quad-core processor running at 2.0GHz with burst frequencies up to 2.9GHz. It includes 4GB DDR4 memory and supports expansion up to 16GB, making it suitable for file sharing, multimedia streaming, backup repositories, and private cloud deployments.
Four integrated M.2 NVMe SSD slots allow SSD caching or high-speed storage volumes, while dual 2.5GbE ports provide increased network bandwidth for multi-user environments. Additional connectivity includes three USB 3.2 Gen 2 ports and an HDMI 2.0b interface for multimedia applications.
The AS5402T is well suited for users seeking fast storage performance, media management, and data protection in a compact desktop appliance. It is not intended for enterprise environments requiring rack-mounted infrastructure or ECC memory support.
Key Features :
- Intel Celeron N5105 quad-core processor
- Dual 2.5GbE ports for faster network throughput
- Four NVMe SSD slots for cache or storage tiers
- Three USB 3.2 Gen 2 ports at 10Gbps speeds
- Expandable DDR4 memory up to 16GB capacity
Specifications :
| Specification | Details |
|---|
| Brand | ASUSTOR |
| Part Number | AS5402T |
| Product Type | 2-Bay Network Attached Storage (NAS) |
| Processor | Intel Celeron N5105 Quad-Core |
| Processor Speed | 2.0GHz (Burst up to 2.9GHz) |
| Processor Architecture | x64 64-bit |
| Memory | 4GB DDR4-2933 SO-DIMM |
| Maximum Memory | 16GB DDR4 |
| Flash Memory | 8GB eMMC |
| Drive Bays | 2 × SATA III Hot-Swap Bays |
| M.2 Slots | 4 × M.2 2280 NVMe SSD Slots |
| Network Interfaces | 2 × 2.5 Gigabit Ethernet |
| USB Ports | 3 × USB 3.2 Gen 2 (10Gbps) |
| HDMI | 1 × HDMI 2.0b |
| Power Adapter | 65W External AC Adapter |
