Detailed Specifications

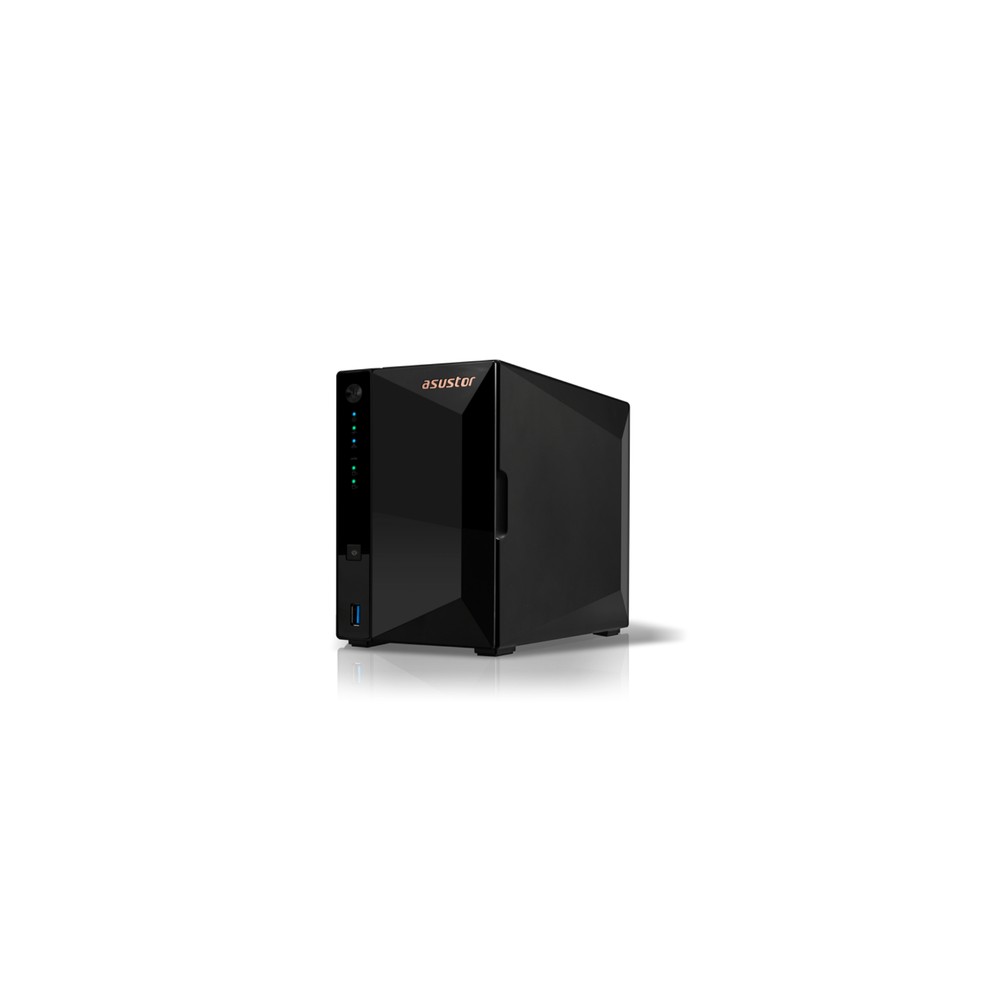

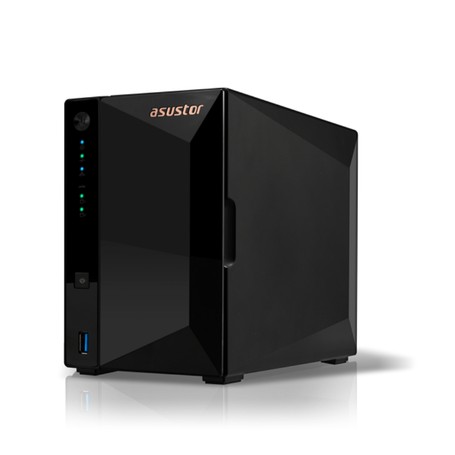

ASUSTOR AS3302T V2 2-Bay NAS Storage System
Overview :
The ASUSTOR AS3302T V2, also known as the DRIVESTOR 2 Pro Gen2, is a 2-bay network attached storage (NAS) platform designed for home users, content creators, small offices, and edge deployments requiring centralized file storage and data protection. It provides shared storage, backup, multimedia streaming, and private cloud capabilities in a compact desktop form factor.
Powered by a Realtek RTD1619B quad-core processor running at 1.7GHz and equipped with 2GB DDR4 memory, the system supports file sharing, RAID protection, snapshots, and media applications. The integrated 2.5 Gigabit Ethernet port delivers significantly higher network throughput than traditional Gigabit NAS devices, making it suitable for large file transfers and multimedia workloads.
The unit supports two SATA III drive bays for 3.5-inch HDDs, 2.5-inch HDDs, or SSDs and includes three USB 3.2 Gen 1 ports for external storage expansion and backup. It is commonly deployed in home offices, creative workspaces, branch offices, and surveillance environments requiring centralized storage and data protection.
This model is appropriate for users seeking affordable shared storage and backup functionality. It is not intended for workloads requiring expandable memory, HDMI output, or high-performance virtualization typically found in enterprise-class NAS platforms.
Key Features :
- Realtek 1.7GHz quad-core ARM processor
- Integrated 2.5GbE network connectivity
- Supports RAID 0, RAID 1, JBOD, and Single
- Three USB 3.2 Gen 1 ports for expansion
- Btrfs snapshots and private cloud storage
Specifications :
| Specification | Details |
|---|
| Brand | ASUSTOR |
| Part Number | AS3302T V2 |
| Product Type | 2-Bay Network Attached Storage (NAS) |
| Processor | Realtek RTD1619B Quad-Core 1.7GHz |
| Memory | 2GB DDR4 (Non-upgradable) |
| Drive Bays | 2 x SATA III 6Gb/s |
| Supported Drives | 3.5" HDD, 2.5" HDD, 2.5" SSD |
| Network Interface | 1 x 2.5 Gigabit Ethernet RJ-45 |
| USB Ports | 3 x USB 3.2 Gen 1 |
| RAID Support | Single, JBOD, RAID 0, RAID 1 |
| Maximum Drive Bays | 14 (with expansion units) |
| Power Adapter | 65W External AC Adapter |
| Operating Temperature | 0°C to 40°C |
| Power Consumption | 13.1W Operation / 4.5W Hibernation |
