Overview

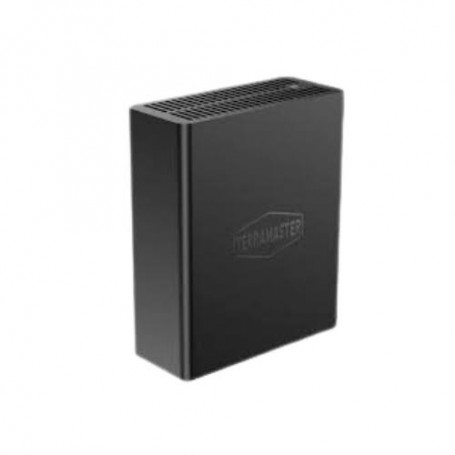

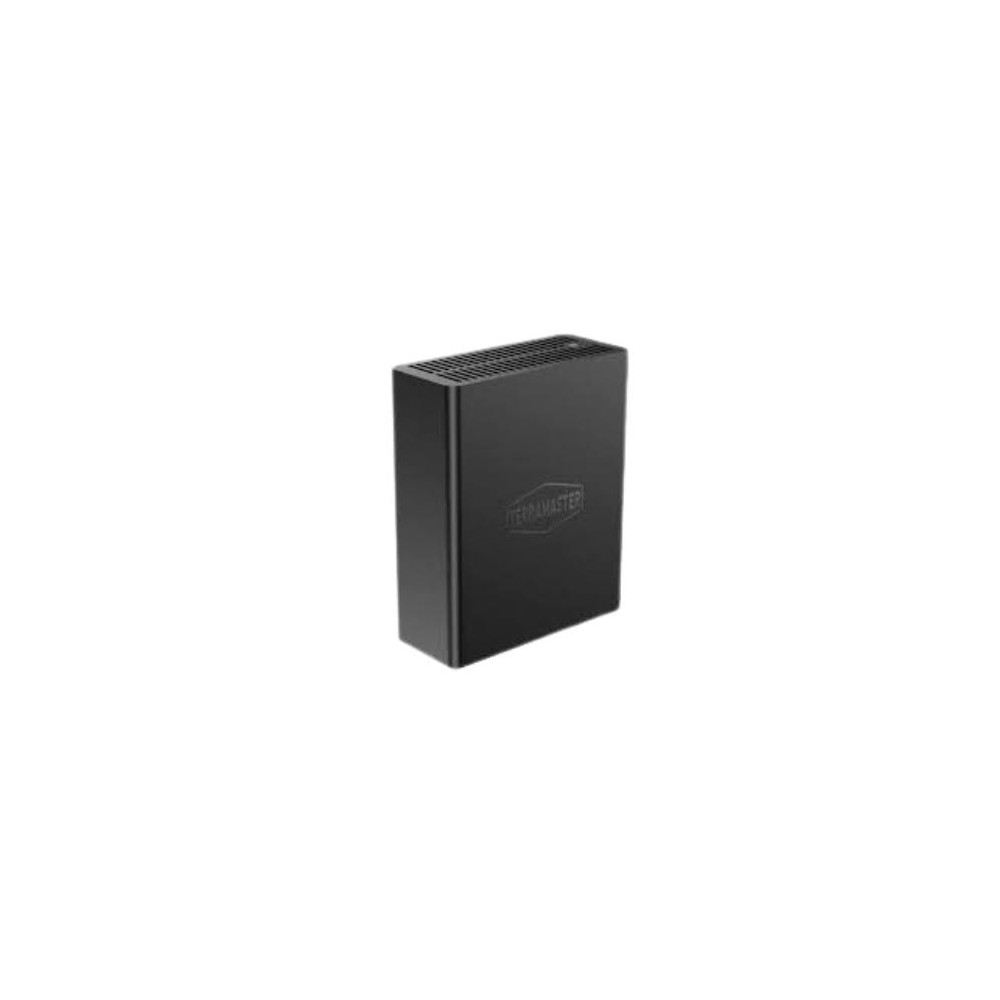

The TerraMaster F8 SSD Plus is a compact, high-performance, 8-bay network-attached storage (NAS) system designed for business storage, backup, virtualization, and media production workflows. Powered by an Intel Core i3-N305 8-core processor and equipped with 16GB DDR5 memory, it combines high-speed NVMe storage with 10GbE network connectivity in a space-saving desktop design. This diskless model allows users to install compatible M.2 NVMe SSDs according to their storage and performance requirements.
Key Features
- 8-Bay NVMe Storage: Supports up to eight M.2 2280 NVMe SSDs.
- Intel Processing: Intel Core i3-N305 processor with 8 cores and boost speeds up to 3.8GHz.
- 16GB DDR5 Memory: Preinstalled memory, upgradeable up to 32GB according to published specifications.
- 10GbE Networking: High-speed Ethernet connection for demanding file-sharing and collaborative workflows.
- Flexible Storage Management: Supports RAID configurations and TerraMaster storage management features.
- Compact Design: Small desktop form factor suited to offices, studios, and business environments.
- External Connectivity: USB ports and HDMI connectivity for supported peripherals and display functions.
Technical Specifications
| Specification | Details |
|---|
| Brand | TerraMaster |
| Part Number / MPN | F8-SSD-PLUS |
| Product Type | 8-Bay Network-Attached Storage (NAS) |
| Processor | Intel Core i3-N305, 8 cores |
| Maximum Processor Frequency | Up to 3.8GHz |
| Installed Memory | 16GB DDR5 non-ECC |
| Maximum Supported Memory | 32GB |
| Drive Bays | 8 × M.2 2280 NVMe SSD |
| Maximum Raw Capacity | Up to 64TB, depending on installed drives and configuration |
| Network Interface | 1 × 10GbE RJ-45 |
| USB Connectivity | USB 3.2 ports; verify port count against the supplied hardware revision |
| Video Output | HDMI |
| Storage Configurations | Includes supported RAID modes and TerraMaster storage options |
| Drive Installation | Diskless; SSDs not included |
Applications
- Business File Storage: Centralize documents and shared files for teams.
- Backup and Recovery: Store backup copies and organize data protection workflows.
- Media Production: Support high-throughput file access for video and creative projects on a suitable network.
- Virtualization and Applications: Provide storage for supported business services and workloads.
- Small Business Infrastructure: Consolidate storage in a compact desktop NAS platform.
Compatibility and Installation
Install compatible M.2 2280 NVMe SSDs in the available drive bays and configure the storage pool using the supported TerraMaster operating system and management tools. Select SSD capacities and RAID settings according to the required usable capacity, redundancy, and workload. A 10GbE-capable switch, network adapter, and suitable cabling may be required to take advantage of the 10GbE interface. Confirm the latest compatibility list before purchasing SSDs or memory upgrades.
Frequently Asked Questions
1. Are SSDs included?
No. The F8 SSD Plus is sold as a diskless NAS, so compatible M.2 NVMe SSDs must be purchased separately.
2. How many SSDs can it support?
It supports up to eight M.2 2280 NVMe SSDs.
3. What processor does it use?
It uses an Intel Core i3-N305 processor with eight cores and a maximum boost frequency of up to 3.8GHz.
4. Does it support 10GbE networking?
Yes. It has a 10GbE RJ-45 network interface. Achievable transfer speeds depend on the network, installed drives, configuration, and workload.
5. What is the maximum supported memory?
Published specifications list 16GB DDR5 memory installed and support for up to 32GB. Check the manufacturer's current compatibility guidance before upgrading.
DC Supplies Product Note
DC Supplies recommends confirming SSD compatibility, required usable capacity, network infrastructure, and backup requirements before purchase. Specifications and supported features may vary by firmware or hardware revision. Please verify the current manufacturer's documentation for your intended deployment.
