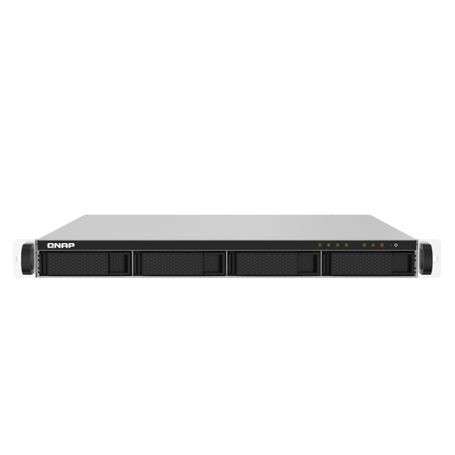

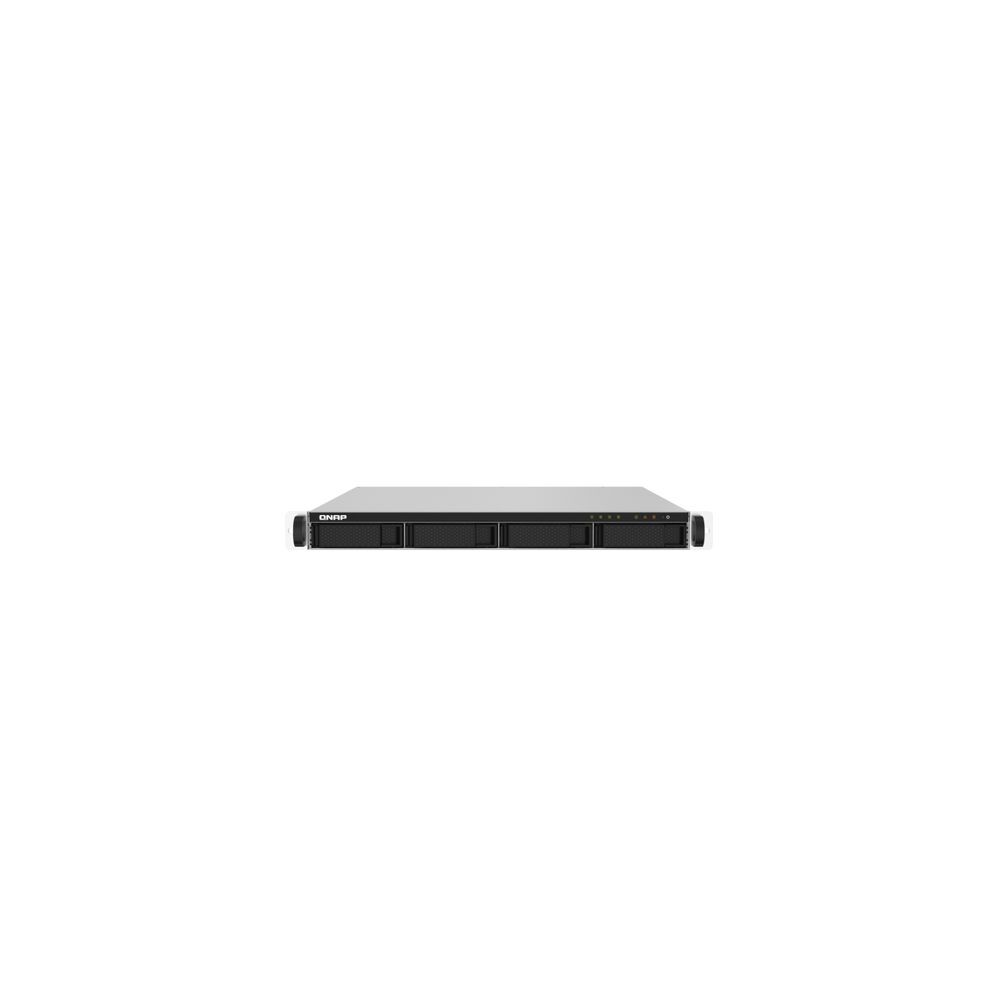

The QNAP TS-432PXU-RP-2G-US is a 1U rackmount NAS solution built for high-availability storage in small-to-medium enterprise environments. It features a quad-core 1.7GHz processor and dual 10GbE SFP+ networking ports, delivering high-speed connectivity for backup and virtualization tasks. The "RP" designation indicates a redundant power supply, providing critical hardware failover to ensure continuous operation in the event of a power module failure.
Technical capability is enhanced by a mix of high-speed 10GbE and 2.5GbE ports, which accommodate varying network infrastructures while eliminating throughput bottlenecks. The system supports four hot-swappable SATA drive bays for flexible storage configurations. Its PCIe Gen 2 slot provides an upgrade path for M.2 SSD caching or additional network interface cards, allowing the system to scale with business growth.
Deployment is targeted at 19-inch server racks where vertical space is at a premium but reliability cannot be compromised. IT teams utilize this unit for site-to-site data replication, snapshot-based backup, and cloud gateway services. It is particularly suited for branch offices or edge computing sites requiring a resilient, high-speed storage node. It is not recommended for compute-heavy virtualization tasks that exceed the limitations of its ARM-based processor.
Redundant power supply ensures 24/7 system uptime and reliability
Integrated 10GbE SFP+ ports deliver high-bandwidth for data-heavy tasks
Snapshot protection enables quick recovery from accidental data loss
HBS 3 technology simplifies backup to local, remote, and cloud targets
PCIe expansion slot allows for SSD caching or faster network upgrades
| Feature | Specification |
| Brand | QNAP |
| Part Number | TS-432PXU-RP-2G-US |
| Product Type | NAS Server |
| Processor | AnnapurnaLabs Alpine AL324 Quad-Core 1.7GHz |
| System Memory | 2GB UDIMM DDR4 (Expandable to 16GB) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s |
| 10GbE Ports | 2 x 10GbE SFP+ |
| 2.5GbE Ports | 2 x 2.5GbE (2.5G/1G/100M) |
| PCIe Slot | 1 x PCIe Gen 2 x2 |
| Power Supply | 2 x 250W Redundant PSU |
| Form Factor | 1U Rackmount |
| USB Ports | 4 x USB 3.2 Gen 1 |
