Detailed Specifications

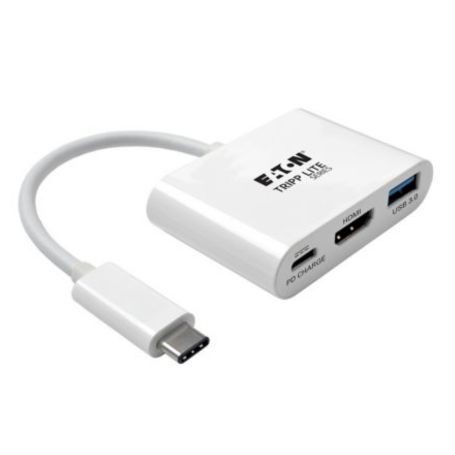

Eaton U444-06N-HU-C Tripp Lite USB C to HDMI Adapter with USB A Port and PD Charging HDCP White
Overview
The Eaton Tripp Lite U444-06N-HU-C is a USB-C multiport adapter that adds HDMI video output, a USB-A hub port, and USB-C Power Delivery charging to compatible laptops, tablets, and other USB-C systems. It supports Full HD 1920 × 1080 video at 60 Hz.
The adapter uses USB DisplayPort Alternate Mode for audio/video transmission and provides USB 3.1 Gen 1 data connectivity up to 5 Gbps through its USB-A port. The USB-C charging input supports up to 60W through 20V/3A Power Delivery.
This adapter is suited to workstation, classroom, conference-room, and mobile-office deployments where a USB-C host needs a single Full HD HDMI display connection plus USB peripheral expansion and host charging. The host USB-C port must support DisplayPort Alternate Mode; it is not intended for USB-C hosts without compatible video output.
Key Features
- Supports Full HD 1920 × 1080 HDMI output at 60 Hz
- USB-A hub port provides USB 3.1 Gen 1 up to 5 Gbps
- USB-C PD input supports host charging up to 60W
- DisplayPort Alt Mode carries audio and video over USB-C
- Plug-and-play operation requires no software or drivers
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U444-06N-HU-C |
| Product Type | USB-C to HDMI Multiport Adapter |
| Host Connector | USB-C Male |
| Video Output | HDMI Female |
| USB Hub Port | USB-A Female |
| Charging Port | USB-C Female |
| Maximum Resolution | 1920 × 1080 @ 60 Hz |
| USB Data Rate | Up to 5 Gbps |
| USB Specification | USB 3.1 Gen 1 / USB 3.2 Gen 1 |
| USB-C PD | Up to 60W, 20V/3A |
| USB-A Charging | Up to 7.5W, 5V/1.5A |
| Video Technology | DisplayPort Alternate Mode |
| HDCP | HDCP 1.3 |
| Color Depth | 30-bit Deep Color |
| Number of Monitors | 1 |
| Power | Bus Powered |
| Operating Humidity | 10%–85% RH, non-condensing |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | 5%–90% RH, non-condensing |
| Color | White |
