Detailed Specifications

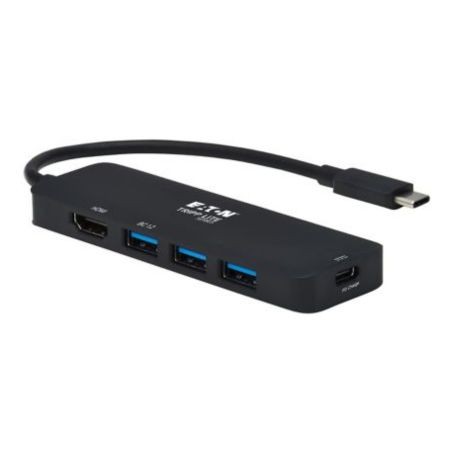

Eaton U444-06N-H3UC2 Tripp Lite USB C Multiport Adapter 4K 60 Hz HDMI 3 USB A Hub Ports 100W PD
Overview
The Eaton U444-06N-H3UC2 is a USB-C multiport hub adapter that adds HDMI video, three USB-A data ports, and USB-C Power Delivery charging to a compatible USB-C or Thunderbolt 3 computer. It is designed for laptops, notebooks, MacBooks, Chromebooks, tablets, and similar systems.
The adapter supports HDMI 2.0 video up to 3840 × 2160 at 60 Hz with a DisplayPort 1.4 host, while DisplayPort 1.2 hosts support 4K at 30 Hz. Its three USB-A ports provide USB 3.1 Gen 1 data transfer up to 5 Gbps. The USB-C PD port supports up to 100W input for charging the connected host.
It is suited to mobile workstations, office desks, conference rooms, classrooms, and presentation environments where one USB-C connection needs to provide display, peripheral connectivity, and host charging. The host must support USB-C DisplayPort Alternate Mode for HDMI output; it should not be used with USB-C systems lacking compatible video output.
Key Features
- Supports 4K HDMI output at up to 60 Hz
- Adds three USB-A ports with 5 Gbps data rates
- USB-C PD supports up to 100W host charging input
- HDR and HDCP 2.2 support compatible video systems
- Compact hub expands a single USB-C workstation port
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U444-06N-H3UC2 |
| Product Type | USB-C Multiport Hub Adapter |
| Host Connector | USB-C Male |
| Video Output | HDMI Female |
| HDMI Standard | HDMI 2.0 |
| Maximum Resolution | 3840 × 2160 at 60 Hz |
| USB-A Ports | 3 × USB-A Female |
| USB-A Standard | USB 3.1 Gen 1 |
| USB-A Data Rate | Up to 5 Gbps |
| USB-C PD | Up to 100W, PD 3.0 |
| Display Technology | DisplayPort Alternate Mode |
| HDR | Supported |
| HDCP | HDCP 1.4 / HDCP 2.2 |
| Number of Displays | 1 |
| Color | Black |
| Warranty | 3-year limited |
