Detailed Specifications

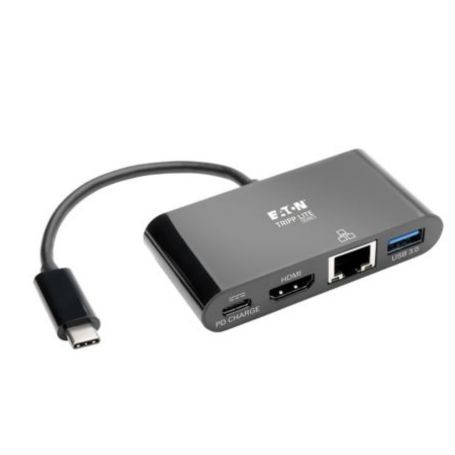

Eaton U444-06N-H4GUBC Tripp Lite USB C Multiport Adapter 4K HDMI USB A Port GbE 60W PD Charging, HDCP, Black
Overview
The Eaton U444-06N-H4GUBC is a USB-C multiport adapter that expands a compatible USB-C or Thunderbolt 3 system with HDMI, USB-A, Gigabit Ethernet, and USB-C Power Delivery connectivity. It is intended for laptops, notebooks, tablets, smartphones, and PCs requiring additional display and peripheral interfaces.
The adapter supports 4K HDMI output up to 3840 × 2160 at 30 Hz. Its USB-A port supports data transfer up to 5 Gbps, while the Gigabit Ethernet interface provides wired network connectivity. The USB-C Power Delivery port supports up to 60W input for charging a compatible host device.
It is suited to office workstations, conference rooms, classrooms, mobile workstations, and other deployments where one USB-C connection must provide display, peripheral, network, and host charging functions. The source device must support USB DisplayPort Alternate Mode for HDMI video output.
Key Features
- Adds 4K HDMI output to compatible USB-C systems
- Provides Gigabit Ethernet for wired network connectivity
- USB-A port supports data rates up to 5 Gbps
- USB-C PD port supports host charging up to 60W
- Works with USB-C and Thunderbolt 3 host systems
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U444-06N-H4GUBC |
| Product Type | USB-C Multiport Adapter |
| Host Interface | USB-C Male |
| HDMI Output | HDMI Female |
| Maximum HDMI Resolution | 3840 × 2160 at 30 Hz |
| USB-A Port | USB-A Female, up to 5 Gbps |
| Ethernet Port | RJ45 Gigabit Ethernet |
| Ethernet Speed | 10/100/1000 Mbps |
| USB-C PD | Up to 60W |
| Video Technology | DisplayPort Alternate Mode |
| Host Compatibility | USB-C and Thunderbolt 3 |
| Power Delivery Standard | USB Power Delivery |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 85% RH, non-condensing |
