Detailed Specifications

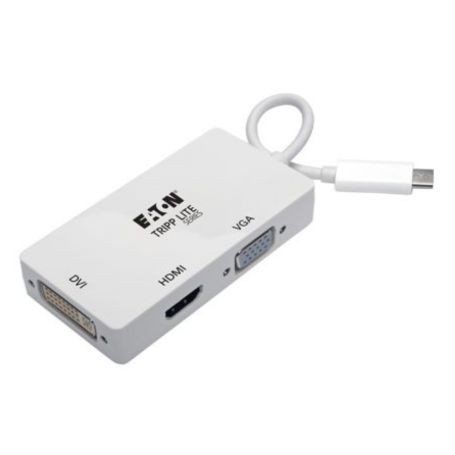

Eaton U444-06N-HDV4K Tripp Lite USB C Multiport Adapter M 3xF 4K HDMI DVI VGA HDCP, White
Overview
The Eaton U444-06N-HDV4K is a USB-C multiport video adapter that connects a USB-C or Thunderbolt 3 source to HDMI, DVI, or VGA displays. It provides one compact adapter for systems that need to connect to different display interfaces.
The adapter supports USB DisplayPort Alternate Mode and USB 3.0/3.1 Gen 1 data rates up to 5 Gbps. HDMI supports up to 3840 × 2160 at 30 Hz, while DVI supports 1920 × 1080 at 60 Hz and VGA supports 1920 × 1200 at 60 Hz. HDMI also supports 7.1-channel audio and HDCP 1.4.
It is suitable for conference rooms, classrooms, lecture halls, trade shows, offices, and mobile workstation deployments. The source must support USB DisplayPort Alternate Mode. It is not intended for simultaneous use of multiple displays; Eaton specifies support for one monitor.
Key Features
- Connects USB-C systems to HDMI, DVI and VGA displays
- Supports HDMI 4K output at 30 Hz for UHD displays
- DVI output supports 1080p resolution at 60 Hz
- VGA output supports 1920 × 1200 at 60 Hz
- Plug-and-play design requires no drivers or power supply
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number | U444-06N-HDV4K |
| Product Type | Multiport Adapter |
| Host Connector | USB-C Male |
| Video Outputs | HDMI Female, DVI-I Female, HD15 Female |
| USB Specification | USB 3.0 / USB 3.1 Gen 1, up to 5 Gbps |
| HDMI Maximum Resolution | 3840 × 2160 at 30 Hz |
| DVI Maximum Resolution | 1920 × 1080 at 60 Hz |
| VGA Maximum Resolution | 1920 × 1200 at 60 Hz |
| HDCP | HDCP 1.4 |
| Color Depth | 36-bit Deep Color |
| Audio | 7.1-channel surround sound via HDMI |
| DisplayPort Alternate Mode | Supported |
| Monitors Supported | 1 |
| Power | Bus powered; no external supply required |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 85% RH, non-condensing |
