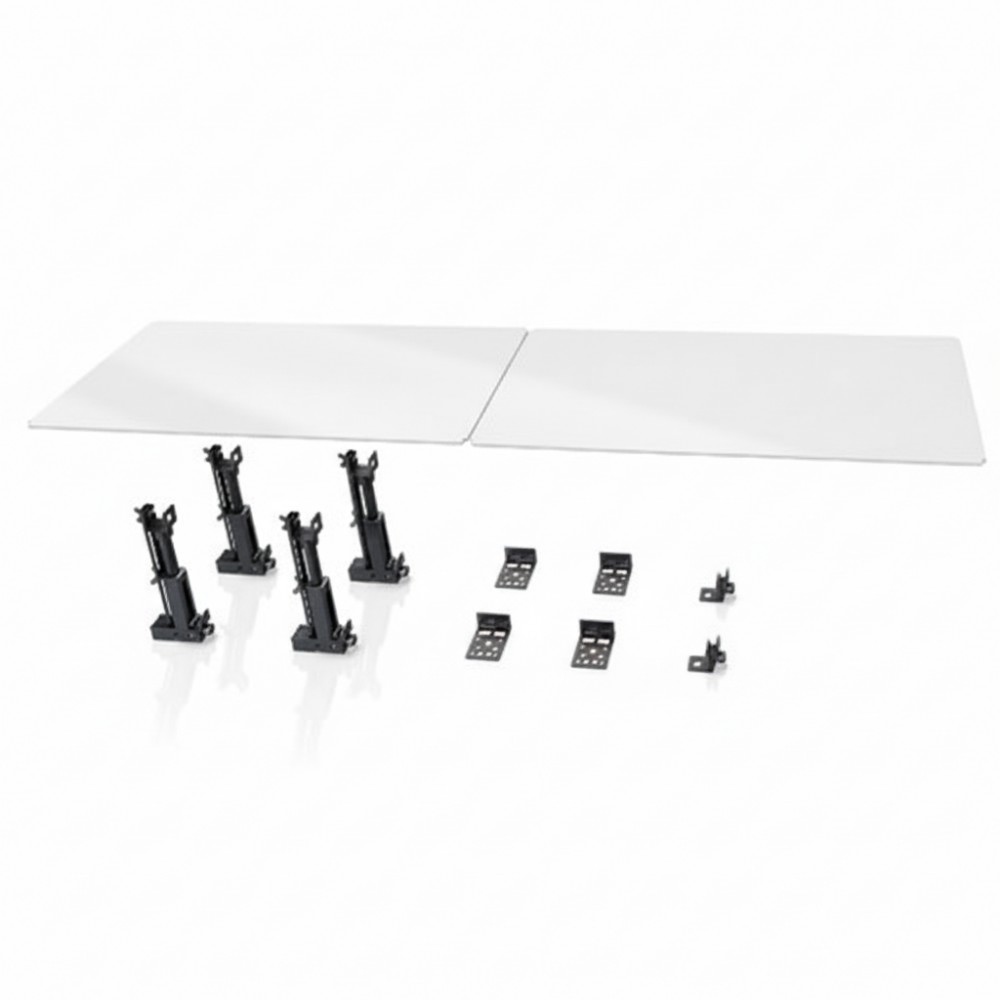

APC ACDC2202 NetShelter Aisle Containment Adjustable Mounting Support View larger

APC ACDC2202 NetShelter Aisle Containment Adjustable Mounting Support

ACDC2202

New

The APC ACDC2202 is a steel, adjustable mounting support
×




Detailed Specifications

APC ACDC2202 – Adjustable Mounting Support (241–419 mm)

Overview

The APC ACDC2202 is a height-adjustable support bracket used in NetShelter aisle-containment systems. It lets you bridge larger vertical gaps — from 241 mm up to 419 mm — when installing containment rails or duct components. This is especially useful in deployments where the ceiling or overhead structure doesn’t align neatly with the rack tops, or when you’re connecting to drop-ceiling or ducted systems. Using this support ensures your containment assembly stays secure, aligned, and properly sealed, preventing airflow bypass in hot/cold aisle architectures.Key Features

  • Adjustable height from 241 mm to 419 mm (9.5–16.5 in) for flexible containment alignment.

  • Rod can flex and rotate, yet remains firm where attached — accommodates slight misalignment.

  • Steel build offers reliable structural support for row-level containment.

  • Compatible with APC’s NetShelter aisle-containment systems for modular design

  • Compliant with RoHS and REACH environmental standards.

  • Covered by a 5-year limited warranty.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2202
Product Type Adjustable Mounting Support / Bracket
Adjustment Range 241–419 mm (9.5–16.5 in)
Depth 35.4 in / 900 mm
Height 50 mm / ~1.97 in (base)
Width 419 mm / 16.5 in
Weight 6.36 kg / 14.02 lb
Material / Finish Steel, black finish
Environmental Compliance RoHS, REACH
Warranty 5-Year limited
