Detailed Specifications

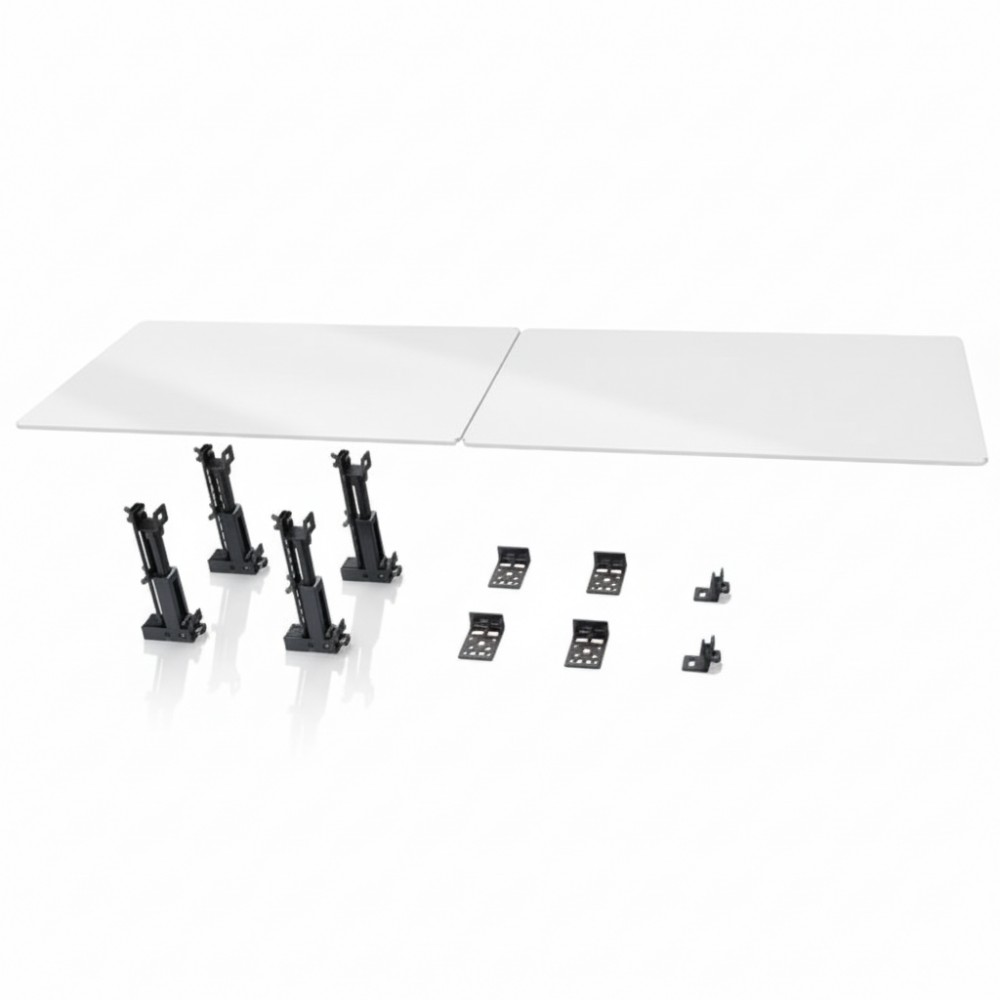

APC ACDC2200 - Adjustable Mounting Support (152-241 mm)
Overview
The APC ACDC2200 is a vertical mounting support post used in APC's NetShelter thermal-containment systems. It's designed to provide a stable, adjustable support point for containment rails or panels, especially where the distance between the floor (or rack) and ceiling-rails varies. With a height adjustment range of 152 mm to 241 mm (6-9.5 in), engineers can fine-tune positioning of containment components to ensure a clean seal. By using this support, you help maintain structural integrity of the containment system and avoid sagging or misalignment in modular aisle-containment layouts.
Key Features
Height-adjustable post supports 152-241 mm (6-9.5 in) vertical gap in containment systems.
Simplifies connector alignment: makes repositioning of containment rails or air blocks more flexible.
Steel construction provides strong and durable support.
RoHS-compliant design for safer use and disposal.
Compatible with APC NetShelter thermal containment systems.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2200 |
| Product Type | Adjustable Mounting Support / Mounting Post |
| Adjustment Range | 152-241 mm (6-9.5 in) |
| Minimum Height | ~152 mm (6 in) |
| Maximum Height | ~241 mm (9.5 in) |
| Weight | ~5.5 kg (~12.13 lb) |
| Material / Finish | Steel, black finish typical of containment systems |
| Compliance | RoHS |
| Warranty | As per APC containment accessory policy (check with distributor) |
| Device Supported | APC NetShelter / Aisle Containment System |
