Detailed Specifications

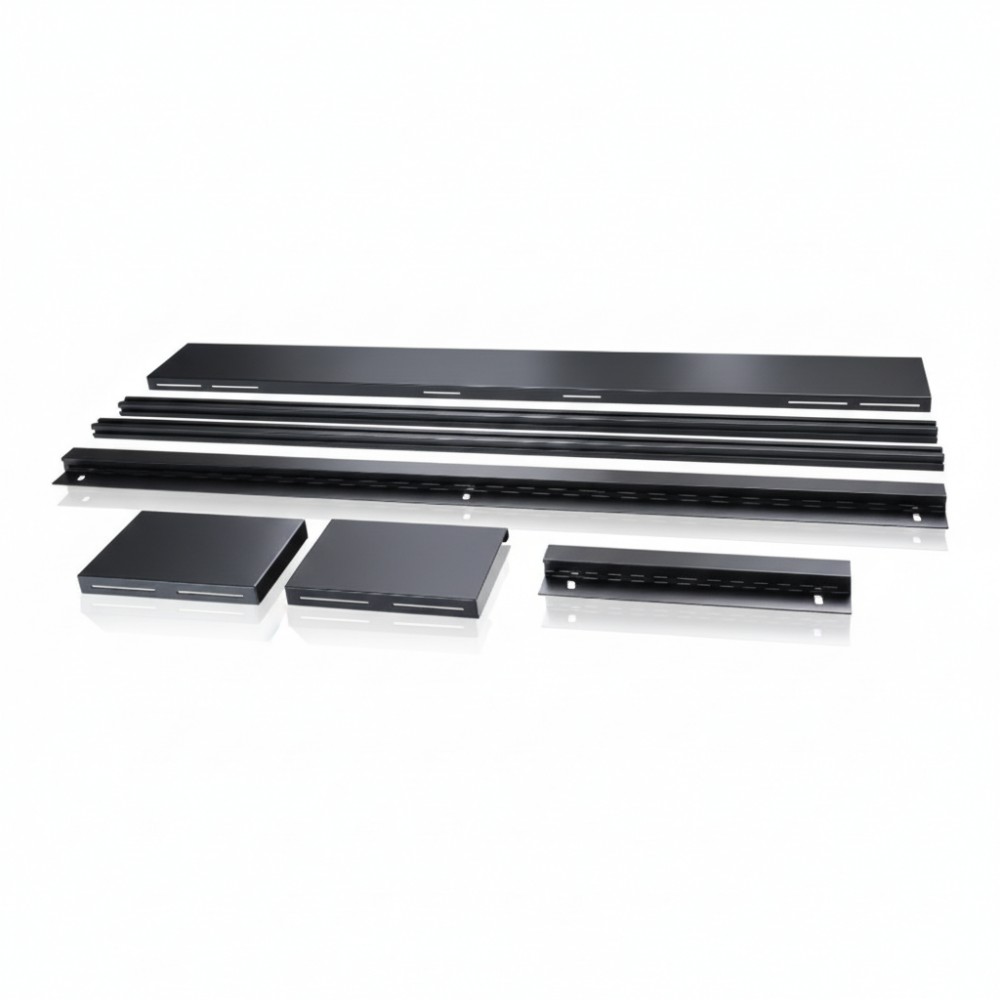

APC ACDC2411 - Curtain Door Mounting Rail (1500-1800 mm Aisle)
Overview
The APC ACDC2411 is a curtain-door mounting rail used in NetShelter aisle-containment systems for wide aisles (1500-1800 mm, or 60-72 in). Data-centre engineers deploy this when they want flexible containment doors: instead of hard panels, they use a curtain that slides on this rail. It helps form a thermally sealed boundary while allowing quick access to the aisle when needed. The rail is strong enough to support the curtain while maintaining structural integrity, enabling efficient hot-aisle or cold-aisle isolation in large rack rows.
Key Features
Designed for 1500-1800 mm (60-72 in) aisle width × ideal for wide containment paths.
Enables curtain-style doors, which allow easy ingress/egress and graceful closure.
Steel construction for reliable structural support.
Powder-coat black finish matches NetShelter gear.
REACH and RoHS compliant
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2411 |
| Product Type | Curtain-Door Mounting Rail |
| Supported Aisle Width | 1500-1800 mm (60-72 in |
| Height | 4.7 in (≈ 119 mm) |
| Width (Rail) | ~4.3 in (≈ 109 mm) |
| Depth / Length | 66.9 in (≈ 1,700 mm) |
| Weight | 12.68 lb (≈ 5.75 kg) |
| Material / Finish | Steel, black finish |
| Environmental Compliance | RoHS, REACH |
| Warranty | 5-Year Limited (per NetShelter containment policy) |
