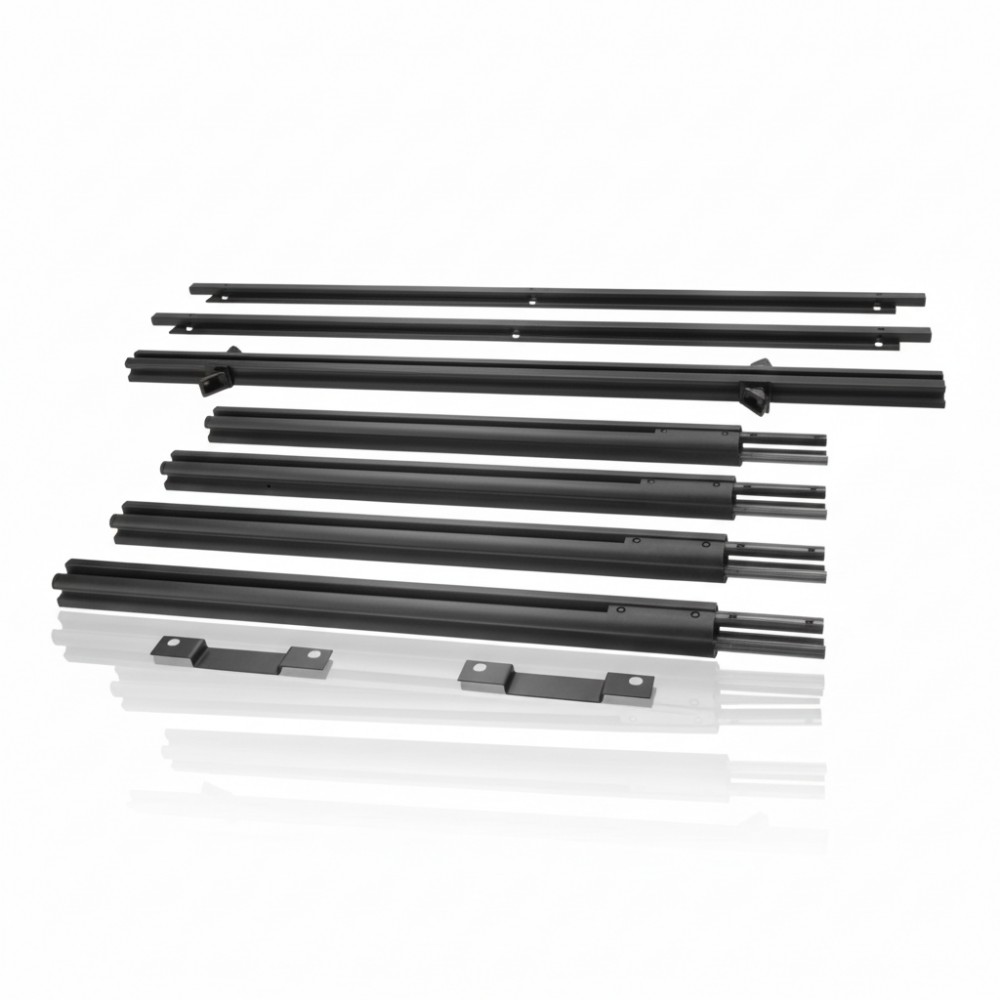

APC ACDC2301 NetShelter Aisle Containment Duct Mounting Rail View larger

APC ACDC2301 NetShelter Aisle Containment Duct Mounting Rail

ACDC2301

New

Expansion duct-mount rail for APC NetShelter containment systems
×




Detailed Specifications

APC ACDC2301 – Duct Mounting Rail (Expansion)

Overview

The APC ACDC2301 is an expansion rail built for NetShelter aisle-containment duct systems. It extends from the primary duct-mounting rail to allow flexible modular containment ceiling layouts. This helps data-centre and network engineers to span longer rows with ductwork without compromising thermal integrity. It’s height- and width-adjustable, supporting alignment for variable aisle setups or containment cross-bars, and integrates into the NetShelter ecosystem to maintain airflow separation across long containment spans.

Key Features

  • Expansion duct-mounting rail designed to work with the main ACDC2300 mounting rail

  • Adjustable height up to ~1.77″ (45 mm) to compensate for small vertical misalignments.

  • Adjustable width up to ~2.56″ (65 mm) for lateral alignment flexibility.

  • Long rail length (45.75″ / 1162 mm) to support extended duct spans.

  • Steel construction with a black finish, consistent with NetShelter containment components.

  • Complies with RoHS and REACH environmental standards.

  • Backed by a 5-year limited warranty from APC.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2301
Product Type Duct Mounting Rail – Expansion
Height Adjustability Up to ~45 mm (1.77 in)
Width Adjustability Up to ~65 mm (2.56 in)
Depth / Length 45.75 in / 1162 mm
Weight ~2.9 kg / 6.39 lb
Material / Finish Steel, black finis
Environmental Compliance RoHS, REACH
Warranty 5-Year limited
