Overview

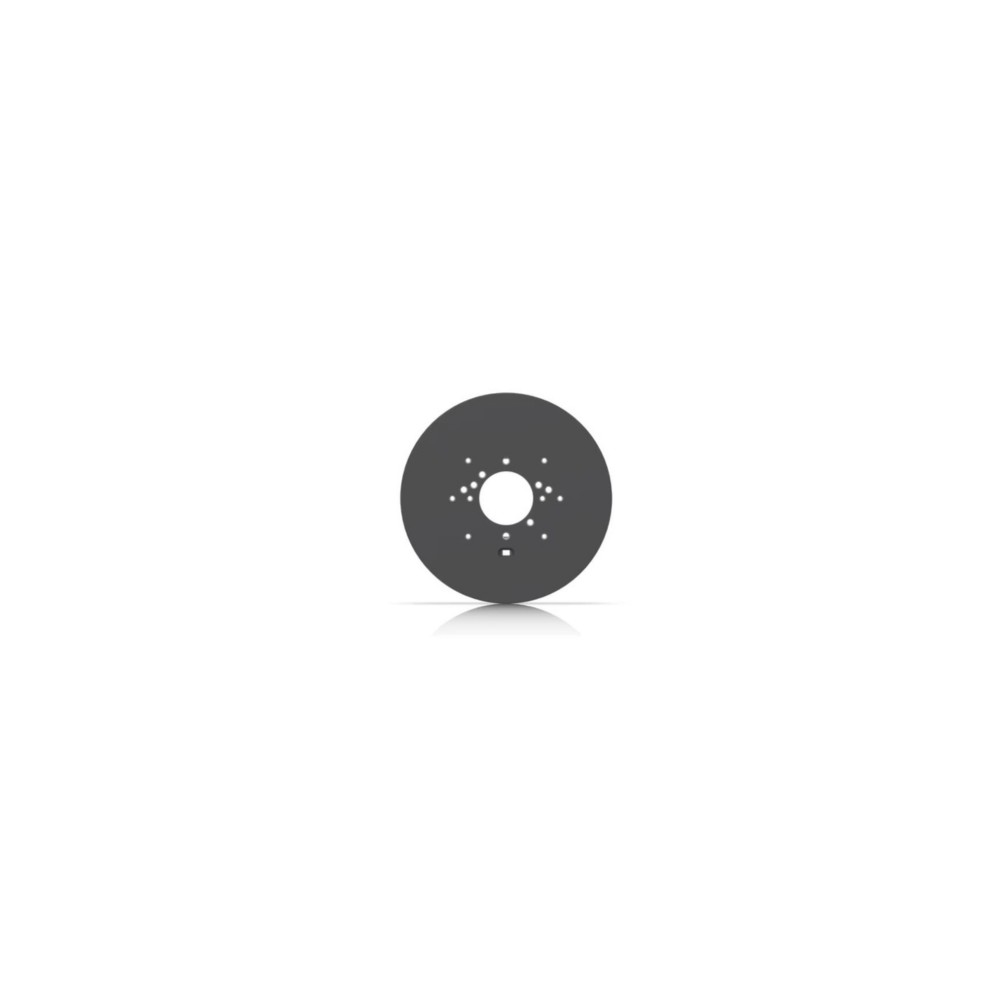

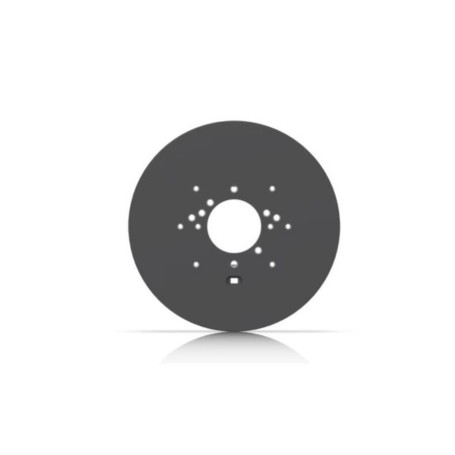

The Ubiquiti UACC-GB-Plate-B is a black Gang Box Mounting Plate designed to interface compatible UniFi Protect cameras with multiple types of gang boxes and junction boxes. It provides a common mounting interface for supported UniFi camera models and a range of standard electrical box configurations.
Compatibility
The mounting plate is compatible with a broad range of UniFi Protect cameras, including selected AI, G6, G5, G4 and G3 camera models. Supported camera models include UVC-AI-Dome, UVC-AI-Turret, UVC-AI-Pro, UVC-AI-DSLR, UVC-AI-LPR, UVC-G6-Bullet, UVC-G6-Edge-Bullet, UVC-G6-Pro-Bullet, UVC-G6-Turret, UVC-G6-Pro-Turret, UVC-G6-Edge-Turret, UVC-G6-PTZ, UVC-G6-Dome, UVC-G6-Pro-Dome, UVC-G6-Edge-Dome, UVC-G6-Mini-Dome, UVC-G6-180, UVC-G5-Dome-Ultra, UVC-G5-Turret-Ultra, UVC-G5-PTZ, UVC-G5-Pro, UVC-G5-Bullet, UVC-G4-Pro, UVC-G4-Bullet, UVC-G3-Pro and UVC-G3-Bullet.
Gang Box Compatibility
The UACC-GB-Plate-B supports multiple gang and junction box configurations, including 1-gang, 2-gang, 4-inch octagonal, 3.5-inch round, 4-inch square, 4-inch round and European outlet boxes.
Construction
The plate uses polycarbonate for the enclosure and stainless steel for the mounting material. The black version is identified by the UACC-GB-Plate-B model designation.
Key Features
- Designed to interface compatible UniFi Protect cameras with gang and junction boxes
- Supports multiple electrical box configurations
- Compatible with selected UniFi AI, G6, G5, G4 and G3 cameras
- Polycarbonate enclosure with stainless steel mounting material
- Black finish with a 140 mm diameter mounting profile
Applications
The UACC-GB-Plate-B is intended for camera installations where a compatible UniFi Protect camera needs to interface with an existing gang box or junction box. Its multiple mounting patterns allow supported camera models to be installed using several common electrical box formats.
DC Supplies Product Note
Camera compatibility should be checked against Ubiquiti's supported-model list before installation. The plate supports specific UniFi Protect camera models and box configurations, so it should not be treated as a universal camera mounting adapter.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-GB-Plate-B |
| Product Type | Gang Box Mounting Plate |
| Finish | Black |
| Mounting Type | Gang Box / Junction Box Mounting Plate |
| Enclosure Material | Polycarbonate |
| Mounting Material | Stainless steel |
| Diameter with Decorative Cover | 140 mm (5.5 in) |
| Height with Decorative Cover | 12 mm (0.5 in) |
| Diameter without Decorative Cover | 137 mm (5.4 in) |
| Height without Decorative Cover | 10.5 mm (0.4 in) |
| Weight | 183 g (6.5 oz) |
| Supported Gang/Junction Boxes | 1-gang, 2-gang, 4-inch octagon, 3.5-inch round, 4-inch square, 4-inch round, European outlet |
| Compatible Camera Families | Selected UniFi Protect AI, G6, G5, G4 and G3 cameras |
FAQs
What is the UACC-GB-Plate-B used for?
It is a mounting plate designed to interface compatible UniFi Protect cameras with multiple types of gang boxes and junction boxes.
Which camera models are compatible?
Ubiquiti lists compatibility with selected AI, G6, G5, G4 and G3 Protect cameras, including UVC-AI-Dome, UVC-AI-Turret, UVC-AI-Pro, UVC-G6-Bullet, UVC-G6-Turret, UVC-G6-PTZ, UVC-G5-Pro, UVC-G4-Pro and UVC-G3-Pro among the supported models.
Which gang boxes are supported?
The supported configurations include 1-gang, 2-gang, 4-inch octagonal, 3.5-inch round, 4-inch square, 4-inch round and European outlet boxes.
What color is the UACC-GB-Plate-B?
The UACC-GB-Plate-B is the black version of Ubiquiti's Gang Box Mounting Plate.
What materials are used?
Ubiquiti specifies polycarbonate for the enclosure and stainless steel for the mounting material.
What are the dimensions and weight?
With the decorative cover, the plate measures 140 mm in diameter and 12 mm in height. Without the decorative cover, it measures 137 mm in diameter and 10.5 mm in height. The listed weight is 183 g.
