Detailed Specifications

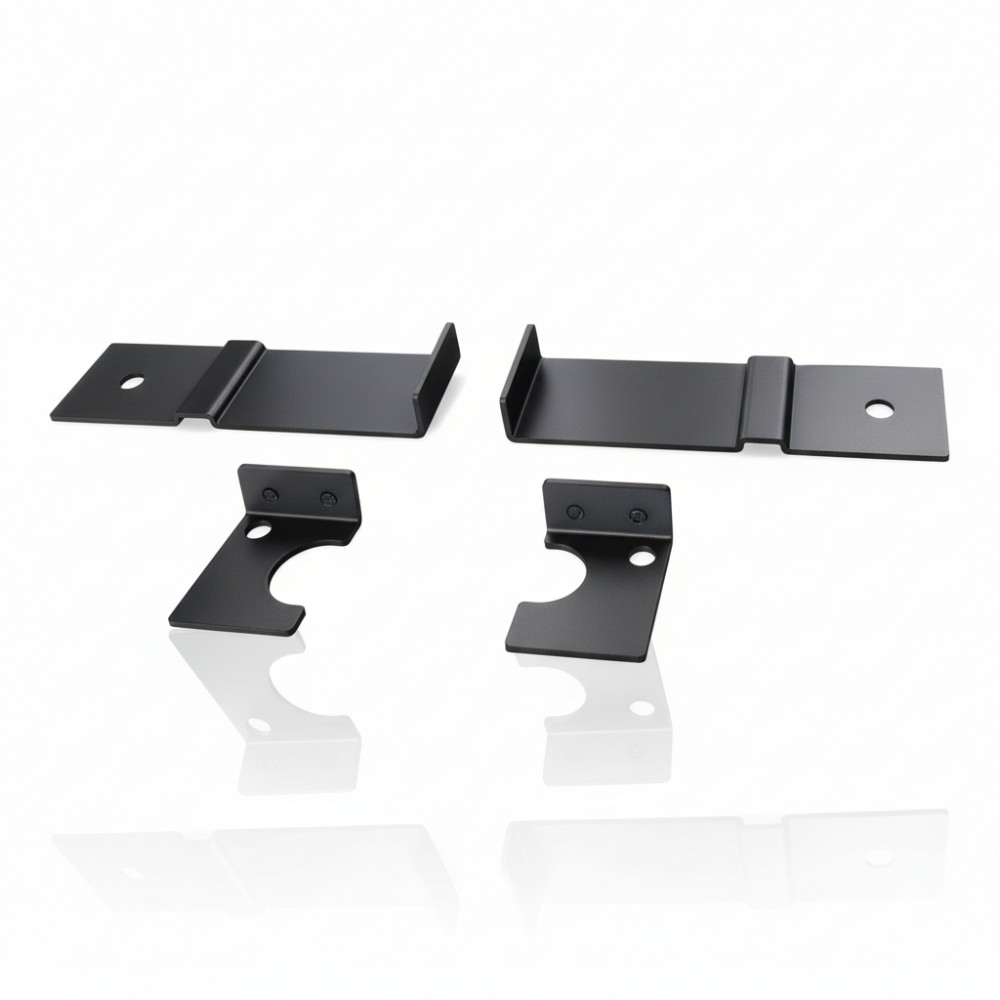

APC ACDC2204 - Adjustable Mounting Support Bracket (Cooling / Racks)
Overview
The APC ACDC2204 is a compact, adjustable mounting bracket used in NetShelter aisle-containment or rack systems. It's designed to support either cooling devices or rack frames where a small amount of vertical alignment is necessary × for example, offset from the rack surface or when equipment needs slight adjustment to mate with a rail or mounting point. With a modest height-adjustment range, this bracket helps fine-tune mounting without the need for large support posts. Its steel construction and compact form make it a convenient, low-profile solution for aligning containment or rack accessories in constrained spaces.
Key Features
Provides adjustable support with a height range of up to ~32 mm to align containment rails or rack-mounted devices.
Compact footprint (110 mm width, 200 mm depth) ensures minimal space usage.
Made from robust steel with a black finish to match NetShelter and containment frames.
Lightweight (~750 g) but strong enough for containment rail or cooling-mount support.
Environmentally certified (RoHS, REACH) aligning with APC's sustainability requirements.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2204 |
| Product Type | Adjustable Mounting Support / Bracket |
| Adjustment Range | Up to ~32 mm (1.26 in) vertical adjustment |
| Width | 110 mm (4.33 in) |
| Depth | 200 mm (7.87 in) |
| Height (Bracket Base) | ~32 mm (1.26 in) |
| Weight | ~0.75 kg (750 g) |
| Material / Finish | Steel, black powder-coat / black finish |
| Environmental Compliance | RoHS, REACH |
| Device Supported | Rack or cooling-system support (NetShelter, containment) |
