Detailed Specifications

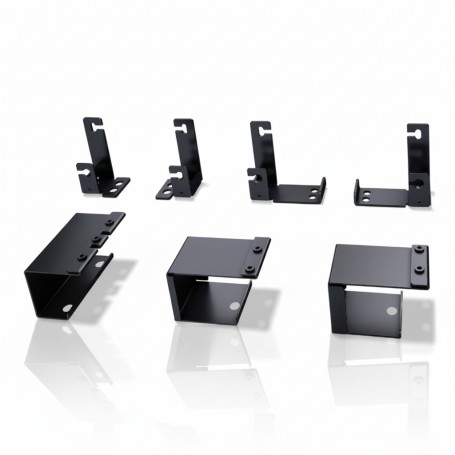

APC ACDC2006 Adjustable Ceiling Rail Mounting Bracket Power
Overview
The APC ACDC2006 is a mounting bracket used in APC NetShelter / EcoAisle aisle-containment systems, specifically for supporting ceiling rails used above power equipment (e.g., PDUs). The bracket offers adjustable height, width, and depth, making it ideal for aligning overhead containment infrastructure when dealing with racks or enclosures of varying sizes or layouts. This solves common structural alignment issues when installing containment above power-dense racks.In practice, you deploy this bracket to secure ceiling-panel rails across enclosures that house PDUs or other power components, ensuring the containment roof remains stable even when racks don't line up evenly. It integrates seamlessly into APC containment architecture, maintaining the integrity of the hot/cold aisle design without compromising airflow sealing.
Key Features
Height-adjustable support: allows up to 110 mm (~4.33 in) of vertical adjustment.
Width-adjustable mounting: supports lateral offsets up to ~120 mm for flexible alignment.
Depth-adjustable bracket: supports up to ~266 mm (~10.5 in) in depth to reach varying rack profiles.
Steel design: robust construction ensures secure and rigid support for ceiling rails.
RoHS / REACH compliant: built to meet modern environmental and safety standards.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2006 |
| Product Type | Mounting Bracket / Structural Support |
| Key Spec × Height Adjustment | Up to 110 mm (4.33 in) |
| Key Spec × Width Adjustment | Up to 120 mm (4.72 in) |
| Key Spec × Depth Support | Up to 266 mm (10.47 in) |
| Weight | ~1.11 kg / 2.43 lb |
| Management | Passive (hardware-only) |
| Power Requirements | None |
| Dimensions (Approx) | Width: 120 mm; Depth: up to ~266 mm; Height: adjustable to 110 mm |
| Operating Environment | Indoor, data center containment infrastructure |
| Compliance | RoHS, REACH compliant |
