Detailed Specifications

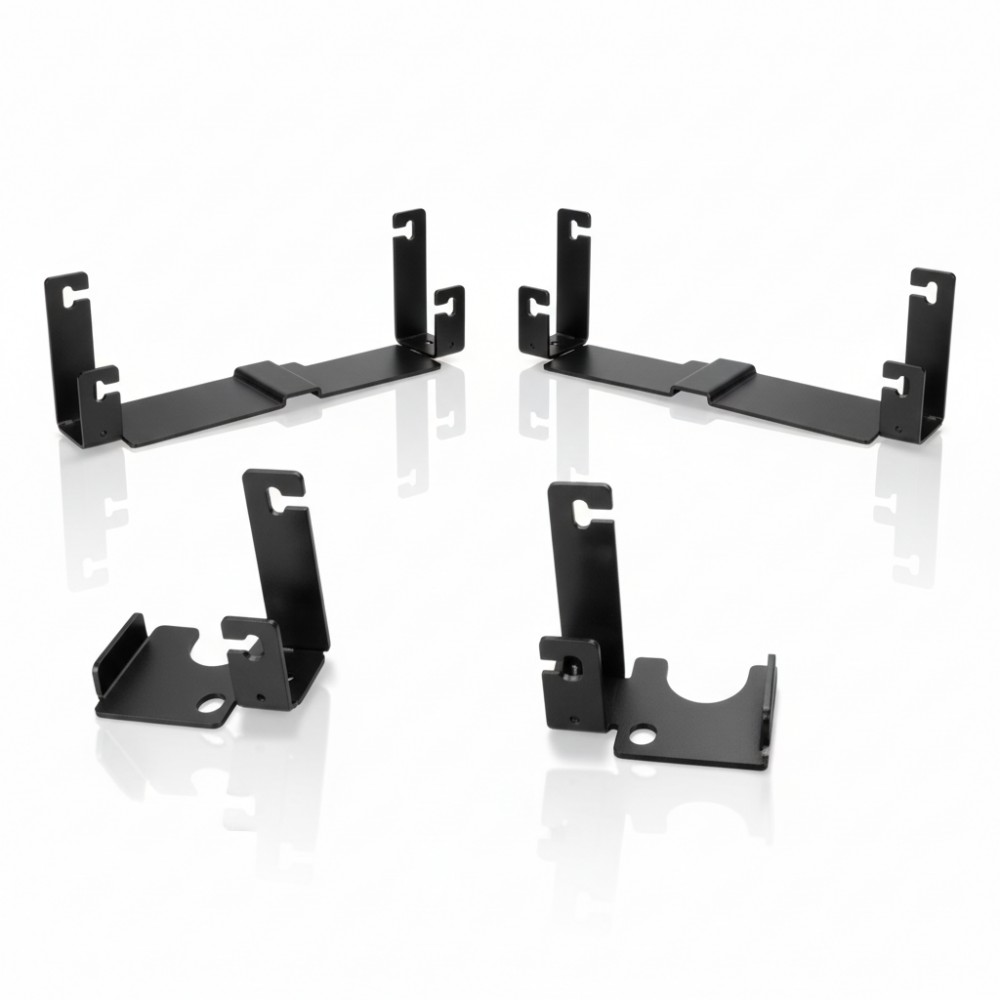

APC ACDC2005 Adjustable Ceiling Panel Mounting Bracket
Overview
The APC ACDC2005 is a mounting bracket used in NetShelter / EcoAisle containment systems to support ceiling-panel rails. It attaches to racks (or airflow enclosures) and provides adjustable support for overhead containment, helping to secure the containment roof. This solves a key deployment need: ensuring that ceiling panels remain stable and properly aligned in containment structures, particularly in retrofit or mixed rack depth scenarios.In practical deployment, these brackets mount on the side of Enclosures (like airflow racks or InRow units) to hold the overhead ceiling rails. They're height- and width-adjustable, which makes them extremely useful when aligning the containment ceiling across racks with varying profiles or minor misalignments.
Key Features
Height-adjustable support: up to 110 mm (4.33 in) of vertical adjustment to align ceiling rails.
Width-adjustable mounting: supports up to ~100 mm (3.94 in) lateral offset for flexibility in rack placement.
Depth flexibility: supports maximum depth up to ~220 mm (8.66 in) for different rack/containment arrangements.
Steel construction in black finish: matches APC containment systems and delivers robust structural support.
RoHS / REACH compliant: environmentally-aware design with 5-year warranty.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2005 |
| Product Type | Mounting Bracket / Support |
| Key Spec × Adjustable Height | 110 mm (4.33 in) |
| Key Spec × Adjustable Width | 100 mm (3.94 in) |
| Key Spec × Maximum Depth | 220 mm (8.66 in) |
| Weight | ~1.11 kg (2.45 lb) |
| Management | Passive hardware (no electronics) |
| Power Requirements | None |
| Dimensions (W × H × D) | ~100 mm × ~110 mm × ~220 mm |
| Operating Environment | Indoor, NetShelter / EcoAisle containment systems |
| Compliance | RoHS, REACH |
| Warranty | 5 years |
