Ergotron 60-350-200 – DS100 Grommet Mount Base
Overview
The Ergotron 60-350-200 is a Grommet Mount Base designed for Ergotron DS100 monitor stands and compatible 1.5-inch round-pole configurations. It replaces the standard freestanding base by securing the monitor stand through a grommet opening in the worksurface, helping conserve desktop space while providing a fixed mounting solution.
Technical Information

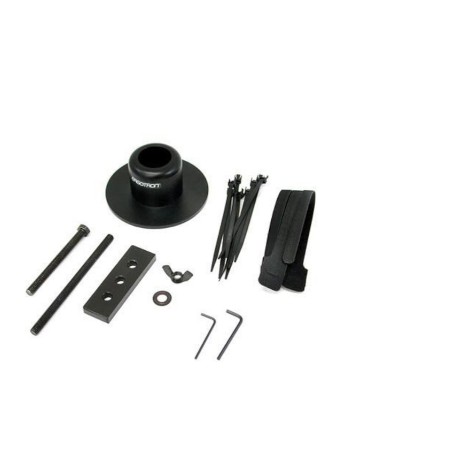

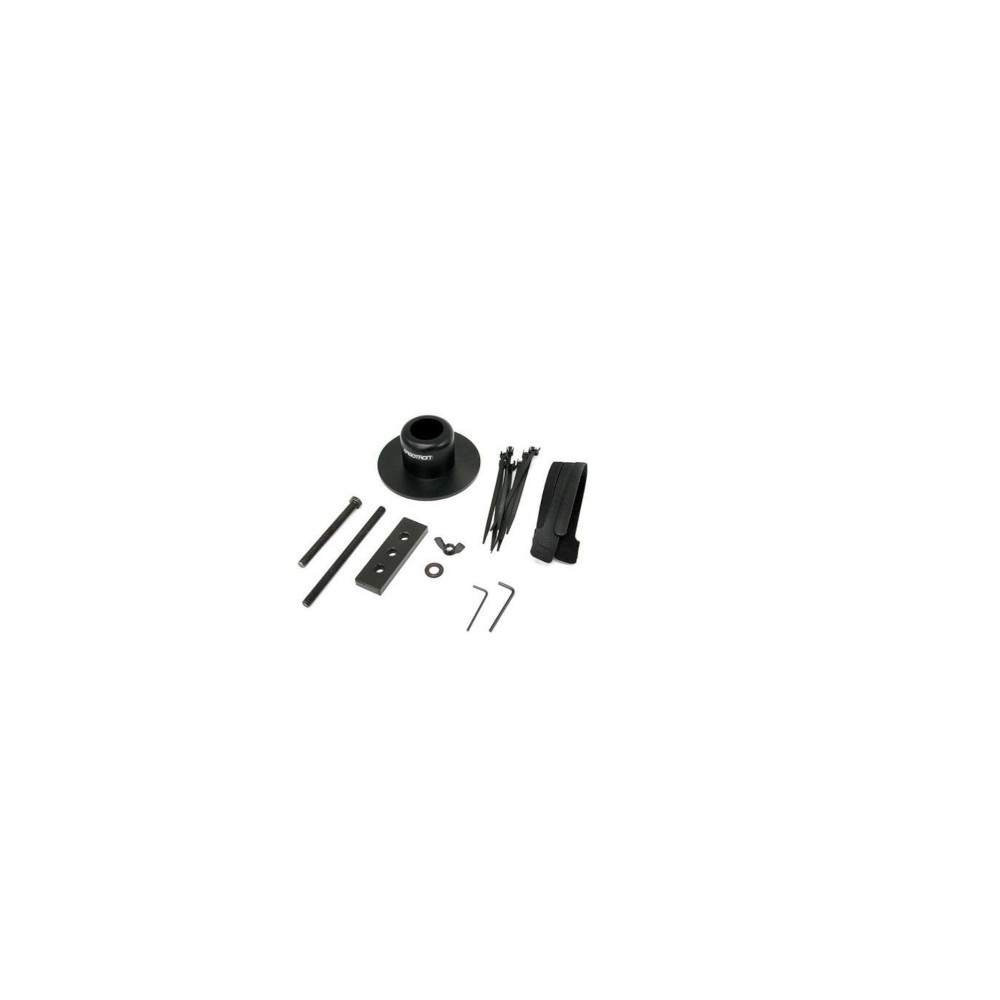

The 60-350-200 features a sturdy steel construction and is finished in black. It mounts through a worksurface opening from 3/8 to 3 inches (10 to 76 mm) in diameter and supports worksurfaces up to 3-1/4 inches (82–83 mm) thick. Ergotron specifies centering the mounting screw through the opening for maximum support.
Compatibility
The 60-350-200 is designed for Ergotron DS100 monitor stands and is also used as the grommet base for compatible 1-1/2-inch round-pole mounting configurations. For the Ergotron DS100 Quad-Monitor Desk Stand 33-284-200, two Grommet Mount Bases are required. Monitor arms, poles and DS100 components are not included with this base.
Key Features
- Grommet mounting base for Ergotron DS100 monitor stands
- Sturdy steel construction for fixed desktop installation
- Mounts through worksurface holes from 3/8 to 3 inches
- Supports worksurfaces up to 3-1/4 inches thick
- Includes extra cable-management ties and straps
Applications
The 60-350-200 is intended for professional desktop monitor installations where a DS100 stand must be secured through the worksurface rather than positioned on a freestanding platform. The grommet configuration is suitable for office, workstation and multi-monitor environments where desktop space is important.
DC Supplies Product Note
This product is a mounting component rather than a complete monitor stand. The DS100 pole, monitor pivots, crossbars and displays must be specified separately as required by the installation. Verify the worksurface construction, hole dimensions and overall monitor configuration before installation.
Specifications
| Brand | Ergotron |
|---|
| Part Number | 60-350-200 |
|---|
| Product Type | Grommet Mount Base |
|---|
| Product Family | DS100 |
|---|
| Application | Desktop / worksurface mounting |
|---|
| Mounting Method | Grommet / through-worksurface mounting |
|---|
| Worksuface Hole Diameter | 3/8–3 in (10–76 mm) |
|---|
| Maximum Worksurface Thickness | 3-1/4 in (82–83 mm) |
|---|
| Material | Steel |
|---|
| Color | Black |
|---|
| Shipping Weight | 5 lb (2.3 kg) |
|---|
| Included Accessories | Extra cable-management ties and straps |
|---|
| Compatibility | Ergotron DS100 |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 60-350-200?
The 60-350-200 is a Grommet Mount Base for Ergotron DS100 monitor stands.
How does the 60-350-200 mount?
It attaches through a grommet opening in the worksurface rather than using a freestanding desktop base.
What size worksurface hole is required?
The mounting opening can be 3/8 to 3 inches (10 to 76 mm) in diameter.
How thick can the worksurface be?
Ergotron specifies a maximum worksurface thickness of 3-1/4 inches (82–83 mm).
What material is the base made from?
The 60-350-200 uses steel construction and has a black finish.
Does it include a DS100 monitor stand?
No. The 60-350-200 is the mounting base component only. Compatible DS100 poles and monitor mounting components are ordered separately.
How many bases are required for the DS100 Quad-Monitor Desk Stand 33-284-200?
Ergotron specifies two Grommet Mount Bases for the 33-284-200 DS100 Quad-Monitor Desk Stand.
