Overview

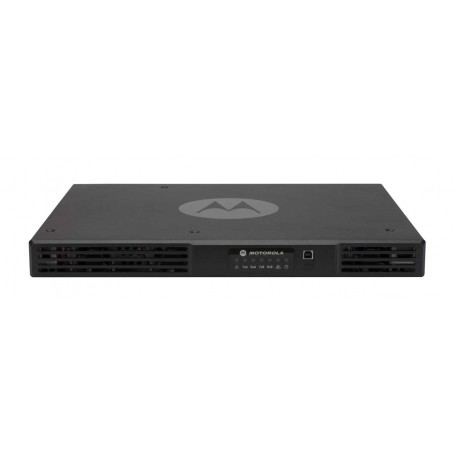

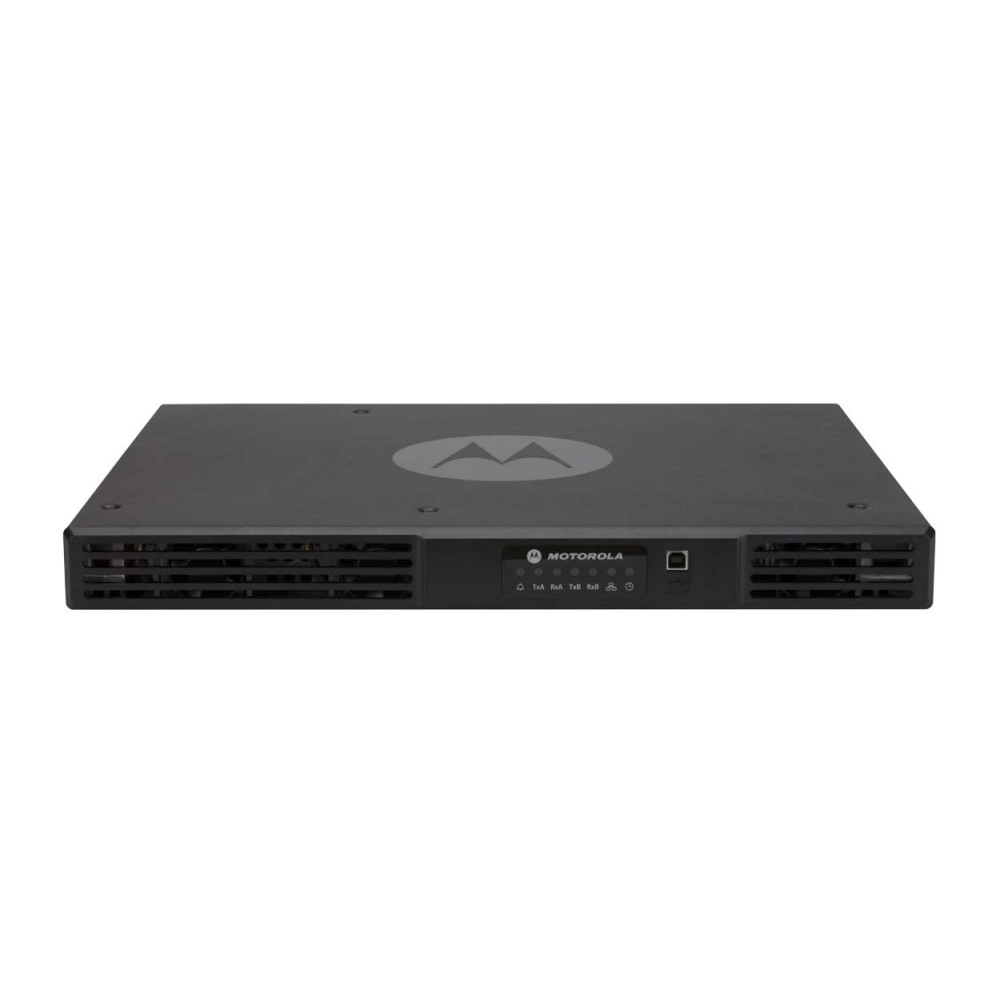

The Motorola Solutions AAR10QCGANQ1AN is an SLR 5700 UHF repeater designed to extend two-way radio coverage for professional and commercial communication systems. Operating in the 400–470 MHz frequency band, it supports adjustable transmit power from 1W to 50W and is suitable for continuous-duty communication environments.
Designed for professional radio infrastructure, the SLR 5700 supports analog and digital communications and can be integrated into compatible MOTOTRBO systems. Its internal power supply and rack-mountable design make it suitable for base stations, commercial facilities, industrial sites, and other applications requiring dependable radio coverage.
Key Features
- UHF Frequency Range: Operates in the 400–470 MHz band.
- Adjustable Transmit Power: Supports output power from 1W to 50W.
- Analog and Digital Support: Compatible with supported conventional analog and digital radio systems.
- Continuous-Duty Operation: Designed for demanding professional communication environments.
- Professional Installation: Rack-mountable design with an integrated power supply.
Communication Capabilities
The SLR 5700 repeater receives and retransmits compatible radio signals to help extend coverage between two-way radios. It supports compatible MOTOTRBO communication configurations, including conventional digital operation and supported networked systems. Advanced features and system modes may require appropriate configuration, compatible equipment, or additional software licences.
Installation and Power
The repeater features an integrated power supply and is designed for professional installation. Its power input is rated for 100–240V AC at 50/60Hz. Proper antenna selection, transmission-line installation, frequency coordination, and radio programming are essential for reliable operation.
Installation and use must comply with applicable radio spectrum regulations and licensing requirements. Confirm frequency authorization and system compatibility before deployment.
Technical Specifications
| Brand | Motorola Solutions |
| Part Number / MPN | AAR10QCGANQ1AN |
| Product Type | Professional UHF Radio Repeater |
| Product Series | MOTOTRBO SLR 5700 |
| Frequency Band | UHF |
| Frequency Range | 400–470 MHz |
| Transmit Power | 1–50W |
| Radio Modes | Analog and digital, subject to system configuration |
| Duty Cycle | 100% continuous duty |
| Power Supply | Integrated |
| AC Input | 100–240V AC, 50/60Hz |
| AC Input Current | Maximum 4A, according to equipment label |
| DC Supply Rating | 11.0–14.4V DC, maximum 17A, according to equipment label |
| Mounting | Rack-mountable; optional mounting arrangements may be available |
| Dimensions (W × D × H) | Approximately 19 × 14.6 × 1.75 inches (483 × 371 × 44.5 mm) |
| Weight | Approximately 16 lb (7.3 kg) |
Applications
- Commercial and industrial two-way radio systems
- Warehouses and distribution facilities
- Manufacturing plants and industrial sites
- Business and campus radio networks
- Professional MOTOTRBO communication infrastructure
Frequently Asked Questions
1. What frequency range does the AAR10QCGANQ1AN support?
This SLR 5700 variant operates in the 400–470 MHz UHF band.
2. What is its maximum transmit power?
The repeater supports adjustable transmit power from 1W to 50W.
3. Does it support analog and digital communications?
Yes. It supports compatible analog and digital radio configurations, depending on system programming and the selected operating mode.
4. Is the repeater suitable for continuous operation?
Yes. The SLR 5700 is designed for 100% continuous-duty operation when installed and operated within manufacturer specifications.
5. Does it require an external power supply?
It has an integrated power supply. The installation must meet the specified electrical requirements.
DC Supplies Product Note
Verify the exact part number AAR10QCGANQ1AN before ordering. This is the 400–470 MHz UHF variant of the Motorola SLR 5700. Confirm frequency compatibility, required radio-system features, mounting accessories, and local licensing requirements before installation.
