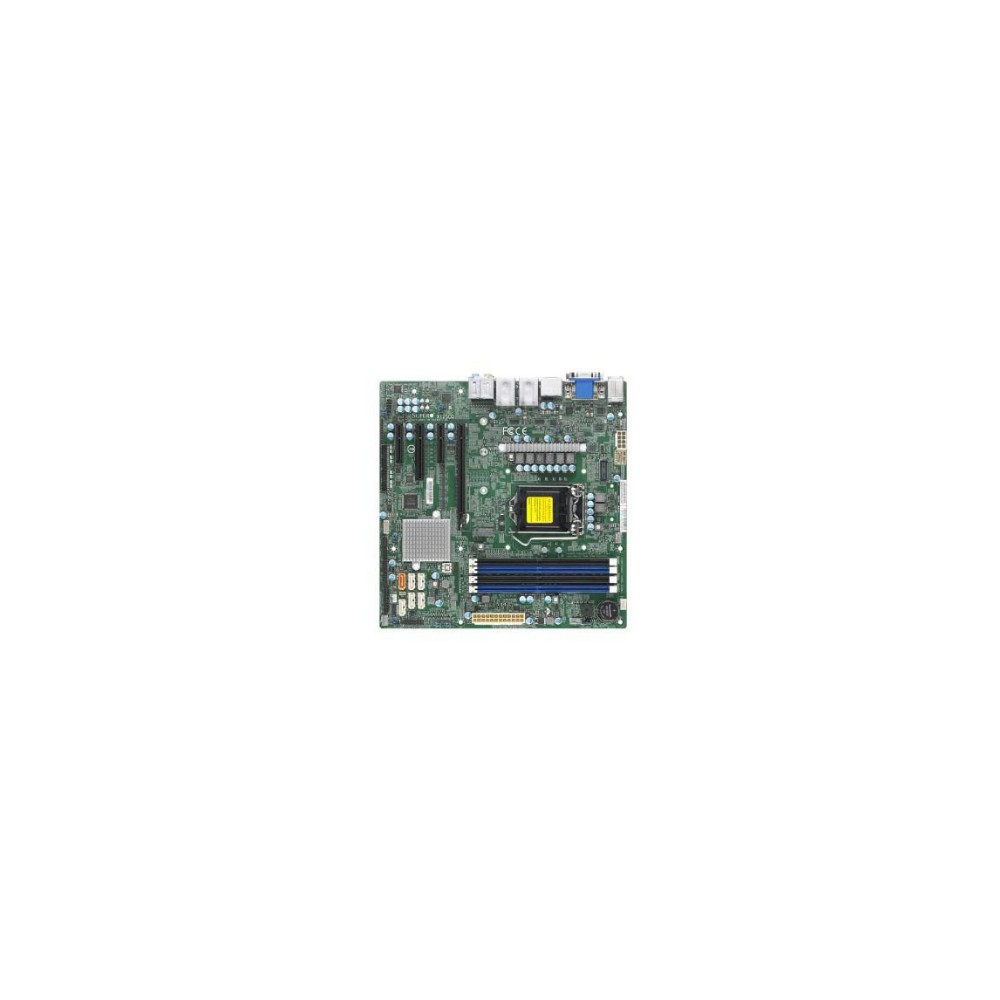

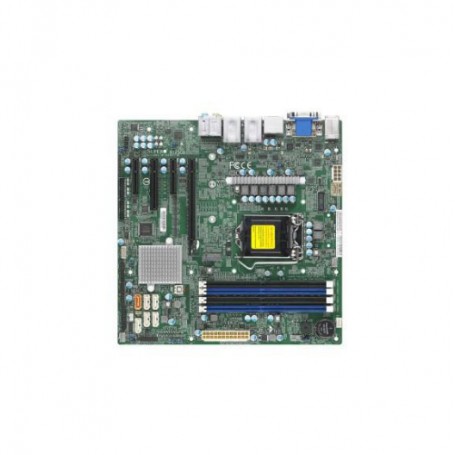

SUPERMICRO COMPUTER MBD-X12SCQ-O Motherboards

Name: SUPERMICRO COMPUTER MBD-X12SCQ-O Motherboards
Brand: SUPERMICRO COMPUTER
SKU: MBD-X12SCQ-O

Part No: MBD-X12SCQ-O

Condition: New

Short Description: Mother Board-Intel, X12SCQ,Micro ATX,Comet Lake-S,Q470,LGA1200 Single

Quantity

Name ^*

Email ID ^*

Contact Number ^*

Country ^*

Enter Inquiry Details ^*

Verification Code^*

Primary Information
Mainboard Form Factor	Micro ATX
Mainboard / Chipset Type	Intel Q470E
Compatible Processors	10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Audio Output	1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Networking Type	Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT
Features	RoHS M.2 NGFF connector Chassis intrusion detection ATX Power connector ACPI power management

Processor
Processor / Max Supported Qty	1
Processor / Socket Type	LGA1200

Memory
RAM / Technology	DDR4
Data Integrity Check	Non-ECC
RAM / Max Supported Size	Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz GB

Expansion
Expansion Slots Total (Free)	PCI-E 2 PCIe 3.0 x4, 1 PCIe 3.0 x16 (in x16 slot), 1 PCIe 3.0 x8 M.2 M.2 Interface: 1 PCIe 3.0 x4, RAID 0 & 1 Form Factor: 2242/2280 Key: M-Key
Interfaces & Connections	SATA 6 SATA3 (6Gbps) port(s) LAN 2 RJ45 Gigabit Ethernet LAN ports USB 6 USB 3.1 Gen2 port(s) (2 via header; 2 rear type A; 2 rear type C) 6 USB 2.0 port(s) (4 via header; 2 rear) Video Output 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 DVI - D port(s) Serial Port 4 COM Port(s) (4 header) TPM 1 TPM Header & Chip both

UNSPSC Code
UNSPSC Code	43201513
