Detailed Specifications

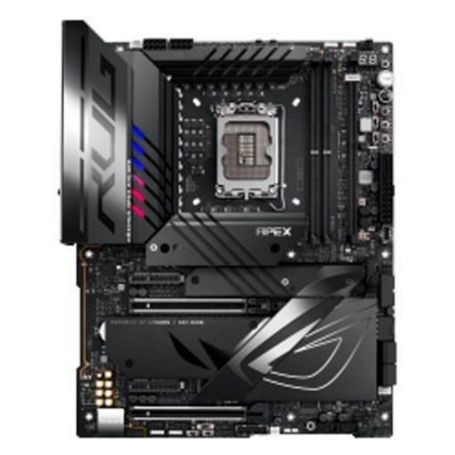

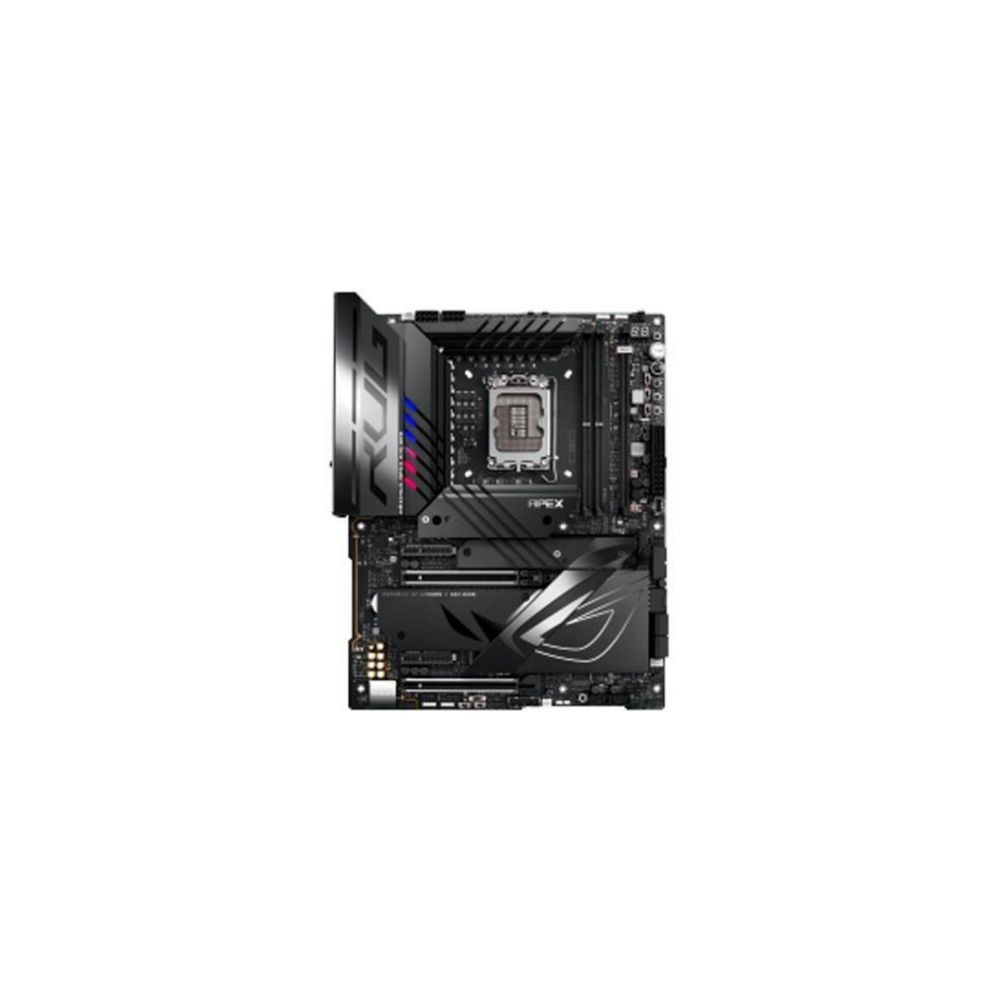

The ASUS ROG Maximus Z790 Apex Encore is an enthusiast-grade ATX motherboard built for high-performance Intel desktop systems. Powered by the Intel Z790 chipset and LGA1700 socket, it supports compatible Intel Core processors and DDR5 memory. Its two-slot memory design is optimized for overclocking, while PCIe 5.0 expansion, multiple M.2 storage options, and modern networking provide flexibility for advanced gaming and workstation builds.
Key Features
- Intel LGA1700 platform: Supports compatible Intel Core 14th, 13th, and 12th Generation desktop processors, along with supported Pentium Gold and Celeron processors.
- DDR5 memory overclocking: Two DIMM slots support up to 96GB of DDR5 memory, with Intel XMP and ASUS AEMP II support.
- Advanced power delivery: A 24+0+2 power-stage design supports demanding processors and enthusiast overclocking.
- Five M.2 storage slots: Combines onboard PCIe 5.0 and PCIe 4.0 storage support with additional M.2 slots through the included ROG DIMM.2 card.
- Next-generation connectivity: Includes Wi-Fi 7, 2.5Gb Ethernet, USB 20Gbps Type-C, and SupremeFX audio.
Product Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | ROG MAXIMUS Z790 APEX ENCORE |
| Product Type | Desktop motherboard |
| Product Series | Republic of Gamers (ROG) Maximus |
| Chipset | Intel Z790 |
| CPU Socket | Intel LGA1700 |
| Processor Compatibility | Compatible Intel Core 14th, 13th, and 12th Generation processors; supported Pentium Gold and Celeron processors |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |
| Memory Type | DDR5 |
| Memory Slots | 2 × DIMM |
| Maximum Memory Capacity | 96GB |
| Memory Architecture | Dual-channel |
| Memory Overclocking | Up to DDR5-8400+ MT/s (OC), depending on configuration |
| Primary Expansion | 2 × PCIe 5.0 x16 SafeSlots, operating at x16 or x8/x8 |
| Additional Expansion | 2 × PCIe 4.0 x4 slots |
| M.2 Storage | 5 slots total: 1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4, and 2 × PCIe 4.0 x4 through the ROG DIMM.2 card |
| SATA Connectivity | 4 × SATA 6Gb/s |
| Wireless Networking | Intel Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4; module specifications may vary |
| Wired Networking | Intel 2.5Gb Ethernet |
| Rear USB | 1 × USB 20Gbps Type-C, 5 × USB 10Gbps Type-A, 4 × USB 5Gbps Type-A |
| Front USB-C | USB 20Gbps connector with Quick Charge 4+ support up to 60W when configured with the required power connection |
| Audio | ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier |
| RGB Lighting | ASUS Aura Sync |
| Included Memory Cooling | ROG Memory Fan Kit |
| Additional Storage Accessory | ROG DIMM.2 card with heatsink |
| Manufacturer | ASUS |
DC Supplies Product Note
The ROG Maximus Z790 Apex Encore is designed for enthusiasts who prioritize memory tuning, advanced cooling, and high-speed expansion. Memory overclocking results and expansion-lane availability depend on the processor and installed components. Check the ASUS CPU support list and the motherboard manual before finalizing a build.
Frequently Asked Questions
1. Which processors are compatible with this motherboard?
It supports compatible Intel Core 14th, 13th, and 12th Generation desktop processors, plus supported Pentium Gold and Celeron processors using the LGA1700 socket. Check ASUS documentation for processor-specific BIOS requirements.
2. How much memory does the motherboard support?
The board supports up to 96GB of DDR5 memory across two DIMM slots. Supported speeds depend on the memory kit, processor, and system configuration.
3. How many M.2 drives can be installed?
It supports five M.2 drives in total, including two slots provided through the ROG DIMM.2 expansion card.
4. Does this motherboard support Wi-Fi 7?
Yes. It includes Intel Wi-Fi 7 wireless networking and Intel 2.5Gb Ethernet.
5. What is the motherboard's form factor?
It uses the ATX form factor and measures approximately 30.5 × 24.4 cm.
