Overview

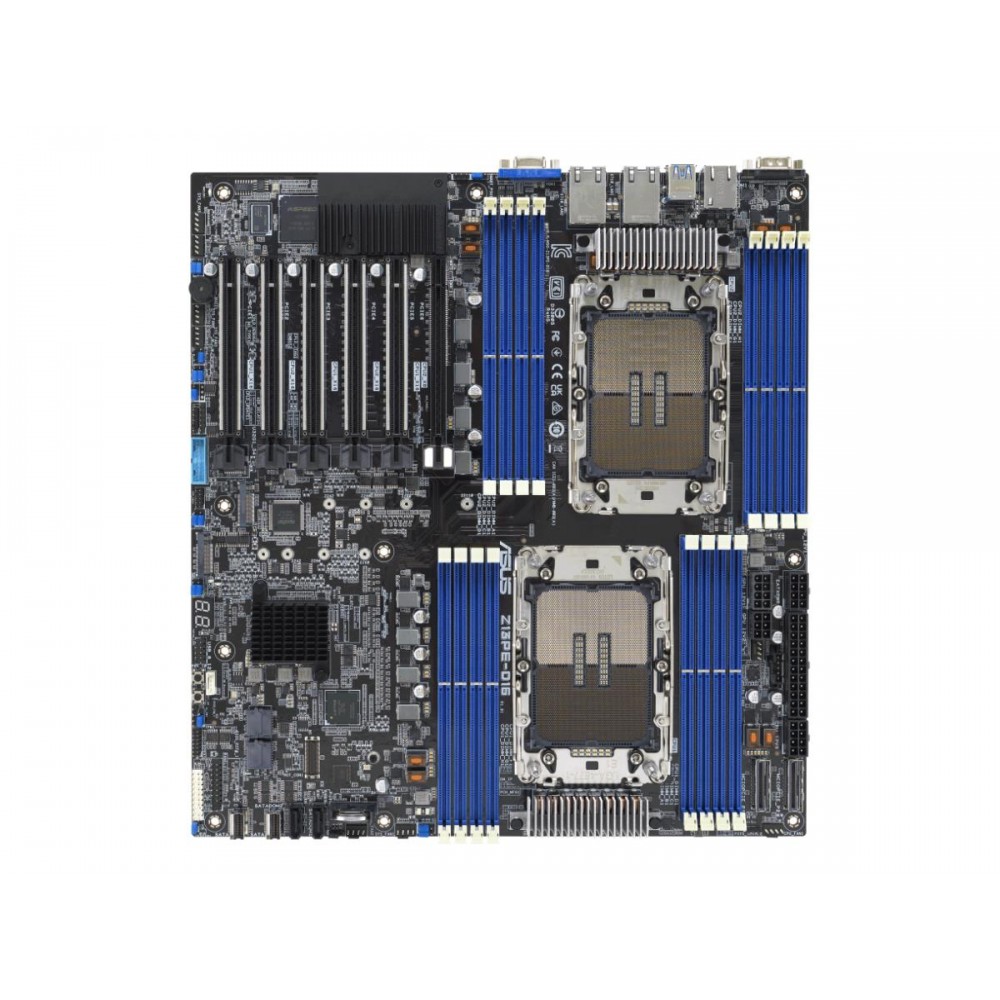

The ASUS Z13PE-D16 is an enterprise server motherboard designed for data centers, high-performance computing, virtualization, and demanding storage or analytics workloads. Built around the Intel C741 chipset and dual LGA 4677 processor sockets, it supports compatible 4th and 5th Gen Intel Xeon Scalable processors. Its 16 DDR5 memory slots, PCIe 5.0 expansion, dual 10GbE networking, and integrated ASUS server management features provide a flexible foundation for high-performance server configurations.
Key Features
- Dual Processor Platform: Two LGA 4677 sockets support compatible Intel Xeon Scalable processors.
- 16 DDR5 DIMM Slots: Supports ECC registered memory, with maximum capacity dependent on processor and DIMM configuration.
- PCIe 5.0 Expansion: Six PCIe slots provide bandwidth for compatible accelerators, network adapters, and storage controllers.
- Dual 10GbE Networking: Two Intel 10 Gigabit Ethernet ports support high-throughput network connectivity.
- Integrated Remote Management: ASUS ASMB11-iKVM provides out-of-band server management capabilities.
- Flexible Storage Connectivity: Dual M.2 sockets, MCIO connectors, SATA connectivity, and SlimSAS connectors support compatible storage configurations.
- Dedicated Management LAN: Separate management networking supports remote administration.
- E-ATX Form Factor: Designed for compatible server chassis that accommodate a 12 × 13-inch motherboard.
Technical Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | Z13PE-D16 |
| Product Type | Server Motherboard |
| Form Factor | E-ATX, 12 × 13 inches |
| Chipset | Intel C741 |
| Processor Sockets | 2 × LGA 4677 |
| Processor Compatibility | Compatible 4th and 5th Gen Intel Xeon Scalable processors |
| Maximum Processor TDP | Up to 350W per processor, subject to supported CPU and platform requirements |
| Memory Slots | 16 × DDR5 DIMM |
| Memory Type | ECC RDIMM and supported 3DS RDIMM configurations |
| Maximum Memory Capacity | Up to 4TB, subject to CPU generation and supported DIMM configuration |
| Expansion Slots | 6 × PCIe 5.0 x16 physical slots; five x16 links and one x8 link |
| Network Interfaces | 2 × 10GbE RJ-45 plus 1 dedicated management LAN |
| Storage Interfaces | 2 × M.2, 2 × MCIO, 2 × SATA, 2 × Slimline SAS connectors |
| USB | 2 × USB 3.2 Gen 1 rear ports, plus internal headers |
| Video Output | 1 × VGA |
| Serial Interface | 1 × COM port |
| Remote Management | ASUS ASMB11-iKVM |
| Dimensions (W × D) | 12 × 13 inches (304.8 × 330.2 mm) |
| Net Weight | 1.75 kg (approximately 3.86 lb) |
Applications
- Enterprise Servers: Build compute platforms for business-critical applications and services.
- Virtualization: Support compatible hypervisors and multi-VM server configurations.
- High-Performance Computing: Provide expansion capacity for compatible accelerators and high-speed networking.
- Data Analytics: Support memory-intensive processing and data workloads.
- Storage Servers: Connect compatible storage devices and expansion controllers.
- Cloud Infrastructure: Build server platforms for private cloud and infrastructure services.
Compatibility and Installation
Use a chassis that supports the E-ATX 12 × 13-inch form factor. Select processors from the ASUS CPU support list and install compatible DDR5 ECC registered memory according to the supported CPU generation and DIMM population rules. The system requires an appropriate server power supply, CPU cooling, and chassis airflow for the selected processors and expansion cards. Verify BIOS version, memory compatibility, storage cabling, and the operating system's hardware support before deployment.
Frequently Asked Questions
1. Which processors does the Z13PE-D16 support?
It supports compatible 4th and 5th Gen Intel Xeon Scalable processors using the LGA 4677 socket. Check ASUS's CPU support list for the exact processor model and BIOS requirements.
2. How much memory can it support?
The platform supports up to 4TB with compatible memory and processor configurations. Actual capacity depends on supported DIMM types and CPU generation.
3. Does it support 10Gb Ethernet?
Yes. It includes two 10GbE RJ-45 network ports and a separate management LAN port.
4. How many PCIe expansion slots are available?
It provides six PCIe 5.0 x16 physical slots, with five x16 links and one x8 link.
5. Is a processor or memory included?
The motherboard specification does not imply that processors or memory are included. Confirm the exact seller package contents before ordering.
DC Supplies Product Note
Before purchasing, verify processor generation, memory type, chassis clearance, power delivery, cooling, and expansion-card requirements. The ASUS Z13PE-D16 is a server motherboard intended for compatible server components rather than a complete, ready-to-use server system.
