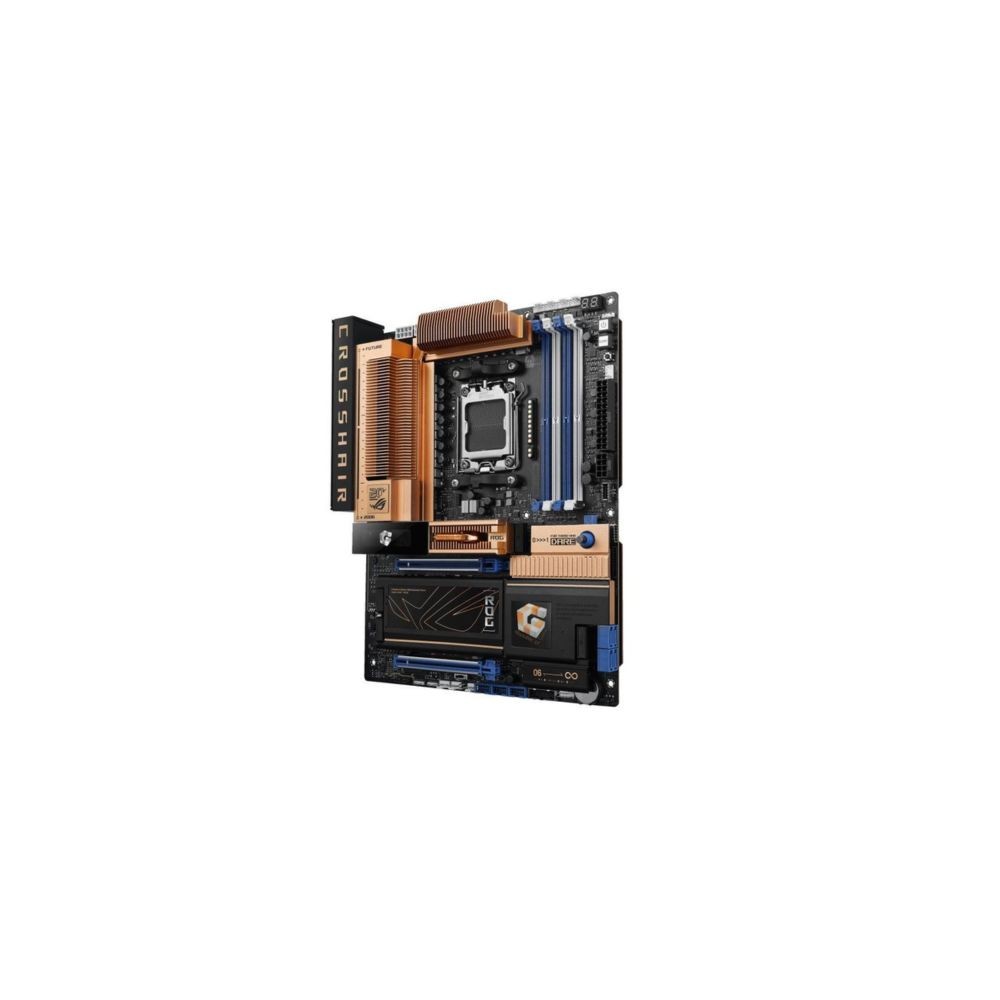

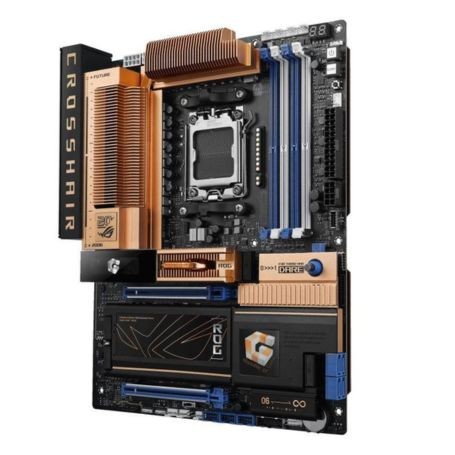

The ASUS ROG Crosshair 2006 is a premium ATX gaming motherboard designed for AMD Ryzen desktop processors. Celebrating 20 years of Republic of Gamers innovation, it combines a distinctive copper-inspired design with an AMD X870E chipset, DDR5 memory support, PCIe 5.0 expansion, advanced networking, and a built-in 2-inch OLED display.
Key Features
- AMD AM5 platform: Supports compatible AMD Ryzen 9000, 8000 and 7000 Series desktop processors, subject to the CPU support list.
- High-performance power delivery: Features a 20+2+2 power-stage configuration with ProCool II power connectors for demanding desktop builds.
- DDR5 memory support: Four DIMM slots support up to 256GB of DDR5 memory, with supported speeds dependent on the processor and memory configuration.
- PCIe 5.0 and M.2 expansion: Includes PCIe 5.0 x16 expansion slots and five onboard M.2 slots for compatible storage devices.
- Premium connectivity and display: Combines Wi-Fi 7, 5Gb Ethernet, 10Gb Ethernet, USB4, and a 2-inch OLED display in a distinctive anniversary design.
Anniversary Design and OLED Display
The ROG Crosshair 2006 pays tribute to the original ROG motherboard with a retro-inspired copper finish accented by blue and white details. Its integrated 2-inch OLED display supports system information such as CPU frequency, temperatures, and fan speeds, as well as customizable graphics and anniversary animations.
Memory and Expansion
Four DDR5 DIMM slots support a maximum memory capacity of 256GB. ASUS memory technologies include NitroPath DRAM Technology, ASUS Enhanced Memory Profile, DIMM Fit, and DIMM Fit Pro. The motherboard provides two PCIe 5.0 x16 slots and five onboard M.2 slots, with supported configurations and bandwidth depending on the installed processor and slot usage.
Networking and Connectivity
Integrated networking includes Wi-Fi 7, a 5Gb Ethernet port, and a 10Gb Ethernet port. Two USB4 Type-C ports support transfer speeds up to 40Gbps. Additional connectivity includes USB 10Gbps ports, front-panel USB-C headers, SATA 6Gb/s connections, HDMI output, and optical S/PDIF audio output.
Cooling and DIY Features
The motherboard incorporates integrated I/O and VRM heatsinks, M.2 heatsinks, multiple four-pin PWM fan headers, and a metal backplate. ASUS Q-Design features simplify selected installation and maintenance tasks through technologies such as M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, Q-Antenna, BIOS FlashBack, and Clear CMOS.
DC Supplies Product Note
The ROG Crosshair 2006 is an ATX motherboard for AMD AM5 processors, not an Intel-platform board. Before purchasing, confirm processor compatibility, DDR5 memory specifications, case clearance, and the available expansion and storage configuration. Actual memory speeds depend on the CPU, memory modules, and system configuration.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG CROSSHAIR 2006 |
|---|
| Product Type | ATX gaming motherboard |
|---|
| Product Series | Republic of Gamers (ROG) |
|---|
| Chipset | AMD X870E |
|---|
| CPU Socket | AMD AM5 |
|---|
| Supported Processors | AMD Ryzen 9000, 8000 and 7000 Series desktop processors, subject to the CPU support list |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 4 × DIMM |
|---|
| Maximum Memory Capacity | 256GB |
|---|
| Memory Architecture | Dual-channel |
|---|
| Expansion Slots | 2 × PCIe 5.0 x16 |
|---|
| M.2 Storage | 5 onboard M.2 slots with supported PCIe 5.0 and PCIe 4.0 configurations |
|---|
| SATA Connectivity | 4 × SATA 6Gb/s |
|---|
| Ethernet | 1 × 5Gb Ethernet and 1 × 10Gb Ethernet |
|---|
| Wireless Networking | Wi-Fi 7 |
|---|
| USB4 | 2 × USB4 Type-C, up to 40Gbps |
|---|
| Additional USB Connectivity | USB 10Gbps ports and front-panel USB-C headers, including USB 20Gbps support |
|---|
| Display Output | 1 × HDMI and display output through USB4, subject to processor capabilities |
|---|
| Audio | ROG SupremeFX ALC4082 codec, ESS ES9219 Quad DAC, optical S/PDIF output |
|---|
| Onboard Display | 2-inch OLED |
|---|
| Power Delivery | 20+2+2 power stages |
|---|
| Cooling Features | VRM heatsinks, M.2 heatsinks, multiple four-pin PWM fan headers |
|---|
| Lighting | ASUS Aura Sync support and addressable Gen 2 RGB headers |
|---|
| Form Factor | ATX |
|---|
| Dimensions | 30.5 × 24.4 cm (12 × 9.6 inches) |
|---|
| Operating System | Windows 11 |
|---|
Frequently Asked Questions
Which processors are compatible with the ROG Crosshair 2006?
The motherboard uses the AMD AM5 socket and supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors. Check ASUS's CPU support list for the exact processor and BIOS requirements.
How much memory does the motherboard support?
It has four DDR5 DIMM slots and supports up to 256GB of memory. Supported speeds depend on the processor and memory configuration.
Does the motherboard support PCIe 5.0?
Yes. It features two PCIe 5.0 x16 expansion slots and onboard M.2 storage with PCIe 5.0 support in specified configurations.
What networking options are included?
Integrated networking includes Wi-Fi 7, 5Gb Ethernet, and 10Gb Ethernet.
What is the purpose of the OLED display?
The 2-inch OLED can show system information, including CPU frequency, temperatures, and fan speeds, and supports customizable graphics and anniversary animations.
What case size is required?
The ROG Crosshair 2006 uses the ATX form factor. Select a case that supports ATX motherboards and provides sufficient clearance for the intended cooling and expansion hardware.
