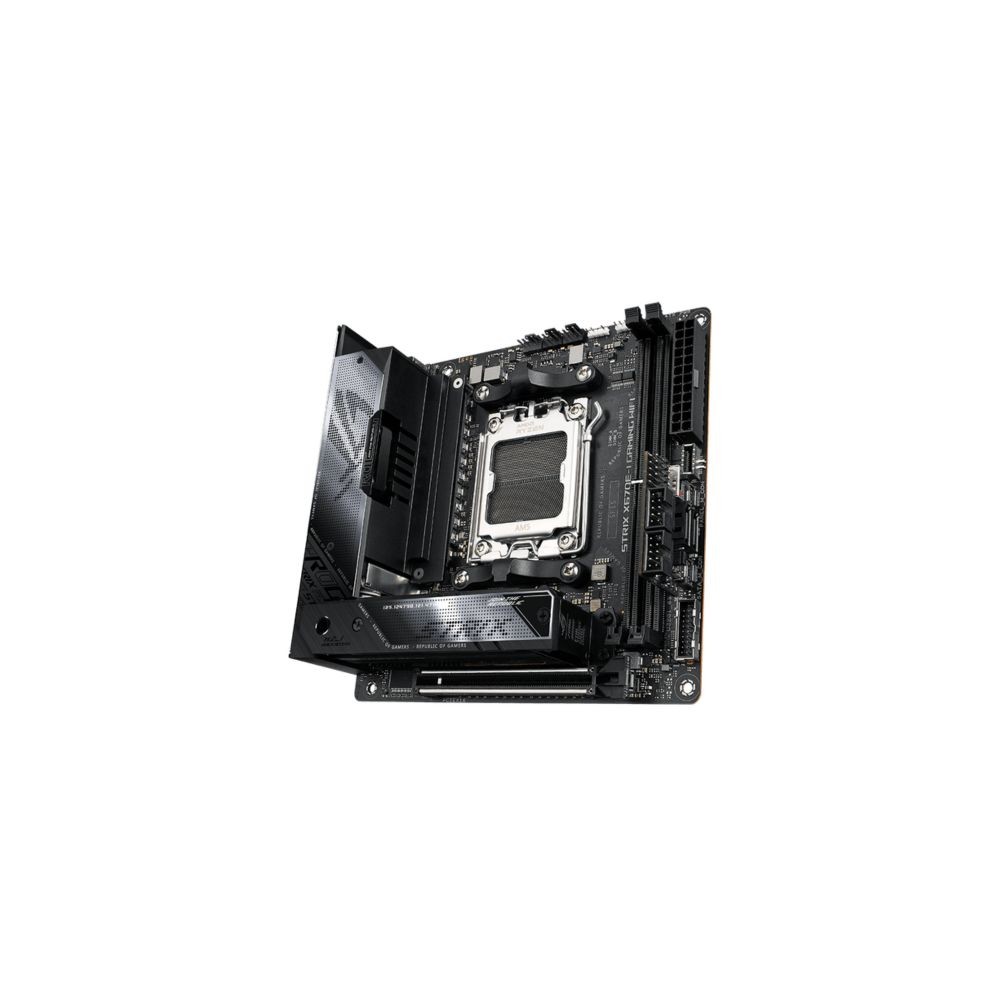

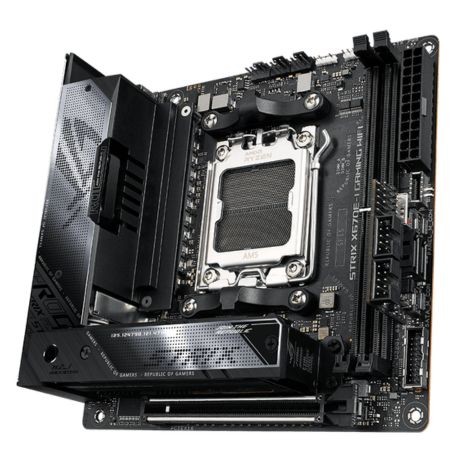

The ASUS ROG STRIX X670E-I GAMING WIFI is a compact Mini-ITX motherboard designed for performance-focused desktop systems built around compatible AMD Ryzen processors. Powered by the AMD X670 chipset and AM5 socket, it combines DDR5 memory support, PCIe 5.0 graphics expansion, next-generation storage connectivity, and integrated Wi-Fi 6E. Its compact footprint, robust power delivery, and external ROG STRIX HIVE control hub make it suitable for space-conscious gaming and enthusiast PC builds.
Key Features
- AMD AM5 Platform: Supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors, subject to CPU support and BIOS requirements.
- DDR5 Memory: Two DIMM slots support dual-channel DDR5 memory up to 96GB, with supported overclocked speeds depending on the processor and memory configuration.
- PCIe 5.0 Graphics: Features a reinforced PCIe 5.0 x16 expansion slot for compatible graphics cards.
- High-Speed Storage: Includes two M.2 slots, with PCIe 5.0 x4 support for the primary M.2 slot and PCIe 4.0 x4 support for the secondary slot.
- Compact Connectivity: Integrates Wi-Fi 6E, Bluetooth 5.2, Intel 2.5Gb Ethernet, and two USB4 Type-C ports, alongside the ROG STRIX HIVE external control hub.
Processor and Memory Support
The AMD X670 chipset and AM5 socket support compatible Ryzen 9000, 8000, and 7000 Series desktop processors. Check the ASUS CPU support list and required BIOS version before installing a processor.
Two DDR5 DIMM slots provide dual-channel memory operation with a maximum listed capacity of 96GB. The motherboard supports memory overclocking profiles and ASUS OptiMem II technology. Achievable memory speeds depend on the processor, memory kit, BIOS settings, and system configuration.
Graphics and Expansion
The reinforced PCIe 5.0 x16 slot provides expansion for compatible graphics cards. This Mini-ITX design prioritizes a single primary expansion slot to maintain a compact layout while supporting modern graphics hardware.
Storage Options
Two M.2 slots support high-speed NVMe storage. The primary M.2_1 slot supports PCIe 5.0 x4 drives, while M.2_2 supports PCIe 4.0 x4 drives in compatible lengths. Two SATA 6Gb/s connections are also available through the included ROG FPS-II card.
AMD RAIDXpert2 supports RAID 0 and RAID 1 configurations for compatible NVMe and SATA storage. Review the motherboard manual for installation instructions and supported drive configurations.
Networking and USB Connectivity
Integrated Wi-Fi 6E supports compatible 2.4GHz, 5GHz, and 6GHz wireless networks. Bluetooth 5.2 provides connectivity for compatible peripherals, while Intel 2.5Gb Ethernet offers a wired networking option.
The rear panel provides two USB4 Type-C ports, five USB 3.2 Gen 2 Type-A ports, and three USB 2.0 Type-A ports. The USB4 ports support data transfer up to 40Gbps and compatible DisplayPort video output. Additional front-panel USB connectivity is available through internal motherboard headers and the ROG STRIX HIVE.
ROG STRIX HIVE Control Hub
The included ROG STRIX HIVE is an external control and connectivity hub designed to make selected motherboard functions easier to access. It provides USB connectivity, audio connections, BIOS FlashBack control, volume adjustment, and an EZ Mode PBO button. This arrangement helps make important controls more accessible when building in a compact case.
Audio and Cooling
The motherboard's audio system uses the ROG High Definition Audio ALC4050 codec and ESS SABRE9260Q DAC, with supported audio functions accessed through the ROG STRIX HIVE. Features include high-quality audio playback, microphone connectivity, and optical S/PDIF output.
Thermal features include VRM heatsinks, M.2 and chipset cooling, an active chipset fan, a CPU fan header, an AIO pump header, and a chassis fan header. These features help accommodate cooling needs within a compact Mini-ITX build.
DC Supplies Product Note
The ASUS ROG STRIX X670E-I GAMING WIFI combines a compact Mini-ITX layout with PCIe 5.0 graphics and storage support, DDR5 memory, Wi-Fi 6E, and dual USB4 ports. Before purchase, confirm processor and BIOS compatibility, case clearance, memory requirements, and the cooling arrangement for your planned system.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX X670E-I GAMING WIFI |
|---|
| Product Type | Mini-ITX Desktop Motherboard |
|---|
| CPU Socket | AMD AM5 |
|---|
| Chipset | AMD X670 |
|---|
| Processor Support | Compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors; CPU and BIOS support must be verified |
|---|
| Memory Type | DDR5, ECC and non-ECC unbuffered memory support as specified by ASUS |
|---|
| Memory Slots | 2 DIMM slots, dual-channel architecture |
|---|
| Maximum Memory Capacity | 96GB |
|---|
| Memory Speed | Up to 8000+ MT/s (OC), depending on processor and memory configuration |
|---|
| Memory Features | Memory overclocking profiles, ASUS OptiMem II |
|---|
| Expansion Slot | 1 x PCIe 5.0 x16 |
|---|
| M.2 Storage | 2 slots: 1 x PCIe 5.0 x4 (M.2_1, 2280); 1 x PCIe 4.0 x4 (M.2_2, 2242/2260/2280) |
|---|
| SATA Connectivity | 2 x SATA 6Gb/s through the included ROG FPS-II card |
|---|
| RAID Support | AMD RAIDXpert2, RAID 0 and RAID 1 for supported NVMe and SATA configurations |
|---|
| Wired Networking | Intel 2.5Gb Ethernet with ASUS LANGuard |
|---|
| Wireless Networking | Wi-Fi 6E, 2x2, supporting 2.4GHz, 5GHz, and 6GHz bands |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
| Audio | ROG High Definition Audio ALC4050 codec with ESS SABRE9260Q DAC; audio functions accessed through ROG STRIX HIVE |
|---|
| Video Outputs | 1 x HDMI 2.1; 2 x USB4 Type-C with DisplayPort output support. Display functionality depends on the compatible graphics source. |
|---|
| Rear USB Connectivity | 2 x USB4 Type-C, 5 x USB 3.2 Gen 2 Type-A, 3 x USB 2.0 Type-A |
|---|
| Front USB Connectivity | 1 x USB 3.2 Gen 2 Type-C connector; 1 x USB 3.2 Gen 1 header supporting 2 ports |
|---|
| ROG STRIX HIVE | External control hub with USB Type-C connectivity, USB Type-A, audio connections, volume control, PBO button, and BIOS FlashBack button |
|---|
| Power Design | 10 + 2 power stages with ProCool II power connector |
|---|
| Cooling Features | VRM heatsinks, M.2 and chipset heatsinks, active chipset fan |
|---|
| Fan Headers | 1 x CPU fan, 1 x AIO pump, 1 x chassis fan |
|---|
| Form Factor | Mini-ITX |
|---|
| Dimensions | 17 x 17 cm (6.7 x 6.7 inches) |
|---|
| Operating System Support | Windows 11 and Windows 10 64-bit, as listed by ASUS |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. Check the official ASUS CPU support list for the exact processor and BIOS requirements.
Does the motherboard support DDR4 memory?
No. The ROG STRIX X670E-I GAMING WIFI uses DDR5 memory and is not compatible with DDR4 DIMMs.
How many M.2 SSDs can be installed?
Two M.2 SSDs can be installed. The primary slot supports PCIe 5.0 x4, while the secondary slot supports PCIe 4.0 x4. Drive length compatibility depends on the slot.
Does the motherboard include Wi-Fi?
Yes. Wi-Fi 6E and Bluetooth 5.2 are integrated. Availability of the 6GHz Wi-Fi band depends on local regulations and compatible network equipment.
What is the ROG STRIX HIVE?
The ROG STRIX HIVE is an included external control hub that provides convenient access to selected controls, audio connections, USB ports, and BIOS FlashBack functionality.
Which PC cases are compatible?
The motherboard uses the Mini-ITX form factor and measures 17 x 17 cm. Choose a case that supports Mini-ITX motherboards and provides sufficient clearance for the graphics card, CPU cooler, and other components.
