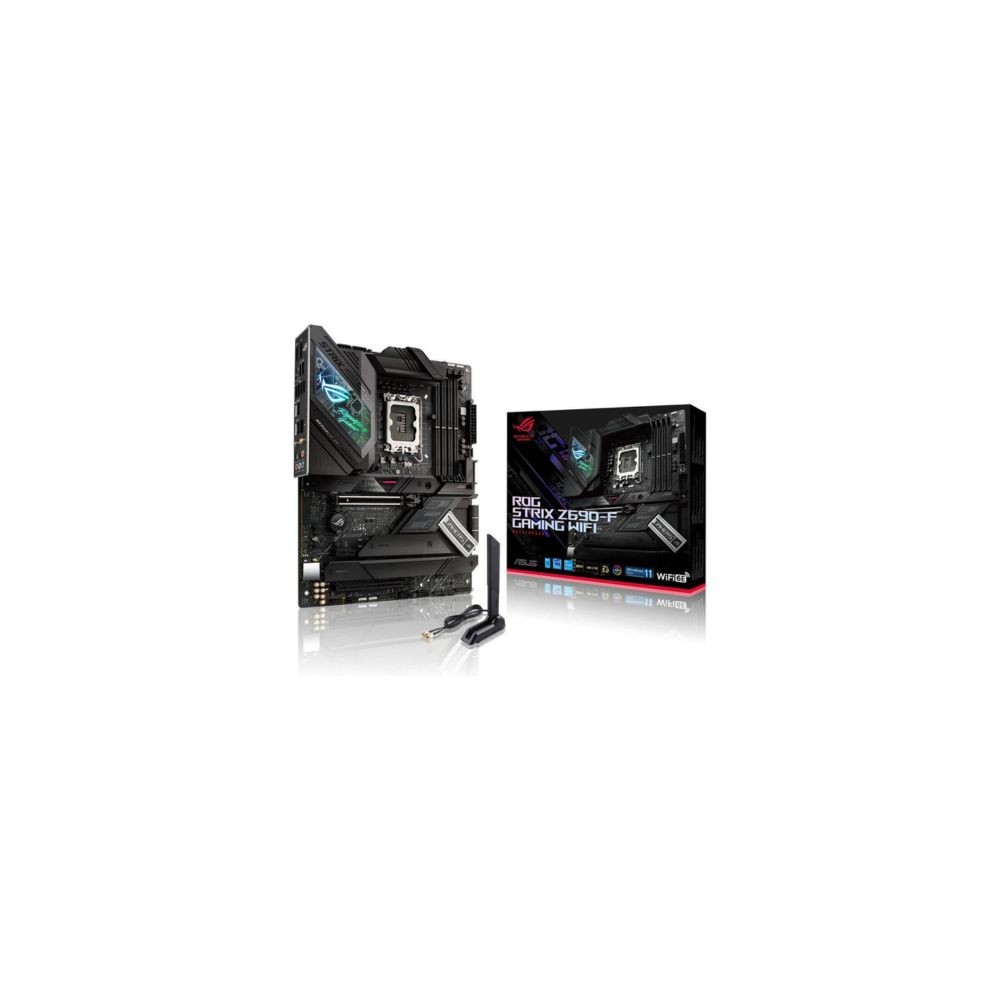

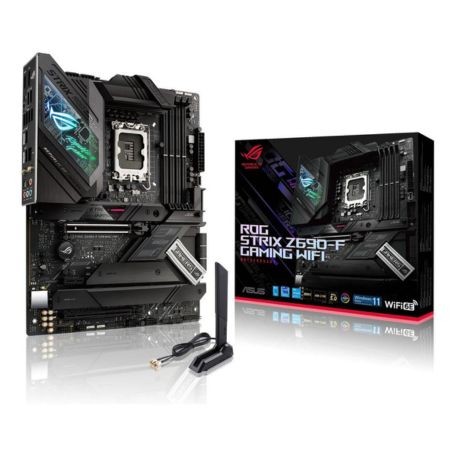

The ASUS ROG STRIX Z690-F GAMING WIFI is an ATX motherboard designed for gaming and performance-oriented desktop computers. Built around the Intel Z690 chipset and LGA1700 socket, it supports compatible Intel processors, DDR5 memory, PCIe 5.0 graphics expansion, and high-speed NVMe storage. Integrated Wi-Fi 6E, 2.5Gb Ethernet, and ROG SupremeFX audio provide versatile connectivity for modern PC builds.
Key Features
- Intel Z690 Platform: Supports compatible Intel Core 12th and 13th Generation desktop processors, along with supported Pentium Gold and Celeron processors.
- DDR5 Memory Support: Four DIMM slots support dual-channel DDR5 memory up to 192GB, with Intel XMP and ASUS OptiMem II technology.
- PCIe 5.0 Graphics Expansion: Includes a PCIe 5.0 x16 slot for compatible graphics cards and additional expansion slots for supported components.
- Four M.2 Slots: Provides four M.2 storage slots, including PCIe 4.0 x4 support, plus six SATA 6Gb/s ports for additional storage devices.
- Modern Connectivity: Features Intel Wi-Fi 6E, Bluetooth 5.2, Intel 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, and ROG SupremeFX audio.
Processor and Memory Support
The Intel Z690 chipset and LGA1700 socket support compatible Intel Core 12th and 13th Generation desktop processors, as well as supported Pentium Gold and Celeron processors. Check the official ASUS CPU support list and BIOS requirements to confirm compatibility with your selected processor.
Four DDR5 DIMM slots provide dual-channel memory support with a maximum capacity of 192GB. Intel Extreme Memory Profile (XMP) allows compatible memory kits to use supported performance profiles, while ASUS OptiMem II helps optimize memory signal routing. Achievable memory speeds depend on the processor, memory kit, and system configuration.
Graphics and Expansion
The primary PCIe 5.0 x16 slot supports compatible graphics cards. Additional expansion is provided by a chipset-connected PCIe 3.0 x16 slot, which supports x4 operation or supported x4/x4 bifurcation, and a PCIe 3.0 x1 slot.
ASUS SafeSlot reinforcement provides additional support for compatible expansion cards. Review the motherboard manual for slot configuration and lane-sharing details before installing multiple expansion devices.
Storage Options
Four M.2 slots support compatible SSDs using PCIe 4.0 x4 interfaces, with the fourth slot also supporting SATA-mode M.2 drives. Drive lengths supported vary by slot. Six SATA 6Gb/s connectors provide further storage options for compatible SATA SSDs and hard drives.
Intel Rapid Storage Technology supports RAID configurations for compatible NVMe and SATA storage devices. Supported RAID levels and port restrictions should be checked in the official motherboard documentation before configuring a storage array.
Networking and USB Connectivity
Integrated Intel Wi-Fi 6E supports compatible 2.4GHz, 5GHz, and 6GHz wireless networks. Bluetooth 5.2 hardware supports compatible wireless peripherals, while Intel 2.5Gb Ethernet provides a high-speed wired networking option.
The rear I/O panel includes USB 3.2 Gen 2x2 Type-C, additional USB 3.2 Gen 2 Type-A and Type-C ports, USB 3.2 Gen 1 Type-A ports, USB 2.0 ports, HDMI, DisplayPort, audio jacks, and optical S/PDIF output. Internal headers provide additional USB connections for compatible PC cases.
Audio and Cooling
ROG SupremeFX audio uses the ALC4080 codec and Savitech SV3H712 amplifier, with support for up to 32-bit/384kHz playback. Additional audio features include shielding technology, gold-plated audio jacks, and optical S/PDIF output.
The motherboard incorporates VRM and M.2 cooling solutions, an AIO pump header, CPU and CPU OPT fan headers, and five chassis-fan headers. ASUS Aura Sync and addressable RGB headers support lighting customization with compatible components.
DC Supplies Product Note
The ASUS ROG STRIX Z690-F GAMING WIFI combines DDR5 memory support, PCIe 5.0 graphics expansion, four M.2 slots, Wi-Fi 6E, and 2.5Gb Ethernet in an ATX design. Before purchase, verify processor and BIOS compatibility, memory requirements, storage interfaces, and case support to ensure the motherboard meets your build specifications.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX Z690-F GAMING WIFI |
|---|
| Product Type | ATX Desktop Motherboard |
|---|
| CPU Socket | Intel LGA1700 |
|---|
| Chipset | Intel Z690 |
|---|
| Processor Support | Compatible Intel Core 12th and 13th Generation desktop processors, plus supported Pentium Gold and Celeron processors |
|---|
| Memory Type | DDR5, non-ECC, unbuffered |
|---|
| Memory Slots | 4 DIMM slots, dual-channel architecture |
|---|
| Maximum Memory Capacity | 192GB |
|---|
| Memory Speed | Up to DDR5-6400 MT/s (OC), depending on configuration |
|---|
| Memory Features | Intel XMP, ASUS OptiMem II |
|---|
| Primary Expansion Slot | 1 x PCIe 5.0 x16 |
|---|
| Additional Expansion Slots | 1 x PCIe 3.0 x16 (x4 or supported x4/x4 mode); 1 x PCIe 3.0 x1 |
|---|
| M.2 Storage | 4 x M.2 slots; PCIe 4.0 x4 support, with SATA mode supported on M.2_4 |
|---|
| SATA Connectivity | 6 x SATA 6Gb/s |
|---|
| RAID Support | Intel Rapid Storage Technology; NVMe RAID 0/1/5 and SATA RAID 0/1/5/10, subject to supported configuration |
|---|
| Wired Networking | Intel 2.5Gb Ethernet |
|---|
| Wireless Networking | Intel Wi-Fi 6E, 2x2, supporting 2.4GHz, 5GHz, and 6GHz bands |
|---|
| Bluetooth | Bluetooth 5.2 hardware-ready |
|---|
| Audio | ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier |
|---|
| Video Outputs | 1 x DisplayPort 1.4; 1 x HDMI 2.1. Display output depends on the installed processor's graphics capabilities. |
|---|
| Rear USB Connectivity | 10 ports: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 (2 Type-A and 1 Type-C), 4 x USB 3.2 Gen 1 Type-A, and 2 x USB 2.0 Type-A |
|---|
| Front USB Connectivity | 1 x USB 3.2 Gen 2x2 Type-C connector, 1 x USB 3.2 Gen 1 header supporting 2 ports, and 2 x USB 2.0 headers supporting 4 ports |
|---|
| Cooling Headers | 1 x CPU fan, 1 x CPU OPT fan, 1 x AIO pump, 5 x chassis fan |
|---|
| Power Connectors | 1 x 24-pin main power, 2 x 8-pin +12V CPU power |
|---|
| Form Factor | ATX |
|---|
| Dimensions | 30.5 x 24.4 cm (12 x 9.6 inches) |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
The motherboard supports compatible Intel Core 12th and 13th Generation desktop processors, along with supported Pentium Gold and Celeron processors. Check the ASUS CPU support list for exact model and BIOS requirements.
Does the ROG STRIX Z690-F GAMING WIFI support DDR4?
No. This model uses DDR5 memory and is not compatible with DDR4 DIMMs.
How many M.2 SSDs can be installed?
Four M.2 drives can be installed. The slots support PCIe 4.0 x4 storage, and M.2_4 also supports SATA-mode M.2 drives. Check the supported drive lengths for each slot.
Does the motherboard include Wi-Fi?
Yes. Intel Wi-Fi 6E and Bluetooth 5.2 hardware are integrated. Access to the 6GHz Wi-Fi band depends on local regulations and compatible software and networking equipment.
Can the motherboard provide video output without a dedicated graphics card?
The board includes HDMI and DisplayPort outputs, but their operation depends on the installed processor having compatible integrated graphics.
Which PC cases are compatible?
The motherboard uses the ATX form factor and measures approximately 30.5 x 24.4 cm. Select a case that supports ATX motherboards and provides sufficient clearance for the remaining components.
